Gas Diesel Fired Thermal Oil Boiler
Dear Customer:
Welcome to our website and hope our products will make you satisfied .
We think creatively,design bravely,manufacture precisely and loyalty to
our customers. And we have our own We can produce the products
according to customer requirements .
Give us a negotiate chance will yield you a surprise .
Yours
EPCB
Product Data (part of the data,if you need more, contact me)
YY(Q)W Type of Horizontal Oil(gas)-fired Thermal Oil Heater | ||||||||||||
Model |
Y(Q)W-180-Y(Q) |
Y(Q)W-350-Y(Q) |
Y(Q)W-600-Y(Q) |
Y(Q)W-1200-Y(Q) |
Y(Q)W-1800-Y(Q) |
Y(Q)W-2400-Y(Q) |
Y(Q)W-3000-Y(Q) |
Y(Q)W-4000-Y(Q) |
Y(Q)W-6000-Y(Q) |
Y(Q)W-9600-Y(Q) |
Y(Q)W-12000-Y(Q) |
|
Rated Thermal Power |
KW |
180 |
350 |
600 |
1200 |
1800 |
2400 |
3000 |
4000 |
6000 |
9600 |
12000 |
x104 kcal/h |
15 |
30 |
50 |
100 |
150 |
200 |
250 |
350 |
500 |
800 |
1000 |
|
Design Thermal Efficiency(%) |
>=83% |
|||||||||||
Rated Working pressure(MPa) |
1.0 |
|||||||||||
Max. Working temperature('C) |
320 |
|||||||||||
Thermal Oil Capacity(m3) |
0.15 |
0.32 |
0.44 |
0.86 |
1.48 |
2.2 |
3.5 |
4.9 |
7.2 |
9.6 |
12.6 |
|
Circulation oil capacity (m3/h) |
18 |
30 |
60 |
100 |
150 |
200 |
200 |
230 |
300 |
500 |
580 |
|
60# heavy oil (kg/h) |
20 |
40.2 |
67 |
134 |
203 |
270 |
338 |
472 |
672 |
1080 |
1350 |
|
Diesel (kg/h) |
19 |
39 |
65 |
130 |
196 |
260 |
326 |
454 |
650 |
1043 |
1302 |
|
Natural gas (Nm3/h) |
23 |
47 |
79 |
158 |
236 |
315 |
395 |
555 |
790 |
1265 |
1583 |
|
Liquefied petroleum gas (Nm3/h) |
7.7 |
15.3 |
26 |
51 |
77 |
103.5 |
130 |
178 |
260 |
415 |
521 |
|
Max. transport size |
L (mm) |
1500 |
2300 |
2920 |
4100 |
4400 |
4700 |
4980 |
6190 |
6480 |
6850 |
7100 |
W (mm) |
1100 |
1450 |
1560 |
2000 |
2300 |
2600 |
2650 |
2920 |
3150 |
3780 |
4050 |
|
H (mm) |
1500 |
1680 |
1790 |
2250 |
2850 |
2850 |
3150 |
3360 |
3400 |
4260 |
4600 |
|
Class A boiler manufacture ASME, GB, CE, GOST, AS standard.
Specification
1.Large heating surface thermal oil boiler thermal oil boiler
2.High thermal efficiency hot oil boiler hot oil boiler
3.Precise temp. control China manufacturer oil gas boiler hot oil boiler thermal oil boiler
4.Clean combustion, less pollution China manufacturer oil gas boiler hot oil boiler thermal oil boiler
Description
This series of heat conduction furnace is with compact structure, stylish design,good performance and simple operation. Hence, it is widely used in such industries
as textiles, printing, chemicals, plastics, painting, synthetic fibers manufacturing,rubber production, shipbuilding and foodstuff processing.
1. The system of thermal oil boiler is more sample than steam boiler.
2. The position between the burner joint and the coil is sealed with good seal, large flexible space, to increase the service life of burner and enhance the heating efficiency.
3. It adopts perfect running control and safety monitoring device with safety, reliability and easy operation.
4. Fast packaged or assembled for shipment with easy transportation, short installation period, and fast return of Investment.
5. The boiler features heat preservation performance with high-efficiency heat preservation material and state-of-the-art construction technology, lower radiating loss of boiler wall.
6. Fast temperature rise, high thermal efficiency, with overload capacity at a certain degree to ensure output of boiler.
7. No black smoke escapes to help achievement of environmental protection.
8. Outstanding energy-saving effect, saving energy by 10-15% compared with similar products, return of investment for the equipment in the whole boiler room may be attained by capital of saved energy for one year operation.
Features of Thermal Oil Boiler
1.Geting higher temperature in low working pressure as hot oil
2.Stable heating, and specific temperature adjustment
3.Keep highest heat efficient in different level
4.Full safety detection devices
5.Saving 50% energy than steam heating
6.Highest Investment Benefit

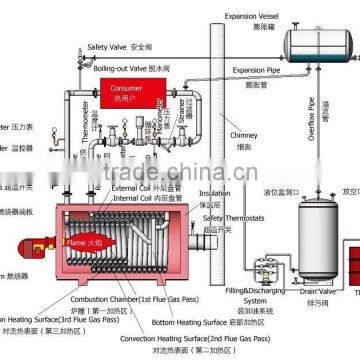

Internal Structure
We assure you will be benefited with following
• Competitive price, quick delivery, excellent performance & prompt sales after service.
•All equipments are designed, manufactured & tested to achieve maximum efficiency.
•Total service given from selection to commissioning, supply of accessories, spares& pipelines, maintenance & repairs.
Advantage
1.Class A boiler manufacturer
2.One Year Gurantee
3.Good After-Sale
4.Petrochina supplier

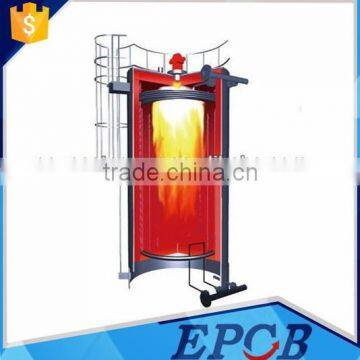

Thermal Oil Boiler Design Structure
1. Adoption of automatic temperature control function is made to achieve stable heating and precise temperature adjustment, which may meet different requirements.
2. It adopts perfect running control and safety monitoring device with safety, reliability and easy operation.
3. Fast packaged or assembled for shipment with easy transportation, short installation period, and fast return of Investment.
4. The boiler features heat preservation performance with high-efficiency heat preservation material and state-of-the-art construction technology, lower radiating loss of boiler wall.
5. Fast temperature rise, high thermal efficiency, with overload capacity at a certain degree to ensure output of boiler.
6. Outstanding energy-saving effect, saving energy by 10-15% compared with similar products, return of investment for the equipment in the whole boiler room may be attained by capital of saved energy for one year operation.

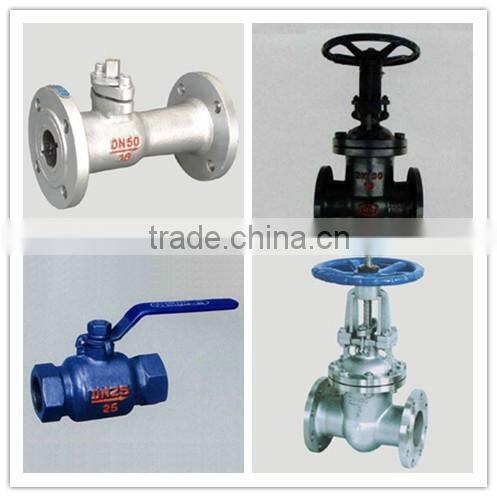

Valves
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent that can choose the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way after installation of the boiler mainly parts.
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choose our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
|
|
| Natural Circulation Oil Natural Gas Boilers, Hot Water Boilers | Wood Boilers, Wood Pellet Boilers, Steam Boilers |
|
|
| YY(Q)L Series Oil Gas Fired Thermal Oil Boiler | Wood logs fixed grate boilers steam boilers |
