New and Clean China Manufacturer Horizontal Automatic Oil Boiler
Grade A Manufacturer Horizontal Oil Gas Dual Fuel Thermal Oil Boiler for Industry Production lines

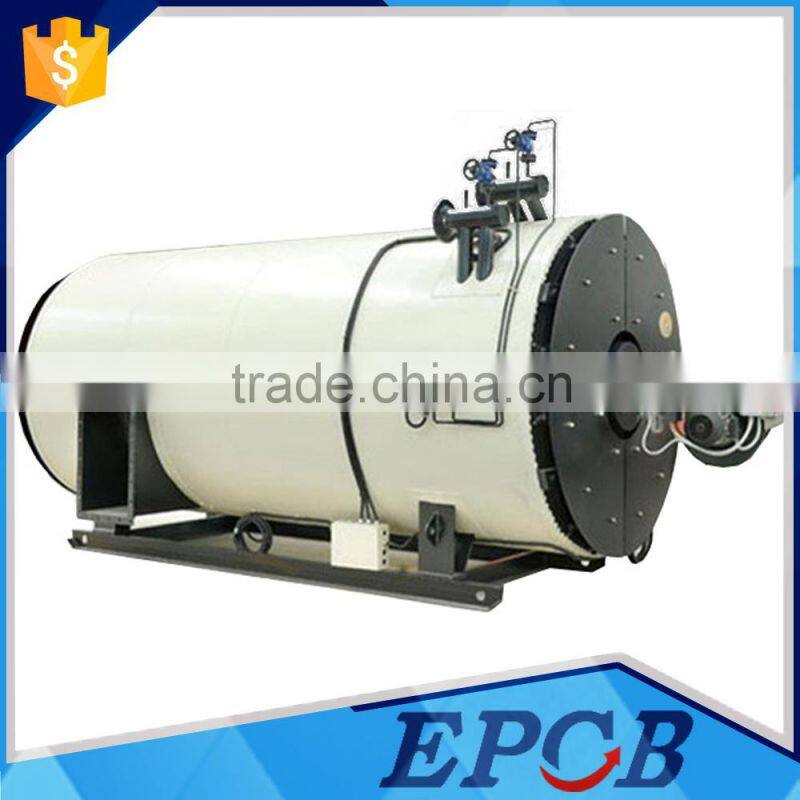

New and Clean China Manufacturer Horizontal Automatic Oil Boiler
♣High heating efficiency
♣Compact design and space-saving
♣Operation safety
♣Precise temperature control
♣Nice combustion effect
Main Technical Parameters
| Rated thermal power | KW | 180 | 240 | 350 | 600 | 700 | 870 | 1200 | 1400 | 1800 | 2400 | 3000 | 3500 | 4000 | 4600 | 6000 | 7000 | 9600 | 12000 |
| ×104 kcal/h | 15 | 20 | 30 | 50 | 60 | 75 | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 800 | 1000 | |
| Designed thermal efficiency (%) | ≥85 | ||||||||||||||||||
| Rated working pressure (Mpa) | 1 | ||||||||||||||||||
| Maximum operating temperature (°C) | 350 | ||||||||||||||||||
| Hot kerosene capacity (m³) | 0.2 | 0.2 | 0.4 | 0.6 | 0.9 | 1 | 1.35 | 1.62 | 1.85 | 2.16 | 2.73 | 3.45 | 3.84 | 4.45 | 5.46 | 6.54 | 8.93 | 11.56 | |
| Circulation oil capacity (m³/h) | 13 | 18 | 30 | 50 | 50 | 60 | 100 | 100 | 100 | 160 | 200 | 230 | 230 | 250 | 300 | 400 | 500 | 600 | |
| The main thermal coal caliber (mm) | 50 | 50 | 80 | 100 | 100 | 125 | 125 | 125 | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 300 | 350 | |
| System-wide installed capacity(oil) KW | 11 | 12 | 14 | 22 | 22 | 40 | 40 | 40 | 40 | 66 | 85 | 85 | 85 | 85 | 100 | 100 | 150 | 150 | |
| System-wide installed capacity(gas) KW | 11 | 17 | 17 | 27 | 28 | 40 | 40 | 40 | 45 | 70 | 70 | 85 | 85 | 85 | 100 | 100 | 150 | 150 | |
| 60#heavy oil (Kg/h) | 20 | 27 | 41 | 68 | 81 | 102 | 135 | 162 | 203 | 270 | 338 | 406 | 473 | 541 | 676 | 812 | 1082 | 1353 | |
| Diesel fuel (Kg/h) | 20 | 26 | 39 | 65 | 78 | 98 | 130 | 156 | 196 | 261 | 326 | 392 | 457 | 522 | 653 | 784 | 1045 | 1307 | |
| Natural gas (Nm³/h) | 23 | 31 | 47 | 79 | 95 | 119 | 158 | 190 | 238 | 317 | 396 | 476 | 555 | 635 | 793 | 952 | 1269 | 1587 | |
| Liquefied petroleum gas (Nm³/h) | 7.8 | 10 | 16 | 26 | 31 | 39 | 52 | 62.5 | 78 | 104 | 130 | 156 | 182 | 208 | 260 | 312 | 416 | 520 | |
| City Gas (Nm³/h) | 50 | 66 | 100 | 166 | 200 | 250 | 333 | 400 | 500 | 666 | 833 | 1000 | 1166 | 1333 | 1666 | 2000 | 2666 | 3333 | |
Q: Are you manufactuerer?
A: Yes, we are manufactuere. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
