Specifications

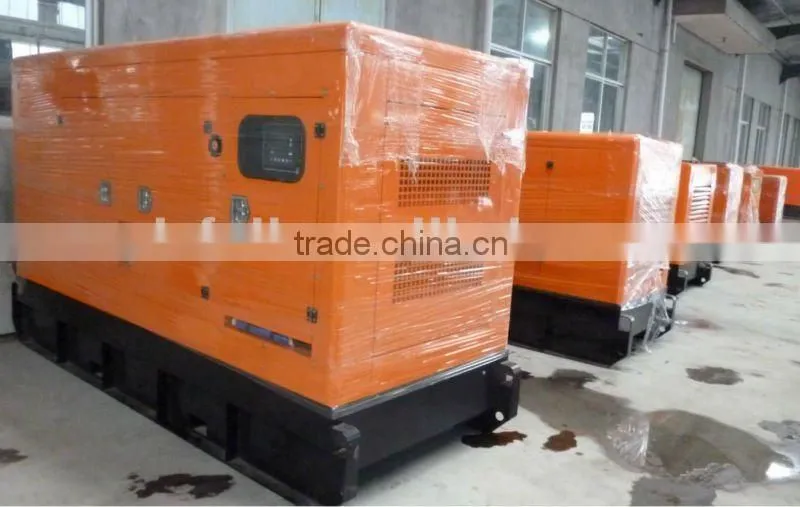

High performances electric generators1.CE ISO EPA SONCAP
2.Delivery:30days
3.Power:47kw,high performance
4.Guaranty:1 YEAR
| Genset Model | BM54YM6(60Hz) |
| Prime Power(Kva/Kw) | 39Kw/49Kva(60Hz) |
| Engine Model | YANMAR 4TNV106 |
| Alternator Model | UCI224D(60Hz) |
| Speed Control type | Centrifugal-all speed governor |
| Phase | Three |
| Fuel Tank Capacity | 220L |
| System Voltage | 12V |
| Frequency | 50/60 Hz |
| Fuel injection pump | Bosch in-line, Yanmar made |
| Emission level | Stage 4 |
| Dimension(L*W*H mm) | |
| Open Type | 1910*730*1170 |
| Silent Type | 2250*740*1150 |
| Engine Detail | |
| Model | YANMAR 4TNV106 |
| Maximum output(kw) | 58.7KW(60Hz) |
| Number of Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Cycle | 4 |
| Fuel Type | Diesel |
| Combustion Type | Indirect Injection |
| Cooling Type | Water cooled |
| Coolant Capacity | 6liter |
| Lubrication Capacity | 14 liter |
| Bore*Stroke | 106*125mm |
| Displacement | 4.412 L |
| Compression ratio | 18:01 |
| Alternator Detail | |
| Model | UCI224D(60Hz) |
| Insulation | Clase"H" |
| Execitation Type | Self-excitation |
| Protection class | IP23 |

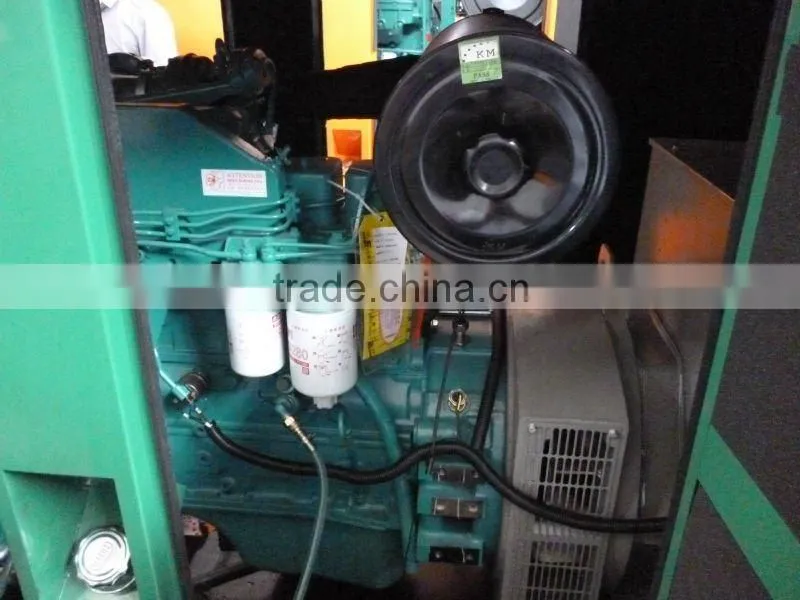

1) Brand-new engine,w/start motor.

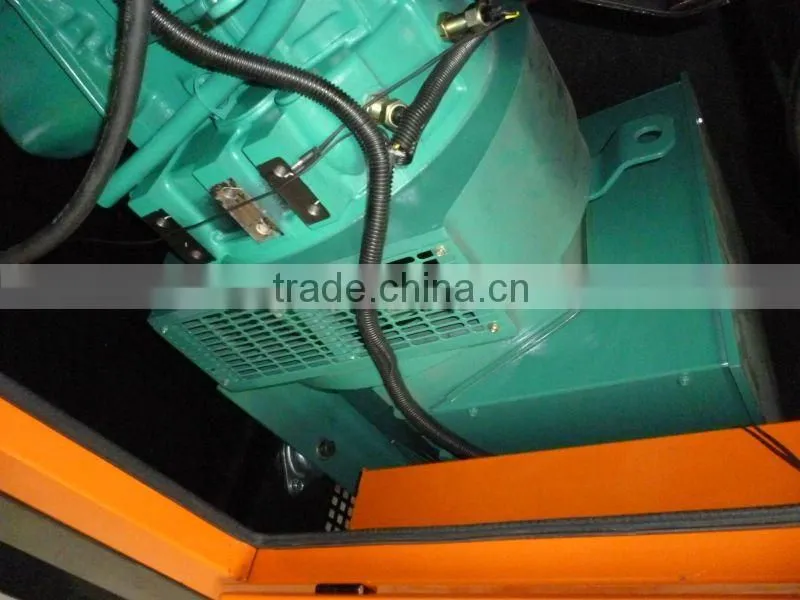

2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard
and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete
genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.
Guaranty:
Guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, our Boomaster will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for genset
MOQ |
1 set |
Delivery Clause |
FOB Fuzhou |
Terms of payment |
T/T, L/C at sight |
.Leading Professional manufacturer of power generator
.Certification:CE EPA ISO IEC
.Fast delivery:we will do our best to meet your requirement when you need it.
.Product quality :Famous high quality engine.we offer spare parts.
.OEM is warmly welcomed
