30kva Air Cooled Generator With Deutz Engine
US$ 999 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Duetz
Model Number:
BD-30
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24kw Deutz Air Cooled GeneratorUS$ 999 - 9,999MOQ: 1 Set -
15kw Deutz Air Cooled GeneratorUS$ 999 - 9,999MOQ: 1 Set
-
10kw Air Cooled Generator With Deutz EngineUS$ 999 - 9,999MOQ: 1 Set
-
70kw Diesel Generator With Air Cooled DeutzUS$ 10,000 - 11,000MOQ: 1 Set
-
75kva Deutz Diesel Generator (air Cooled)US$ 6,400 - 6,500MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Duetz
Model Number
BD-30
Output Type
AC Three Phase
Speed
1500
Frequency
50
Rated Power
24kw
Rated Voltage
220/380V
Rated Current
30A
Specifications
30kva air cooled generator with Deutz engine1.Duetz engine
2.Stamford alternator
3.open type avai

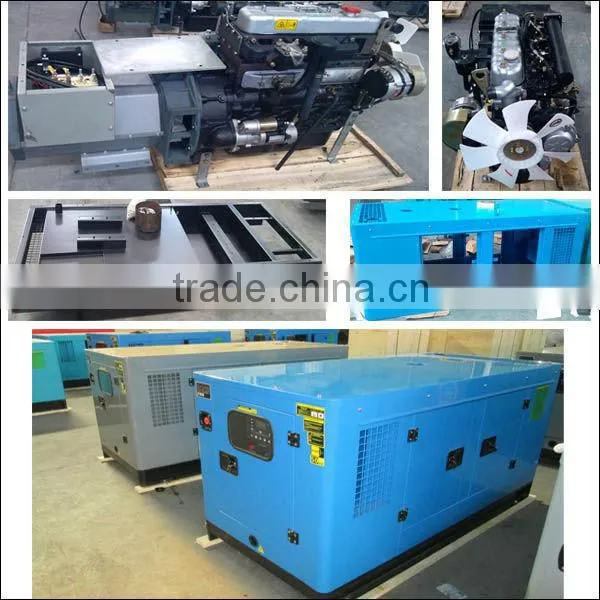

30kva air cooled generator with Deutz engine
Genset specification
| 24kw/30kva Deutz diesel generator | |
| Genset Specification | |
| Genset Model | BC-30 |
| Prime Power(Kw/Kva) | 24/30 |
| Standby power(kw/kva) | 26.4/33 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | F3L912 |
| Alternator Model | STG184G |
| Open type DimensionL*W*H(mm) | 1460*680*800 |
| Weight(Kg) | 650 |
| Silent type DimensionL*W*H(mm) | 1660*680*1000 |
| Weight(Kg) | 750 |
| Engine Detail | |
| Engine brand | Deutz |
| Engine Model | F3L912 |
| In-line, 3Cylinder, 4 Cycle Diesel Engine | |
| Bore×Stroke | 100mm×120mm |
| Displacement | 2.827 Liters |
| Compression Ration | 0.709027778 |
| Cooling Way | Air cooled |
| Combustion system | Direct injection |
| Inspiration | Natural intake |
| Direction of rotation | Counterclockwise(face To flywheel end) |
| Fuel consumption ratio | 240.7g/kwh(limit value) |
| Oil consumption ratio | 2.04g/kwh(limit value) |
| Lubricant Capacity | 8Liters |
| Net Weight | 330kg |
| Overall Dimension(L×W×H) | 722mm×664mm×814mm |
| Alternator Detail | |
| Model | STG184G |
| Output power(Kw/Kva) | 25/31 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |

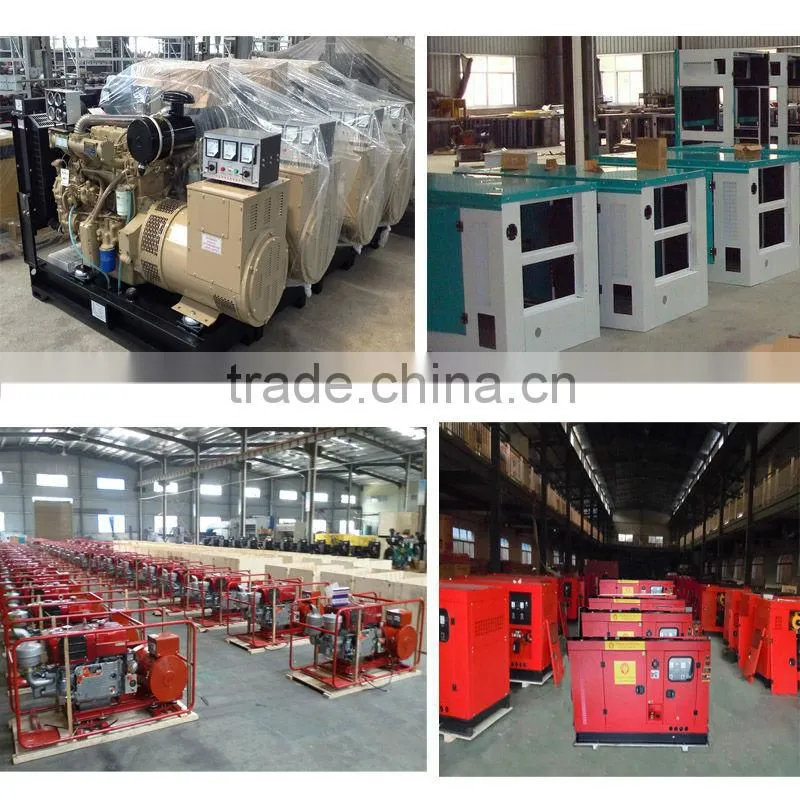

production photo
product photo
CERTIFICATE
