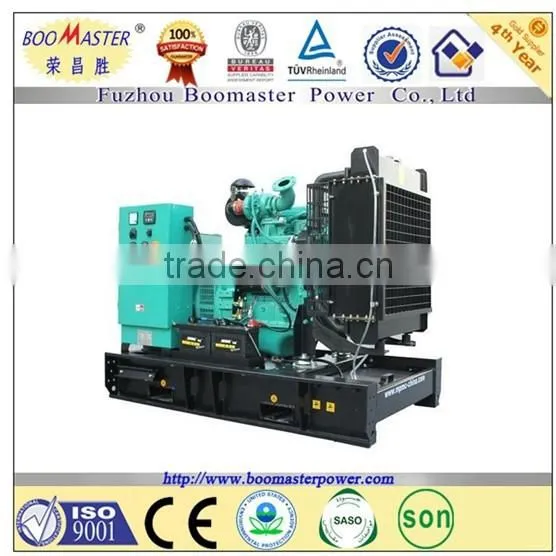

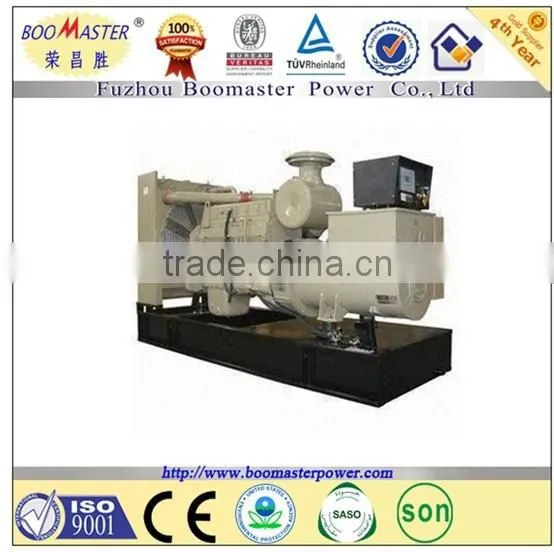

Supermaly 80kw digital cummins engine diesel generator
Product Overview
1) Brand-Cummins
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.
100Kva Cummins diesel generator |
|
Genset Specification |
|
Genset Model |
BC-100 |
Prime Power(Kw/Kva) |
80/100 |
Frequency |
50Hz |
Structure type |
Open or Soudproof |
Dba"@7m |
silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
Engine Model |
6BT5.9-G1 |
Alternator Model |
STG274C |
Open type DimensionL*W*H(mm) |
1700*650*1160 |
Weight(Kg) |
1350 |
Silent type DimensionL*W*H(mm) |
1990*900*1300 |
Weight(Kg) |
1500 |
|
|
Engine Detail |
|
Manufacturer |
Chongqing cummins engine Co.,Ltd |
Model |
6BT5.9-G1 |
Engine speed |
1500rpm |
Engine Characters |
water-cooled,6cylinders in line,4-cycle,direct injection |
The maximum output(kw) |
110KW |
Aspiration |
Turbocharged |
Bore(mm)xStroke(mm) |
102*120 |
Compression ration |
17.5:1 |
Fuel consumption(L/H) |
20(100%loading) |
Displacement(Liters) |
5.9 |
Exhaust air flow(m3/min) |
148 |
Compress air flow(m3/min) |
5.8 |
Exhaust gas flow(m3/min) |
14 |
Exhaust highest temperature |
510°C |
Lube-oil pan capacity(L) |
16.4 |
Cooling water capacity(L) |
11Liters(Engine only) |
Voltage for start(V) |
24 |
Instrument for adjusting speed |
Mechanical |
Noise level(A)@7m |
96dBA(open type) 72dBA(silent type) |
|
|
|
|
Alternator Detail |
|
Model |
STG274C |
Output power(Kw/Kva) |
80/100 |
Number of phase |
3 |
Power factor(Cos Phi) |
0.8 |
Number of Pole |
6 |
Exciter type |
Shunt |
Insulation class |
H |
Voltage regulation |
0.50% |
Total haarmonics (TGH/THC) |
4% |
Wave form:Nema=TIF |
50 |
Wave form:I.E.C=THF |
2% |
Bearing |
single |
Coupling |
Direct |
Generator soundproof/Silent and canopy box:
Ø 8 hours’ base fuel tank
Ø Excellent ventilation
Ø Black finish stainless steel locks and hinges
Ø Zinc plated or stainless steel fasteners
Ø Body made from steel components treated with polyester powder coating
Ø Two large doors on either side
Ø Radiator fill access plate
Ø Fully guarded cooling fan and battery charging alternator
Ø Fuel fill and battery access via lockable access doors
Ø Emergency stop button on canopy exterior
Ø Lube oil drain and radiator drain to exterior
Ø Control panel viewing window
Ø Lifting points on base frame
Ø 1m<80DBA / 7m<70DBA
Generator optional:
Engine |
Heater |
Battery Charger |
|
Fuel System |
Daily Fuel Tank |
Base Fuel Tank |
|
Control System |
Auto Control Panel |
Remote Control Panel |
Auto Transfer Switch (ATS) Control Panel |
Alternator |
Single phase, three phase |
Brushless, carbon brush |
|
Type |
Weatherproof Type |
Soundproof Type |
Trailer type |
Spare Parts |
Fuel filer, Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List |
||
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price
