Home > Industrial Equipment & Components > Boiler & Furnace > Boiler Parts > Boiler Moving Chain Grate Stoker

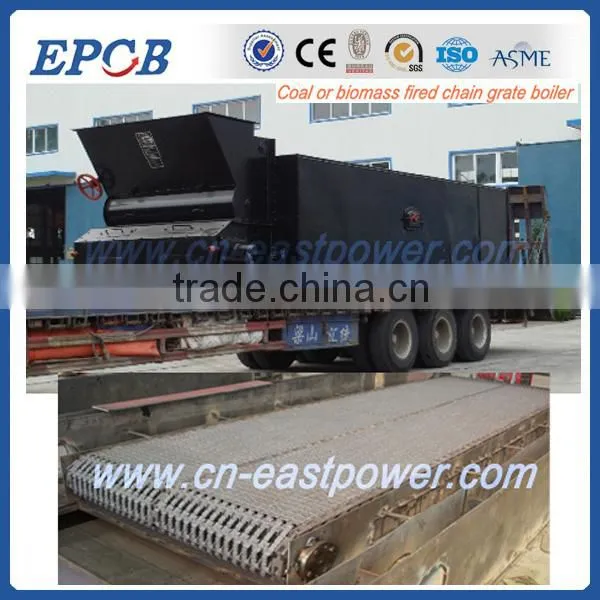

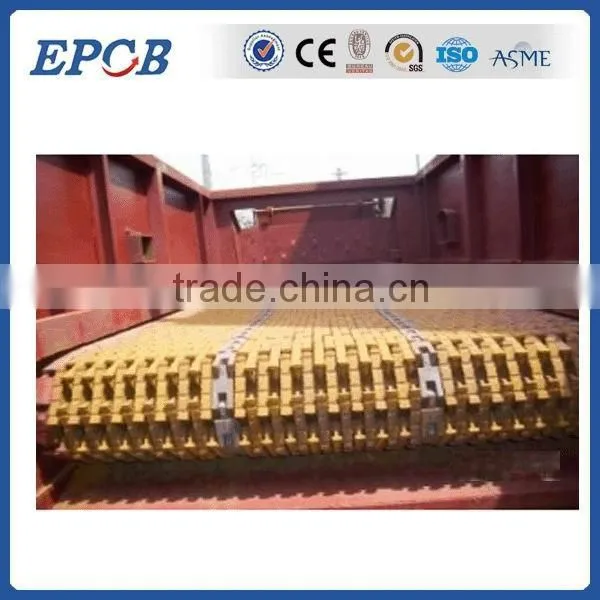

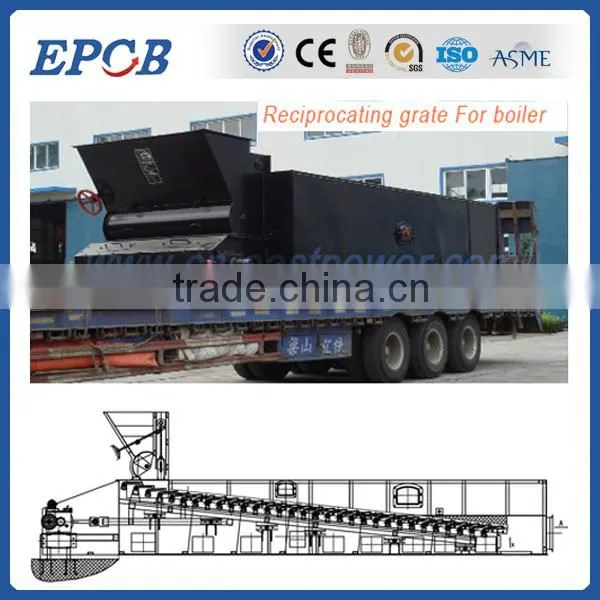

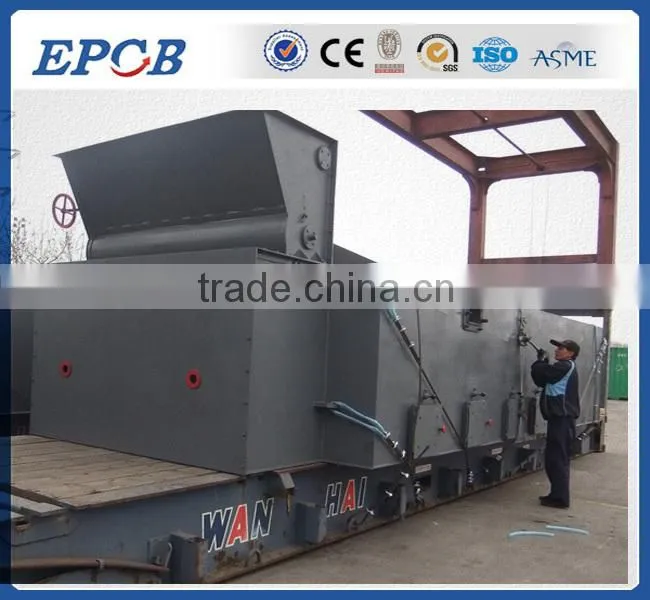

Boiler Moving Chain Grate Stoker

Name: Boiler Moving Chain Grate Stoker
Brand: EPCB
SKU: 103711475

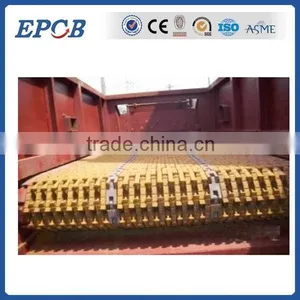

Boiler Moving Chain Grate Stoker thumbnail-1

Boiler Moving Chain Grate Stoker thumbnail-2

Boiler Moving Chain Grate Stoker thumbnail-3

Boiler Moving Chain Grate Stoker thumbnail-4

Boiler Moving Chain Grate Stoker photo-1

Boiler Moving Chain Grate Stoker photo-2

Boiler Moving Chain Grate Stoker photo-3

Boiler Moving Chain Grate Stoker photo-4

US$ 5,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

EPCB

Model Number:

DZL/SZL

Contact Supplier Request Quote Chat Now

Qingdao East Power Industry Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name EPCB

Model Number DZL/SZL

Type Other, Boiler parts

Specifications

boiler chain grate/stoker--boiler auxiliary equipment
1. Coal or biomass fired boiler chain grate
2. High efficient and ener

chain grate boiler parts

The chain grate is a mechanization equipment applied mostly in steam boiler, hot water boiler and thermal oil boiler. It features reasonable structure, reliable performance and convenient installation, etc.

Company Introduction

Spirit: Supply Reliable & high efficient heating system.

1, More than 600 sets of boilers (5000 t/h) can be produced by us per year. Class A boiler manufacturer. Class A1, A2 pressure vessel manufacturer.

2, Each boiler system parts is from first class brand all over the world or China.

3, Strict quality control system. From the material, welding, to finished boiler shipment. From project establishment, drawing design, to final audit.

4, We are the stable and long term supplier of many Top 500 Groups all over the world. Such as PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca cola, etc,.

Applicable boiler	grate effective area(m2)	grate effective width(mm)	Grate surface height(mm)	Width between two endplates(mm)	Length of shaft out of grate(mm)	Height of shaft out of grate(mm)	Dia. of shaft out of grate(mm
1t/h	2.16	800	500	890	657	313	Φ60
1t/h	2.43	900	540	990	707	353	Φ60
2t/h	3.19	1100	540	1190	807	353	Φ60
2t/h	3.48	1200	540	1290	857	353	Φ60
4t/h	50.3	1300	540	1390	907	353	Φ60
4t/h	5.42	1400	540	1490	957	353	Φ60
4t/h	5.81	1500	590	1590	1007	403	Φ60
6t/h	6.63	1500	590	1590	1007	393	Φ80
6t/h	7.07	1600	590	1690	1057	393	Φ80
6t/h	7.51	1700	590	1790	1107	393	Φ80
8t/h	9.9	1800	690	1890		451	Φ80
10t/h	12.6	2000	797	2090		555	Φ80
10t/h	13.23	2100	797	2190		555	Φ80
15t/h	18.82	2800	797	2890		555	Φ100
20t/h	22.6	3400	797	3490		555	Φ120/Φ110
Ps: 1. suitable fuel : coal or biomass ; 2. used in boiler and furnace thermal technology equipment ; 3. The length and width can be change according to user needs.
