Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 50kva Silent Cummins Engine Diesel Generator Set

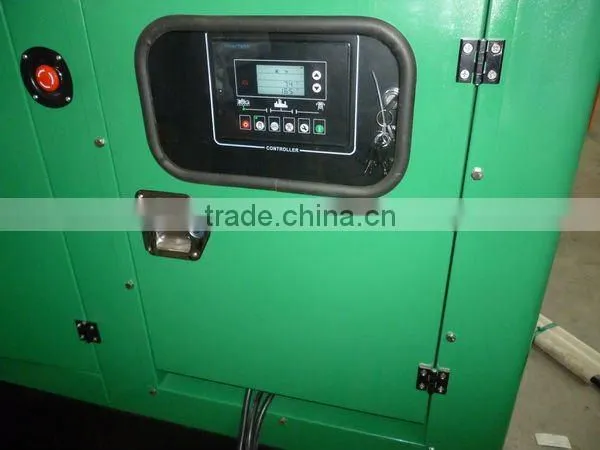

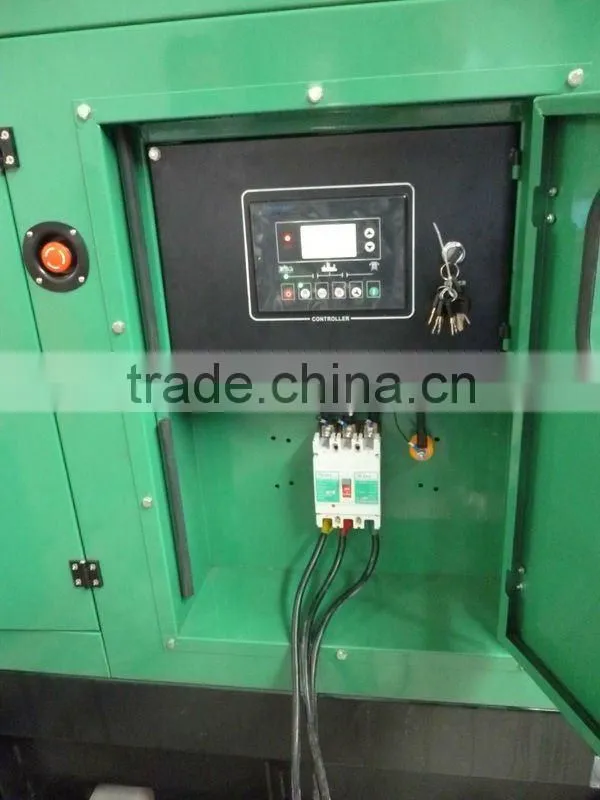

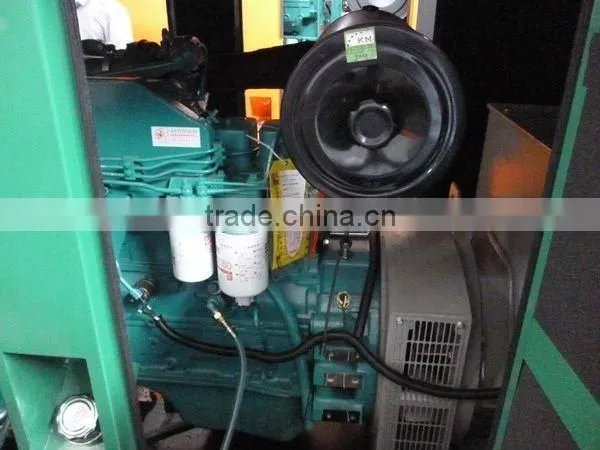

50kva Silent Cummins Engine Diesel Generator Set
US$ 6,199 - 6,599
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Boomaster
Model Number:
C45 Cummins engine diesel generator
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cummins Engine 125kva Diesel Generator SetUS$ 10,299 - 10,755MOQ: 1 Set -
Ce Iso Approved 20kva-1000kva With Cummins Engine Generator Diesel Generator Prices - Buy Diesel GeneratorNegotiableMOQ: 1 Set
-
Ce Iso Approved 20kva-1000kva With Cummins Engine Generator Diesel Generator PricesUS$ 4,999 - 55,999MOQ: 1 Set
-
20kw to 200kw Cummins Engine Generator SetUS$ 1,999 - 29,999MOQ: 1 Set
-
Cummins Engine New Products on China Market for IndustrialUS$ 4,500 - 25,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Boomaster
Model Number
C45 Cummins engine diesel generator
Output Type
AC Three Phase
Speed
1,500/1800rpm
Frequency
50/60Hz
Rated Power
50KVA
Rated Voltage
220 to 240 and 380 to 415V
power by CUMMINS 60kva diesel generator set
If any items as below meet your market,please feel free to contact us!!
| Genset Model | BC-50 |
| Prime Power(Kw/Kva) | 40/50 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | 4BTA3.9-G2 |
| Alternator Model | STG224D |
| Open type DimensionL*W*H(mm) | 1460*680*800 |
| Weight(Kg) | 750 |
| Silent type DimensionL*W*H(mm) | 1660*680*1000 |
| Weight(Kg) | 850 |
| Engine Detail | |
| Manufacturer | Chongqing cummins engine Co.,Ltd |
| Model | 4B3.9-G2 |
| Engine speed | 1500rpm |
| Engine Characters | water-cooled,4cylinders in line,4-cycle,direct injection |
| The maximum output(kw) | 40KW |
| Aspiration | Turbocharged |
| Bore(mm)xStroke(mm) | 102*120 |
| Compression ration | 16.5:1 |
| Fuel consumption(L/H) | 9.5(100%loading) |
| Displacement(Liters) | 3.9 |
| Exhaust air flow(m3/min) | 135.6 |
| Compress air flow(m3/min) | 4.13 |
| Exhaust gas flow(m3/min) | 9.96 |
| Exhaust highest temperature | 475°C |
| Lube-oil pan capacity(L) | 11 |
| Cooling water capacity(L) | 8Liters(Engine only) |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Electronically |
| Noise level(A)@7m | 89dBA(open type) ,70dBA(silent type) |
| Alternator Detail | |
| Model | STG224D |
| Output power(Kw/Kva) | 40/50 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
Guaranty:
Guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, our Boomaster will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for genset
MOQ |
1 set |
Delivery Clause |
FOB Fuzhou |
Terms of payment |
T/T, L/C at sight |
.Leading Professional manufacturer of power generator
.Certification:CE EPA ISO IEC
.Fast delivery:we will do our best to meet your requirement when you need it.
.Product quality :Famous high quality engine.we offer spare parts.
.OEM is warmly welcomed
