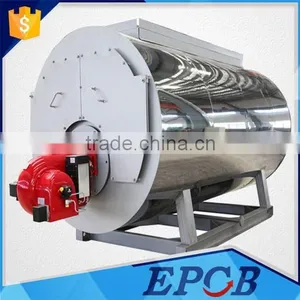

Natural Gas Biogas Combi Boiler Steam Boiler
Advantage
1.Class A boiler manufacturer
2.One Year Gurantee
3.Good After-Sale
4.Petrochina supplier
WNS Boiler Description
1. Adopting tried and tested three-pass and wet-back structure, more safe and reliable
2. Big combustion room design: Increase furnace radiant heating area, decrease the boiler size, reduce the emission of the NOx
3. Corrugated hearth make the boiler more safe
4. Threaded tube: Strengthen the heat transfer, increase the boiler heat efficiency
5. Multi-level sealing for flue gas chamber: No flue gas leakage.
6. Boiler controlling system can run for a long time under high temperature and high humidity condition.
7. Multi-level protections like boiler pressure, hot water temperature, gas pressure protection and so on.
8. High efficient thermal insulation material, low boiler surface temperature, the heat loss can be neglected.
9. Produce according to the national standard, all pressurized components apply fine quality steel
10. Every boiler must be subject to strict inspection and testing before delivery, including hydraulic test and X-ray inspection
11. Selecting the most suitable burner to match the boiler so as to guarantee safety and reach rated output
Standard three return boiler
| Standardized oil(gas)-fired steam boiler parameter | |||||||||||
| Item/Type | WNS2-1.25-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS6-1.25-Y(Q) | WNS10-1.25-Y(Q) | WNS12-1.25-Y(Q) | WNS15-1.25-Y(Q) | WNS20-1.25-Y(Q) | WNS25-1.25-Y(Q) | WNS30-1.25-Y(Q) | |
| Rated capacity kg/h | 2000 | 3000 | 4000 | 6000 | 10000 | 12000 | 15000 | 20000 | 25000 | 30000 | |
| Rated Working pressure Mpa | 1.25 | ||||||||||
| Rated steam Temperature degree | 194 | ||||||||||
| Design efficiency % | ≥91 | ||||||||||
| Fuel consumption | Light oil kg/h | 146 | 210 | 285 | 424.8 | 643 | 833 | 1042 | 1389 | 1736 | 2083 |
| heavy oil kg/h | 156.5 | 225.1 | 305.5 | 455.3 | 689.2 | 893 | 1117 | 1789 | 1861 | 2233 | |
| natural gas Nm3/h | 174.3 | 250.7 | 340 | 507.1 | 767.7 | 995 | 1244 | 1659 | 2073 | 2488 | |
| Max. transport size | L (mm) | 3400 | 4500 | 4600 | 4800 | 7200 | 7150 | 7500 | 9150 | 9700 | 10500 |
| W (mm) | 2100 | 2600 | 2550 | 2750 | 3200 | 3200 | 3500 | 4000 | 4300 | 4500 | |
| H (mm) | 2368 | 2600 | 2604 | 2950 | 3262 | 3500 | 3850 | 4500 | 4800 | 5900 | |

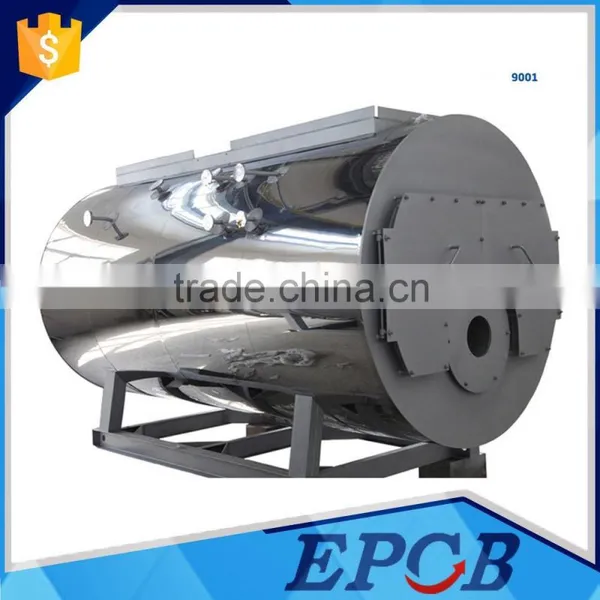

Product Pictures for oil boiler :
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent that can choose the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way after installation of the boiler mainly parts.
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choose our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
|
|
| Natural Circulation Oil Natural Gas Boilers, Hot Water Boilers | Wood Boilers, Wood Pellet Boilers, Steam Boilers |
|
|
| YY(Q)L Series Oil Gas Fired Thermal Oil Boiler | Wood logs fixed grate boilers steam boilers |
