Good Price Low Noise 40kw 50kva 4BTA3.9-G2 Diesel Power Generation

Good price Low Noise 40kw 50kva 4BTA3.9-G2 Diesel Power Generation

Generator General Specification:

Engine Specification:

Other available engines: PERKINS, WEIFANG, FAWDE, MITSUBISHI, LOVOL, YANGDONG, etc.

Alternator Specification:
Poweronly series alternator is kind of studying Stamford technology and workmanship,
with economic price, stable performance, and long life.

Alternator Model	STG224D
Frequency	50Hz	60Hz
Speed	1500rpm/min	1800rpm/min
Prime power	27.5kVA/22kW	30kVA/24kW
Standby power	30kVA/24kW	33kVA/26.4kW
Voltage	110V-440V
Phase	3 phases, 4 wires
Power factor	0.8 lagged
Control system	Brushless;Self-excited with AVR
Voltage regulation	1%
Insulation class	H
Protection class	IP23

  Other available alternators: Stamford, Leroysomer, Meccalte, etc.

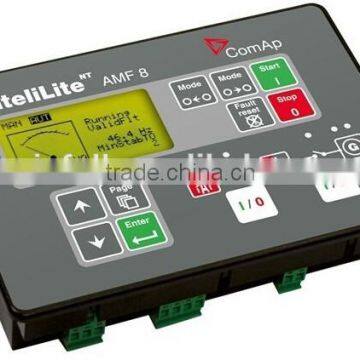

Default ComAp AMF8 Controller Specification:

AMF8 is easy-to-use operation and installation. Predefined configurations for
typical applications are available as well as user-defined configurations for special
applications.

1. Holding information about serial number, uploaded firmware version and others,
and display on LCD screen.

2. Equipped with a powerful graphic display showing icons, symbols and bar-graphs
for intuitive operation, which sets, together with high functionality, new standards in
Gen-set controls.

3. It Automatically starts the Gen-set, closes the Gen-set C.B. when all conditions
 are met, then stops the engine on external signal or by pressing push buttons.

4. Offers configurable language support, possible to switch between languages
configured in controller on screen.

5. Can be remotely controlled. In case of the work on the Gen-set check, that nobody
can remotely start the engine.

6. Can be connected directly with PC via optional IL-NT RS232 interface.

7. Control Protection: low oil pressure; low coolant level; high coolant temperature,
under/over speed; under/over voltage; over-current; short circuit; phase rotation; etc.

Other available controller: Smartgen; Deepsea; etc.


Standard Supply Scope:

Other option: ATS; Water heater; Oil heater; Fuel heater; Parealleling system; etc.
