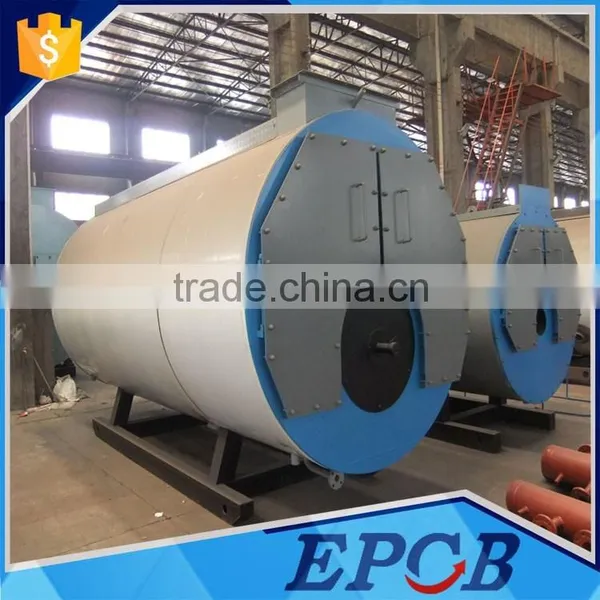

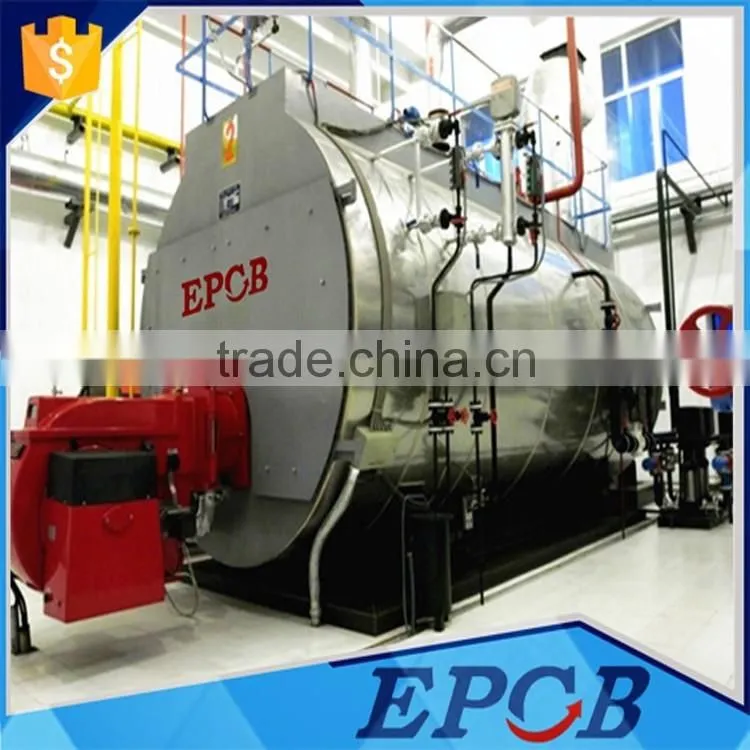

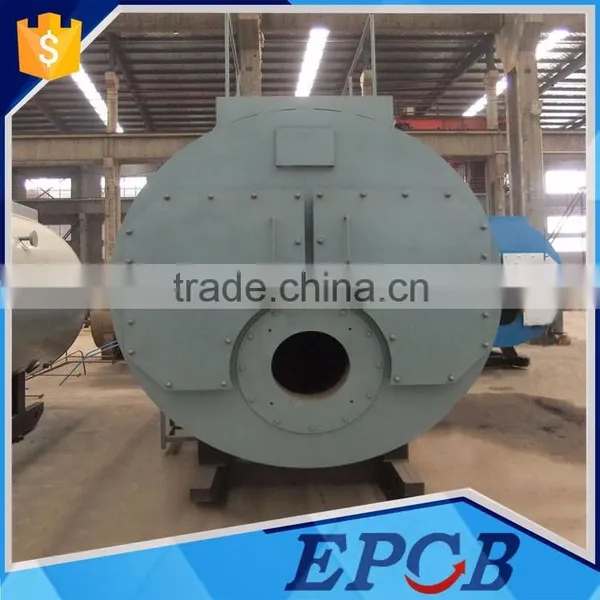

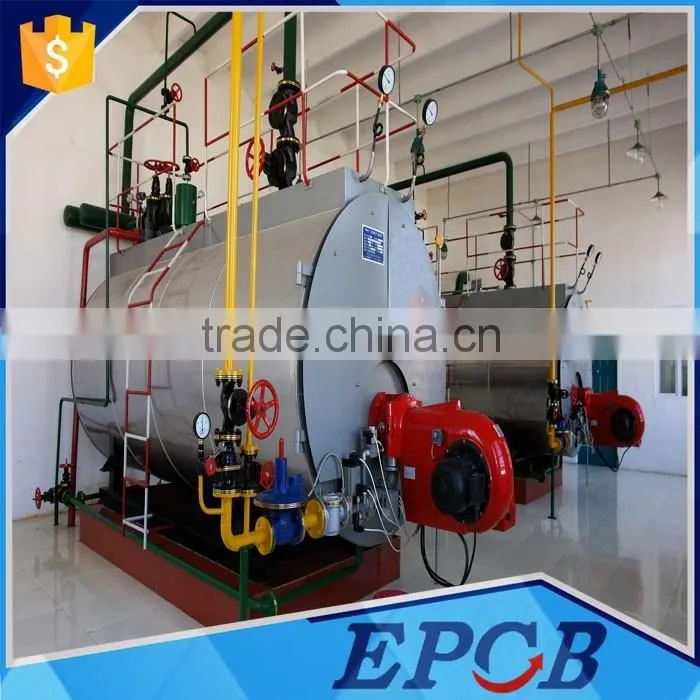

Help CenterMade in China Class A Horizontal Oil Gas Fired Steam Boiler
Related Products
-
Hot Sale Oil and Gas Fire Tube Hot Water BoilerUS$ 1,000 - 100,000MOQ: 1 Set -
Hot Sale Oil and Gas Residential Hot Water BoilersUS$ 1,000 - 100,000MOQ: 1 Set
-
Water Heat Boiler With Burner Oil Steam Boiler PriceUS$ 8,000 - 250,000MOQ: 1 Set
-
Water Tube Gas Steam Boiler Diesel BoilerUS$ 5,000 - 150,000MOQ: 1 Set
-
Horizontal Diesel Steam Boiler, 4 Ton Gas BoilerUS$ 48,000 - 62,000MOQ: 1 Set
Welcome to our website and hope our products will make you satisfied .
We think creatively,design bravely,manufacture precisely and loyalty to
our customers. And we have our own factory. So we can produce the products according to customer requirements .
Give us a negotiate chance and we will yield you a surprise.
Yours, EPCB
* This simplifies the furnace heating surface design,especially for the low-power boiler.
| ItemModel |
WNS0.5 -0.7-Y(Q) |
WNS1.0 -0.7-Y(Q) |
WNS1.5 -0.7-Y(Q) |
WNS2-0.7-Y(Q) | WNS2-1.25-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) |
WNS0.35 -0.7-95/70-Y(Q) |
WNS0.7 -1-95/70-Y(Q) |
WNS1.05 -1-95/70-Y(Q) |
WNS1.4 -1-95/70-Y(Q) |
WNS2.1-1-95/70-Y(Q) | WNS2.8-1-95/70-Y(Q) | ||
|
Rated capacity KG/H |
500 | 1000 | 1500 | 2000 | 2000 | 3000 | 4000 | ||||||||
| Capacity MW | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 | 2.8 | |||||||||
| Rated working pressure MPa | 0.7 | 0.7 | 0.7 | 0.7 | 1.25 | 1.25 | 1.25 | 0.7 | 1 | 1 | 1 | 1 | 1 | ||
| Rated steam temperature °C | 169 | 169 | 169 | 169 | 194 | 194 | 194 | ||||||||
|
Design efficiency % |
90 | 90 | 90 | 90 | 90 | 90 | 90 | 91 | 91 | 91 | 91 | 91 | 91 | ||
| Fuel consumption |
light oil kg/h |
37 | 72 | 97 | 144 | 146 | 210 | 285 | 32 | 65 | 105 | 133 | 195 | 274 | |
|
heavy oil kg/h |
38 | 76 | 105 | 154 | 156.5 | 223 | 304 | 34.3 | 69.7 | 112.5 | 142.6 | 209 | 293.7 | ||
|
city gas Nm3/h |
88 | 170 | 231 | 342.9 | 347.7 | 500 | 678.6 | 76.2 | 153.1 | 250 | 316.7 | 464.3 | 652.5 | ||
|
natural gas Nm3/h |
44 | 85 | 116 | 172 | 174.3 | 250.7 | 340.3 | 38.2 | 76.8 | 125.4 | 158.8 | 232.8 | 327.1 | ||
| main steam valveseat mm | DN40 | DN50 | DN65 | DN80 | DN80 | DN80 | DN100 | ||||||||
| feed water tube diameter MM | DN25 | DN25 | DN25 | DN25 | DN25 | DN40 | DN40 | ||||||||
| blowdown tube diameter MM | 1-DN40 | 1-DN40 | 1-DN40 | 2-DN40 | 2-DN40 | 2-DN40 | 2-DN50 | 1-DN40 | 1-DN40 | 1-DN40 | 2-DN40 | 2-DN40 | 2-DN40 | ||
| safety valve diameter MM | 1-DN40 | 2-DN40 | 2-DN40 | 2-DN50 | 2-DN40 | 2-DN40 | 2-DN50 | 1-DN40 | 1-DN50 | 1-DN50 | 2-DN40 | 2-DN50 | 2-DN50 | ||
| chimney diameter MM | 250 | 350 | 350 | 350 | 350 | 450 | 500 | 200 | 350 | 350 | 450 | ||||
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
Boiler Aplication:
Steam boiler can be used for product manufacturing process in textile factory, printing and dying, papermaking, rubber industrial , plastic industrial , chemical, pharmaceutical, etc.; and Hot water boiler for heating room, bath, air conditional, and daily life water in the factories, departments and so on.
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
Manufacturer Recommend:
|
|
| SZL Series Coal or Biomass Fired Steam Boiler | DZL Series Coal or Biomess Fired Steam Boiler |
|
|
| YY(Q)L Series Oil Gas Fired Thermal Oil Boiler | Electric Steam Boiler/ Hot Water Boiler |
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
