10kw/12kva water cooling diesel home power portable generator

Specifications

1.rated power:12kva
2.Vol /Fre: 230/400V 50Hz
3. Power factor: 0.8
4. Phase:3phase
5.one year warranty

10kw/12kva water cooling diesel home power portable generator



Generator Supply Scope:

Ø .Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
Ø .brand-new engine, w/ start motor.
Ø .brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
Ø .auto control panel, with LCD display.
Ø .Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
Ø .Circuit Breaker,Exhaust Silencer
Ø .Copper Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
Ø .Antivibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
Ø .Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
Ø .External recessed emergency stop button for extra safety
Ø .The colors & Brands by your requests
Ø .Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.



Detail information



Genset Specification
Genset Model	BQ-12
Prime Power(Kw/Kva)	1012
Frequency	50Hz
Structure type	Open or Soudproof
Dba"@7m	silent genset 55-78 dba @ 7m , open type75-98 dba @7m
Engine Model	QC385D
Alternator Model	STG164C
Open type DimensionL*W*H(mm)	1600x700x900
Weight(Kg)	420
Silent type DimensionL*W*H(mm)	1660x880x950
Weight(Kg)	520
Engine Detail
Manufacturer	Quanchai engine Co.,Ltd
Model	QC385D
Engine speed	1500rpm
Engine power
…………Prime power	11KW(50Hz)
Type	vertical,4cylinder,in-line,water-cooled,four-stroke
Aspiration	Naturally aspirated
Governor	electrical
Bore*Stroke	85*90mm
Displacement	1.532L
Alternator Detail
Model	STG164C
Output power(Kw/Kva)	1012
Number of phase	3
Power factor(Cos Phi)	0.8
Number of Pole	4
Exciter type	Shunt
Insulation class	H
Voltage regulation	0.50%
Total haarmonics (TGH/THC)	4%
Wave form:Nema=TIF	50
Wave form:I.E.C=THF	2%
Bearing	single
Coupling	Direct







Other pictures:

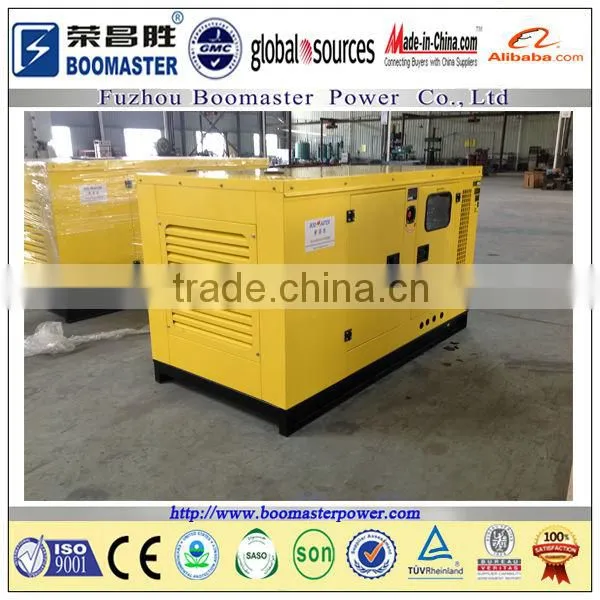

 Silent diesel generator
