Industrial Gas Diesel Steam Boiler Heavy Oil Boiler

Name: Industrial Gas Diesel Steam Boiler Heavy Oil Boiler
Brand: EPCB
Availability: InStock

FOB Price

US$ 1,000 - 90,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Natural Circulation
Usage	Industrial	Structure	Fire Tube
Pressure	Low Pressure	Style	Horizontal
Fuel	Other, gas diesel	Place of Origin	Shandong, China
Brand Name	EPCB	Model Number	WNS
Output	Steam	Dimension(LWH)	the models are different
Weight	the models are different	Certification	CE, GB, GOST, ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Industrial Gas Diesel Steam Boiler Heavy Oil Boiler

Dear Customer:

Welcome to our website and hope our products will make you satisfied .

We think creatively,design bravely,manufacture precisely and loyalty to

our customers. And we have our own We can produce the products according to customer requirements .

Give us a negotiate chance will yield you a surprise .

Yours,

EPCB

Product Data

Product Data

Standardized WNS Oil(gas)-fired Steam Boiler Parameter
Item/Type		WNS2-1.25-Y(Q)	WNS3-1.25-Y(Q)	WNS4-1.25-Y(Q)	WNS6-1.25-Y(Q)	WNS10-1.25-Y(Q)	WNS12-1.25-Y(Q)	WNS15-1.25-Y(Q)	WNS20-1.25-Y(Q)	WNS25-1.25-Y(Q)	WNS30-1.25-Y(Q)
Rated capacity kg/h		2000	3000	4000	6000	10000	12000	15000	20000	25000	30000
Rated Working pressure Mpa		1.25
Rated steam Temperature degree		194
Design efficiency %		≥91
Fuel consumption	Light oil kg/h	146	210	285	424.8	643	833	1042	1389	1736	2083
	heavy oil kg/h	156.5	225.1	305.5	455.3	689.2	893	1117	1789	1861	2233
	natural gas Nm3/h	174.3	250.7	340	507.1	767.7	995	1244	1659	2073	2488
Blowdown tube diameter		2-DN40	2-DN40	2-DN40	2-DN40	2-DN50	2-DN50	2-DN50	2-DN50	2-DN50	2-DN50
Safty valve diameter		2-DN40	2-DN40	2-DN50	2-DN80	2-DN80	2-DN80	2-DN100	2-DN100	2-DN150	2-DN200
Chimney diameter		350	450	500	500	650	750	800	900	1000	1000
Max. transport size	L (mm)	3400	4500	4600	4800	7200	7150	7500	9150	9700	10500
	W (mm)	2100	2600	2550	2750	3200	3200	3500	4000	4300	4500
	H (mm)	2368	2600	2604	2950	3262	3500	3850	4500	4800	5900

Class A boiler manufacture GB, CE, GOST, AS standard.

Product Description

Advantage

1.Class A boiler manufacturer

2.One Year Gurantee

3.Good After-Sale

4.Petrochina supplier

WNS Boiler Description

1. Adopting tried and tested three-pass and wet-back structure, more safe and reliable

2. Big combustion room design: Increase furnace radiant heating area, decrease the boiler size, reduce the emission of the NOx

3. Corrugated hearth make the boiler more safe

4. Threaded tube: Strengthen the heat transfer, increase the boiler heat efficiency

5. Multi-level sealing for flue gas chamber: No flue gas leakage.

6. Boiler controlling system can run for a long time under high temperature and high humidity condition.

7. Multi-level protections like boiler pressure, hot water temperature, gas pressure protection and so on.

8. High efficient thermal insulation material, low boiler surface temperature, the heat loss can be neglected.

9. Produce according to the national standard, all pressurized components apply fine quality steel

10. Every boiler must be subject to strict inspection and testing before delivery, including hydraulic test and X-ray inspection

11. Selecting the most suitable burner to match the boiler so as to guarantee safety and reach rated output

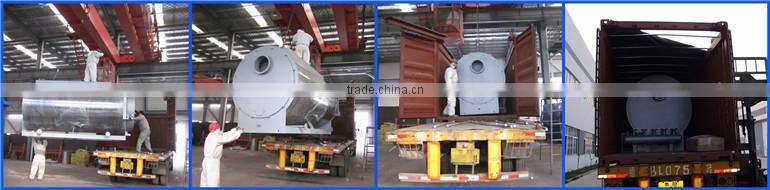

Packaging & Shipping

Our Partners

Company Information

FAQ

Q: Are you manufacturer?

A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.

Q: Do I get guarantee of products?

A: Yes, every product is 1 year quality warrantee under customer correct using the products.

Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.

Q: How to buy it?

A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.

Q: What about the delivery?

A: We have shipping agent that can choose the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us

Q: How can I pay you?

A: T/T, LC is very well used.

Q: What about the production?

A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.

Q: Could you offer some wear parts?

A: Yes, some chain grate bars, electric equipments in control panel box for example.

Q: What about the maintenance?

A: I will offer you the timely maintenance way after installation of the boiler mainly parts.
