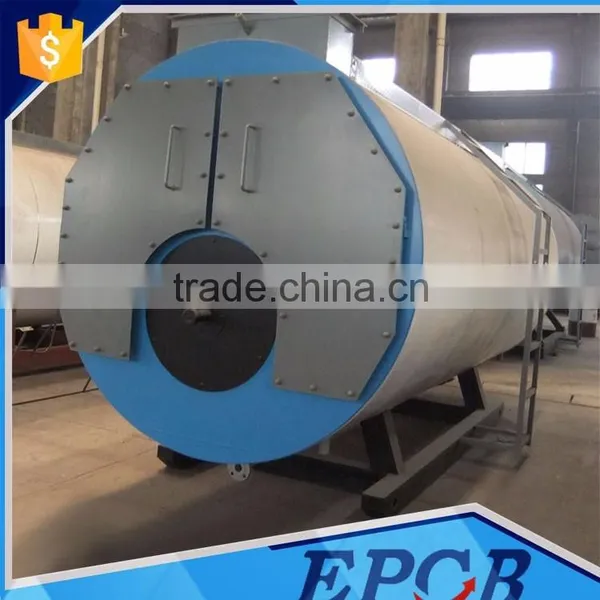

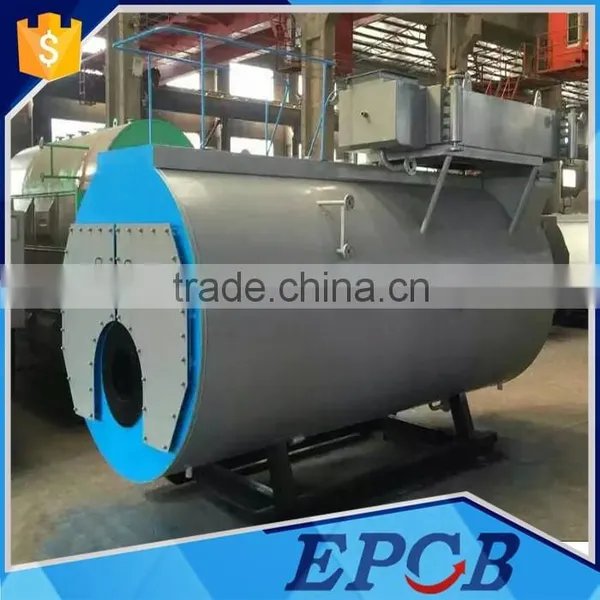

Factory Price WNS Series 0.5-2t Three Pass Industrial Gas Oil Fired Steam Boiler
Dear Customer:
Welcome to our website and hope our products will make you satisfied .
We think creatively,design bravely,manufacture precisely and loyalty to
our customers. And we have our own We can produce the productsaccording to customer requirements .
Give us a negotiate chance will yield you a surprise .
Yours
EPCB

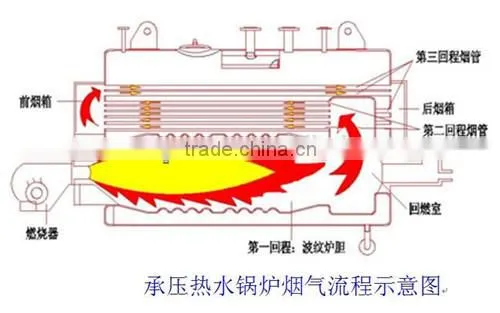

1. Boiler Design Structure
1.Designed with horizontal, three passes, all-wet back structure. oil boiler
2.Fire tubes are surrounded by water, and these design making efficient up to 90%.
3.Threaded tube: The smoke tube adopts high efficient heat transfer component.It raises the heat transfer coefficient of the smoke tube. Oil boiler
4.Big combustion room design: increase furnace heating area, decrease boiler size, and reduce the emission of the Nox Corrugated hearth make the boiler safer.
5. Checked easily: The boiler has two somke header doors in the front and back. It is easy to the daily maintains for the inspection hole and manhole. Oil boiler
2. Boiler Advantage
1.Safety: with water level, leakage steam, steam pressure control. Make sure boiler working safety.
2.Product quality ensured by:Strength calculation report , hydraulic test, X-ray, non-destructive test.
3.Efficient: well insulation and excellent structure.
4. Spirally corrugated tube increase the strength and also meets the needs of heat expansion of each parts.
heavy oil boiler,diesel oil boiler light oil boiler,
3. Our Main Product Scope
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS serires Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
5. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
4. After-sale Services
1. Assist clients to prepare for the first construction, and also can arrange engineer on-site instruction of installation and commissioning
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
About Us
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
Manufacturer Recommend:
|
|
| WNS Series Oil/Gas Fired Steam Boiler | DZL Series Coal/Biomass Fired Steam Boiler |
|
|
| YY(Q)W Series Oil/Gas Fired Thermal Oil Boiler | Electric Steam/Hot Water Boiler |
