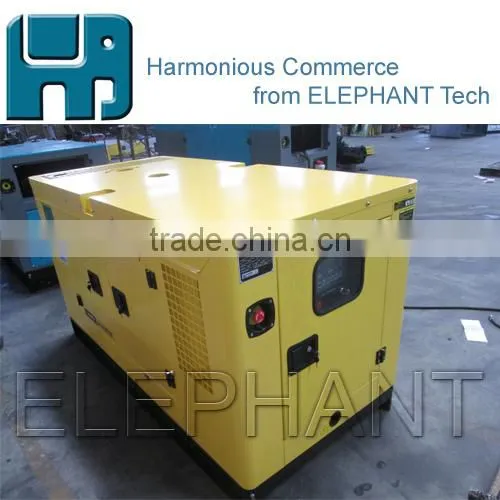

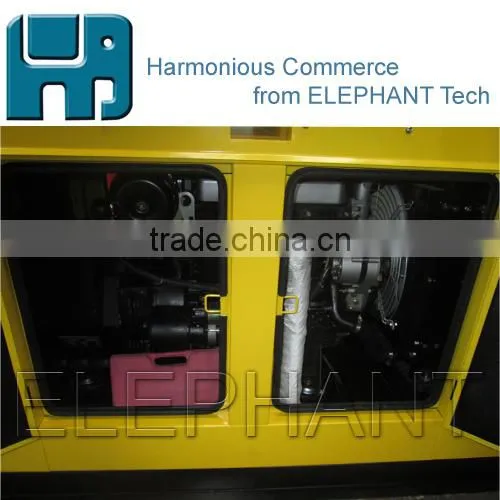

50hz 15kva/12kw 60hz 18kva/15kw Duel Frequency Diesel Generator with Copy Stamford Alternator
Generator General Specification:
Generator model |
BY-16(S) |
BY-20(S) |
Frequency |
50Hz |
60Hz |
Speed |
1500rpm/min |
1800rpm/min |
Prime power |
15kVA/12kW |
18kVA/14.4kW |
Standby power |
16.5kVA/13.2kW |
20kVA/16kW |

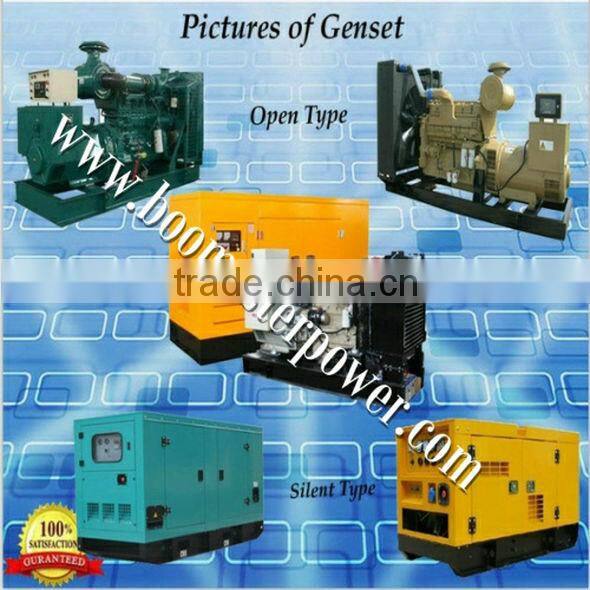

Type |
Open/Silent |
|
Voltage |
110V-440V |
|
Phase |
3 phase, 4 wires |
|
Power factor |
0.8 lagged |
|
Engine |
Yangdong 485D |
|
Alternator |
Poweronly/Stamford/Leorysomer |
|
Controller |
ComAp/Smartgen/Deepsea |
|
| ||

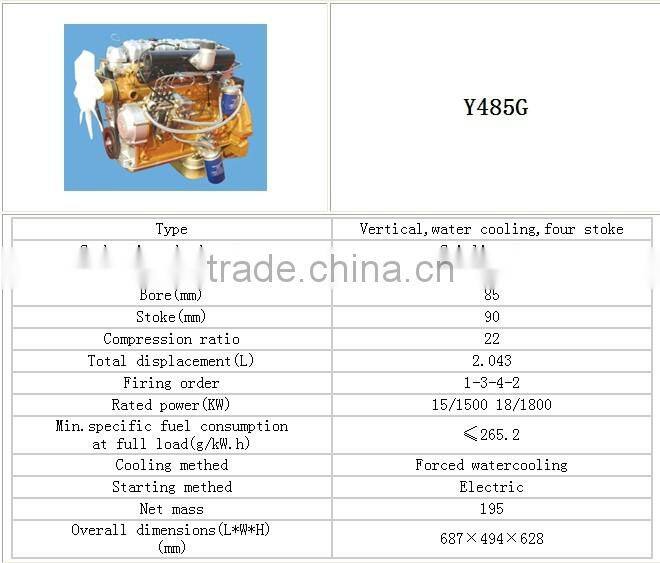

Yangdong Engine Specification:
Other available engines: Cummins, PERKINS, WEIFANG, FAWDE, MITSUBISHI, LOVOL, YANGDONG, etc.

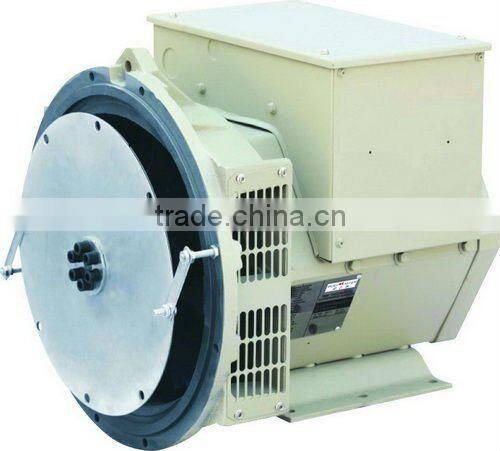

Alternator Specification:
Poweronly series alternator is kind of studying Stamford technology and workmanship,
with economic price, stable performance, and long life.
Alternator Model |
STG164D |
|
Frequency |
50Hz |
60Hz |
Speed |
1500rpm/min |
1800rpm/min |
Prime power |
16kVA/12.8kW |
20kVA/16kW |
Standby power |
17.6kVA/14kW |
22kVA/17.6kW |
Voltage |
110V-440V |
|
Phase |
3 phases, 4 wires |
|
Power factor |
0.8 lagged |
|
Control system |
Brushless;Self-excited with AVR |
|
Voltage regulation |
1% |
|
Insulation class |
H |
|
Protection class |
IP23 |
|
|
| ||
Other available alternators: Stamford, Leroysomer, Meccalte, etc.

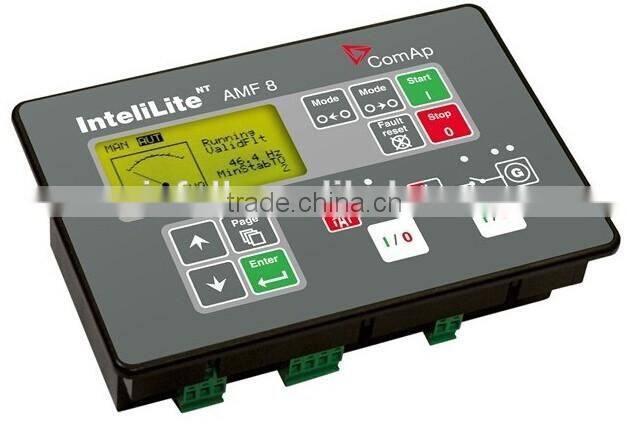

Default ComAp AMF8 Controller Specification:
AMF8 is easy-to-use operation and installation. Predefined configurations for
typical applications are available as well as user-defined configurations for special
applications.
1. Holding information about serial number, uploaded firmware version and others,
and display on LCD screen.
2. Equipped with a powerful graphic display showing icons, symbols and bar-graphs
for intuitive operation, which sets, together with high functionality, new standards in
Gen-set controls.
3. It Automatically starts the Gen-set, closes the Gen-set C.B. when all conditions
are met, then stops the engine on external signal or by pressing push buttons.
4. Offers configurable language support, possible to switch between languages
configured in controller on screen.
5. Can be remotely controlled. In case of the work on the Gen-set check, that nobody
can remotely start the engine.
6. Can be connected directly with PC via optional IL-NT RS232 interface.
7. Control Protection: low oil pressure; low coolant level; high coolant temperature,
under/over speed; under/over voltage; over-current; short circuit; phase rotation; etc.
Other available controller: Smartgen; Deepsea; etc.
Standard Supply Scope:
| Exhaust Silencer | Flexible Pipe | Starting Batteries | Battery Charger |
| Cooling Radiator | 8-hour Fuel Tank | Circuit Breaker | Anti-vibration Pads |
| Tool Bag | Wires Diagram | Manual Books |
Other option: ATS; Water heater; Oil heater; Fuel heater; Parealleling system; etc.
