Vertical Boiler CNG Compress Natural Gas Fired Steam Boiler With Best Price
- Qingdao
- T/T
You May Like
-
Completet Set Gas and Oil Boiler With Low Price
-
Three Pass Horizontal Fully Automatic Gas Oil Boiler
-
Manufacturer Natural Gas Fuel Oil Gas Fired 6 Ton Boiler
-
WNS 4 Ton Steam Horizontal Types of Industrial Boiler
-
New Product Industrial 3 Ton Steam Commercial Gas Boiler Prices
-
500kg Vertical CNG Compress Natural Gas Fired Steam Boiler for Iron
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Fire Tube | |
| Pressure | Low Pressure | Style | Horizontal | |
| Fuel | Gas-fired | Place of Origin | Shandong, China | |
| Brand Name | EPCB | Model Number | LHS | |
| Output | Steam | Dimension(L*W*H) | Different hot boiler different size | |
| Weight | Different hot boiler different size | Certification | ISO ASME CE GOST GB | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

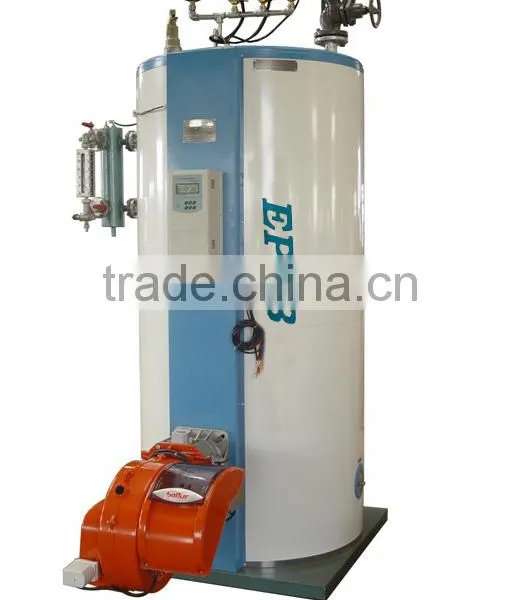

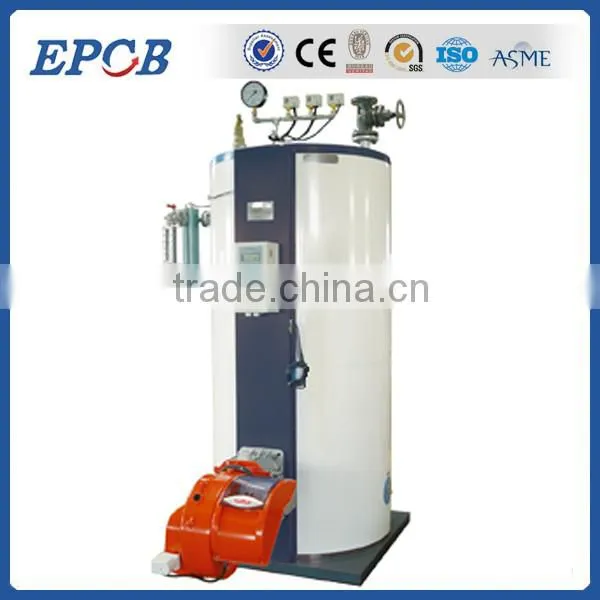

100kg 300kg 500kg Vertical Oil Gas Fired steam Boiler with Accessories
I. The description of LHS gas oil steam boiler
WNS series of fuel oil gas-fired boiler is the new patented technology boiler which developed independently by our company. This furnace used to burn the centre of a unique technology, and uses the three return trip technologies, the entire wet back structure. The furnace volume is big, make full use of radiation furnace heat exchanger, and through enhancing the combustion of fuels burnout level, making boiler thermal efficiency improved greatly. This simplifies the furnace heating surface design, especially for the low-power boiler.
II. Technique Parameters:
| LHS Oil (gas)-fired steam boiler parameter | ||||||||
| Item/Type | LHS0.1-0.4/0.7-Q.Y | LHS0.15-0.7-Q.Y | LHS0.2-0.4/0.7-Q.Y | LHS3-0.4/0.7-Q.Y | LHS0.5-0.4/0.7-Q.Y | LHS0.8-0.7/1.0-Q.Y | LHS1.0-0.7/1.0-Q.Y | |
| Rated power kw | ≈70 | ≈105 | ≈140 | ≈210 | ≈350 | ≈560 | ≈700 | |
| Rated steam capacity t/h | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 | 0.8 | 1 | |
| Rated working pressure Mpa | 0.4/0.7 | 0.7 | 0.4/0.7 | 0.4/0.7 | 0.4/0.7 | 0.7/1.0 | 0.7/1.0 | |
| Saturated steam temperature Celsiius | 152/170 | 170 | 152/170 | 152/170 | 152/170 | 170/184 | 170/184 | |
| Design efficiency % | >90 | >90 | >89 | >89 | >89 | >89 | >89 | |
| Heated area m2 | 2.65 | 4.9 | 5.08 | 8.2 | 12.7 | 18.4 | 23.1 | |
| Boiler water capacity L | 360 | 360 | 510 | 930 | 1040 | 1620 | 2760 | |
| Flue diameter | 160 | 250 | 250 | 250 | 300 | 400 | 350 | |
| Feed water diameter | DN25 | DN25 | DN25 | DN25 | DN25 | DN40 | DN40 | |
| Main steam tube diameter | DN25 | DN40 | DN40 | DN40 | DN50 | DN50 | DN65 | |
| Safety valve diameter | DN40 | DN40 | DN40 | DN40 | DN40 | 2xDN40 | 2xDN40 | |
| Blowdown tube diameter | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | |
| Fuel consumption | Light oil kg/h | 7.0 | 10.4 | 13.8 | 22.5 | 34.5 | 51.5 | 68.2 |
| natural gas Nm3/h | 8.0 | 12.4 | 16.5 | 24.0 | 40.3 | 60.5 | 80.6 | |
| LPG Nm3/h | 3.2 | 4.8 | 6.4 | 10.4 | 16.0 | 23.8 | 31.6 | |
| Coal Gas Nm3/h | 18 | 27.9 | 37.4 | 54 | 90.7 | 136 | 178.2 | |
| Transportation weight (kg) | ≈400/420 | ≈550 | ≈600/700 | ≈1000/1050 | ≈1200 | ≈1800/2000 | ≈2600/2730 | |
| Boiler size | L (mm) | 800 | 900 | 1000 | 1200 | 1200 | 1430 | 1600 |
| W (mm) | 750 | 850 | 960 | 1150 | 1150 | 1380 | 1550 | |
| H (mm) | 1610 | 1620 | 1840 | 2080 | 2380 | 2600 | 2790 | |

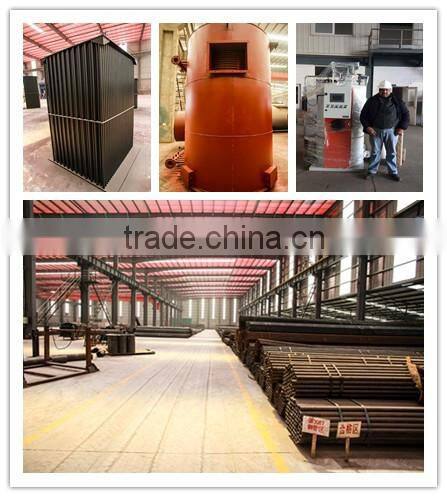

Our factory
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choice our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³

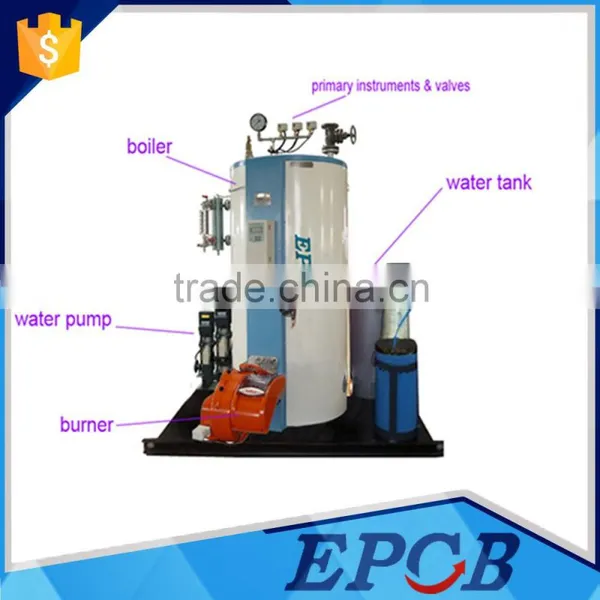

2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.


Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
