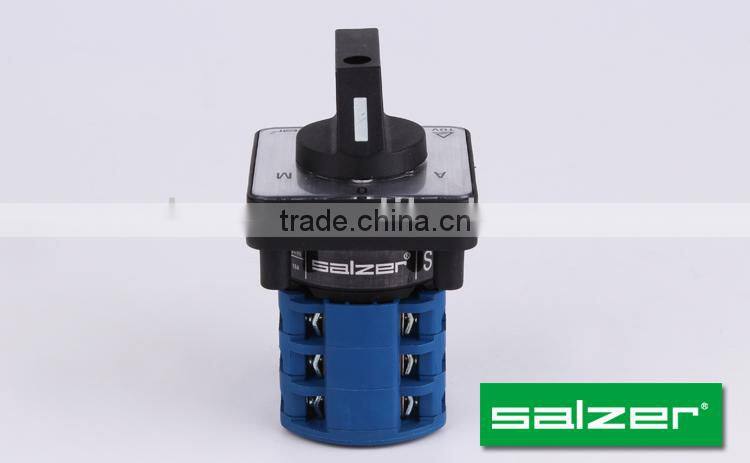

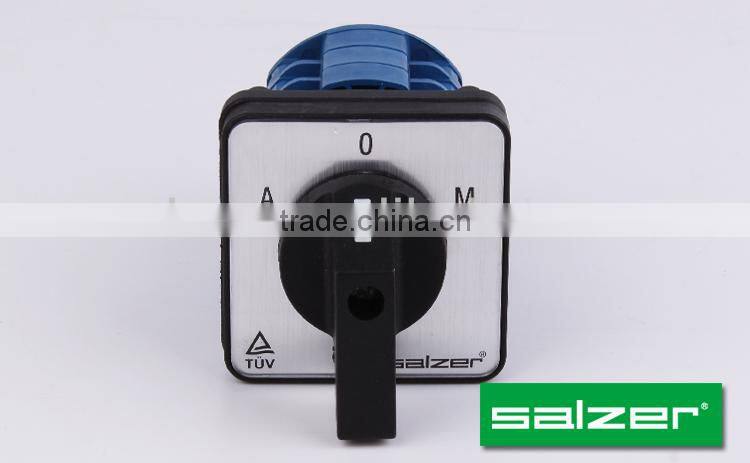

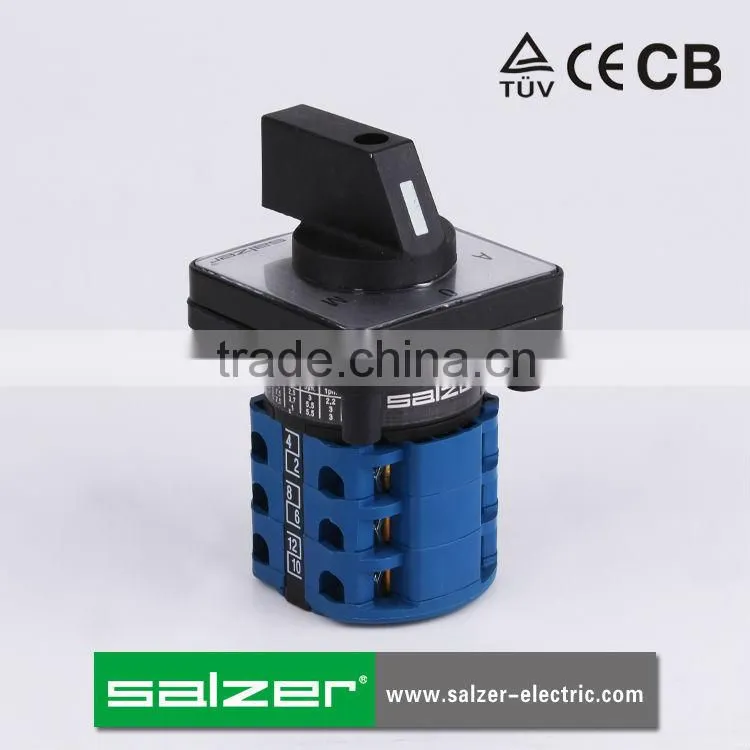

SALZER SA16 3-3 Changeover Switches (TUV,CE and CB Approved )
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SALZER
Model Number:
SA16 3-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Salzer AC Selector Switch (TUV, CE and CB Approved)NegotiableMOQ: 1 -
Salzer AC Change Over Switch (TUV, CE and CB Approved)NegotiableMOQ: 1
-
Salzer AC Rotary Switch (TUV, CE and CB Approved)NegotiableMOQ: 1
-
Salzer AC Rotary Switch 125A 1-0-2 (CE Certificate)NegotiableMOQ: 1
-
Salzer AC Rotary Switch 1-0-2 (TUV, CE and CB Approved)NegotiableMOQ: 1
Place of Origin
Zhejiang, China
Brand Name
SALZER
Model Number
SA16 3-3
Max. Current
16A
Max. Voltage
690VAC
Mechanical Life
100000Times
Specifications
Changeover Switches1) Current rating: 16A
2) TUV,CE and CB Approved
3)Function: A-0-M
SALZER SA16 3-3 Changeover Switches (TUV,CE and CB Approved )
SA Cam Switch
SA series cam switches offer a solution for cam switch applications. Different contact designs, contact materials and terminals allow for their use as control switches, instrumentation switches and motor control switches, as well as in electronic circuitry and in aggressive environments according to IEC 60947-3.
General Information
| Type | SA16, SA25, SA32, SA63, SA125, SA160 |
| Current | 16A, 25A, 32A, 63A, 125A, 160A |
| Max. Voltage | 690VAC |
| Pole | 1Pole, 2Pole, 3Pole, 4Pole |
| Plate Size | M1 (48X48mm), M2 (64x64mm), M3 (88x88mm) |
| Faceplate | A-0-M |
| Degree of Rotation | 30°, 45°, 60°, 90° |
| Ingress Protection | 16A and 25A has IP20 with finger protection. |
The cam switch is mainly applicable to circuit of 690VAC and below, 50/60Hz. The switch has 6 current ratings: 16A, 25A, 32A, 63A, 125A and 160A. There is finger protection for current of 16A, 25A and 32A.
Switches 16A to 32A have 2 to 12 positions and 1 to 12 stages with many different panels and handles. Switches 63A to 160A have 2 to 12 positions and 1 to 8 stages.
The degree of rotation: 30°, 45°, 60°, 90°
Function: Ammeter, Voltmeter, OFF-ON, 0-1, 1-0-2, A-O-M, FOR-OFF-REV, O-Y-Δ, Δ-Y-O-Y-Δ, 0-1-Star, Multi-step switches and so on
