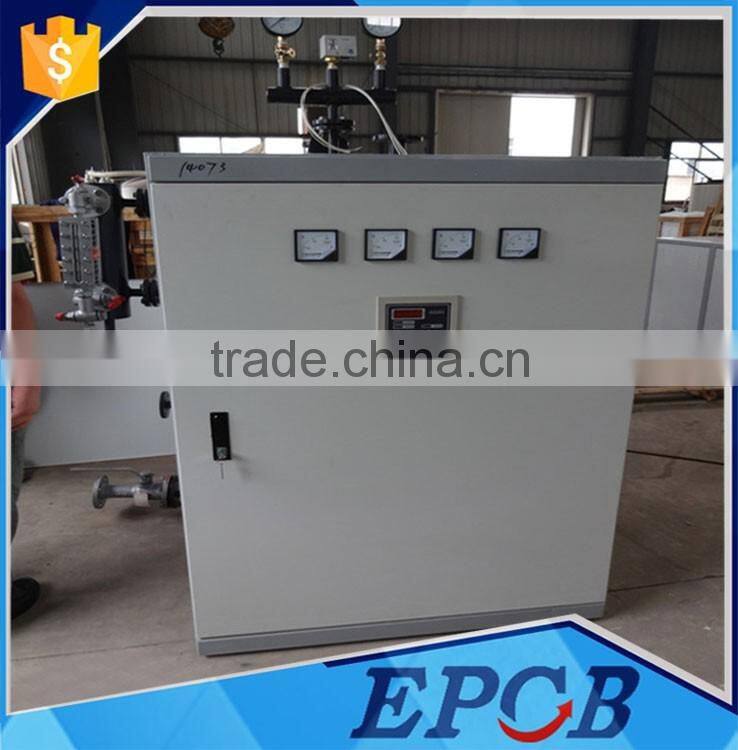

Portable Lower Pressure 1 Ton Superheated Mini Electric Steam Boiler
1)Customers in 77 countries
2)Efficiency >98%
3)3.5-2800KW
4)5-4000Kg electric steam boiler (steam generator)
FEATURES:
Each product is tested before ex-factory:
SGS test report (extension test, bending test and material test of steel plate, tube and welding rod)
- Strength calculation report
- X-ray inspection report (welding seam)
- NDT(non-destructive inspection) report of steel plate, tube and welding rod
- Hydraulic test
- Third-party inspection report: Shanghai Institute of Special Equipment Inspection & Technical Research
Good material:
- The most important part, ELECTRIC HEATING ELEMENT, made in our own workshop, using high grade nickel chrome alloy (temperature above 1000°C), magnesium rod and stainless steel. Seamless welding ensures 5-10 times of using life than usual products in China.
- Higher grade material of the pressure parts.
Comparison |
Our product |
Usual products in China |
Using life (Electric heating element) |
>2 years |
3-12 months |
Thickness (main body) |
>8 mm |
3 mm |
Thickness (flanges) |
20mm |
8mm |
Bolts on flanges |
High strength |
Ordinary type |
Low water cutoff device |
3 probes |
1 probe |
Safety valve |
Cast steel |
Cast aluminium |
Pressure control |
CE verified |
Ordinary type |
3. The electric parts and water pump are CE verified and different brands available.
4. Leakage protector for each heating element assures electrical safety.
5. Simple programme control ensures automatic water feeding, low water protection and alarm, extremely low water emergency stop, pressure protection, safety valve pressure relief, etc.
6. Special type available- stainless steel 304/316(L)
FULL STEAM OUTPUT WITHIN FIVE MINUTES
High grade nickel chrome alloy (temperature above 1000°C) in the ELECTRIC HEATING ELEMENT ensures fast heat transfer.
DRY STEAM
(Patent No. 517378) Unique cyclone steam-water separator ensures dry saturated steam output. (99% water off)
POPULAR ALL OVER THE WORLD
Customers in China: DUPONT, VEOLIA, MILLIPORE, Panasonic, TCL, CGET, LONHON, SEA-LION, etc.
Customers in 78 countries & regions:
Europe: Germany, U.K., Sweden, Holland, Spain, Russia, Hungary, Romania, Lithuania, Estonia, Slovenia, Ukraine, Georgia
America: U.S.A., Canada, Mexico, El Salvador, Costa Rica, Nicaragua, Brazil, Argentina, Ecuador, Chile, Paraguay, Saint Lucia, Netherlands Antilles, Peru
Africa: South Africa, Egypt, Algeria, Niger, Nigeria, D.R.Congo, Congo Brazzaville, Ghana, Tunisia, Botswana, Swaziland, Uganda, Zimbabwe, Sudan, Ethiopia, Tanzania, Angola, Gabon, Mozambique, Madagascar, Lesotho
Asia: China, Japan, Singapore, Malaysia, Philippines, Indonesia, Thailand, Myanmar, Vietnam, North Korea, South Korea, Mongolia, India, Sri Lanka, Pakistan, Kyrgyzstan, Uzbekistan, Kazakhstan, U.A.E. , Saudi Arabia, Kuwait, Qatar, Iraq, Israel, Lebanon, Turkey, Jordan
Oceania: Australia, New Zealand, Papua New Guinea
FACTORY ASSURANCE
- Electric heating element two year warranty
- One year parts warranty
- Spare parts available at ex-factory price
- Different voltage available
- Electric steam generator, electric steam boiler size ranging from 3.5KW to 2800 KW
- 100% tested before delivery
- Minimum installation on site, electrical hook up, water pipe connection, steam pipe connection and drain only
- Skid-mounted complete system available
- Complete system in container available
Specifications:
|
Model Items |
LDR0.3-0.7 |
LDR0.3-0.7 |
LDR0.5-0.8 |
LDR0.5-0.8 |
|
Output power |
180 KW |
210 KW |
300 KW |
360 KW |
|
|
Maximum working pressure (manual reset) |
<0.7MPa / 102PSI |
<0.7MPa / 102PSI |
<0.8MPa / 116PSI |
<0.8MPa / 116PSI |
|
Rated steam output |
258 KG/HOUR |
300 KG/HOUR |
430 KG/HOUR |
500 KG/HOUR |
|
Saturated steam temperature |
< 172°C |
< 172°C |
< 174°C |
< 174°C |
|
Electric heating element |
10 pieces of 18KW |
10 pieces of 21KW |
13 pieces of 23KW |
13 pieces of 27.7KW |
|
Efficiency |
> 98% |
> 98% |
|||
Material of main body |
20# carbon steel |
20# carbon steel |
|||
Thickness of main body |
8mm |
8mm |
|||
Voltage |
380V/made to order |
380V/made to order |
|||
Dimensions after installation |
L |
1300mm |
1300mm |
||
W |
1530mm |
1530mm |
|||
H |
2130mm |
2319mm |
|||
Shipping dimensions |
L |
1370mm |
1350mm |
||
W |
1600mm |
1650mm |
|||
H |
2100mm |
2100mm |
|||
Weight |
1000 kg |
1200 kg |
|||

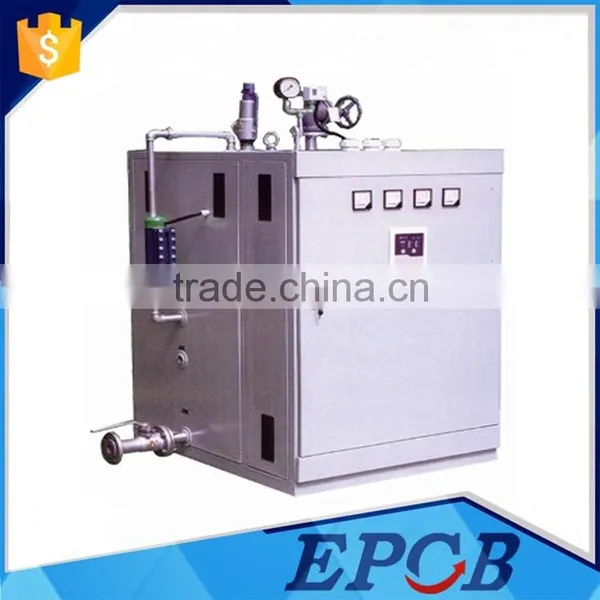

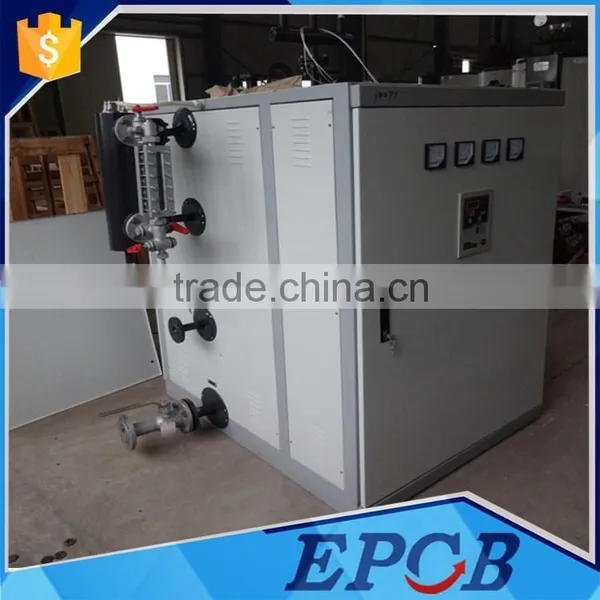

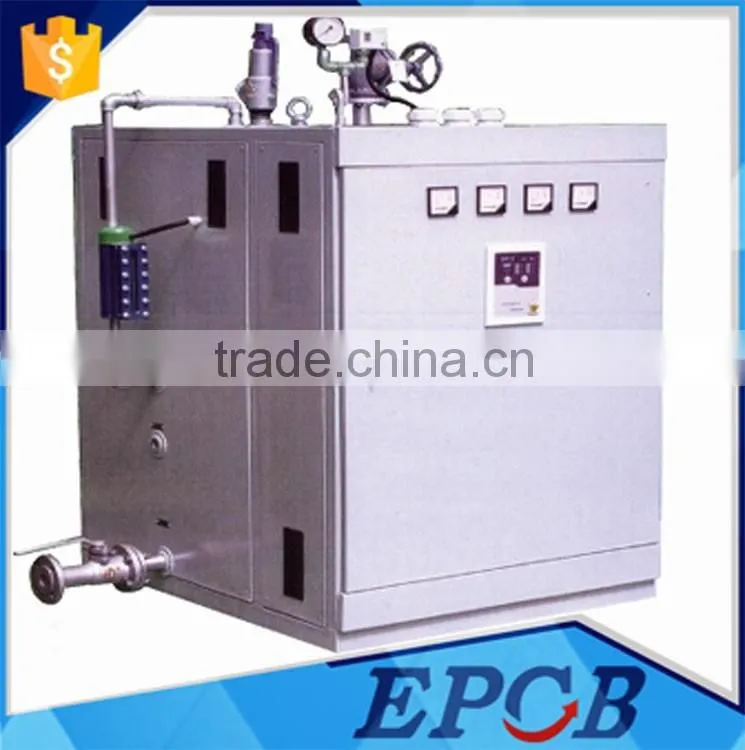

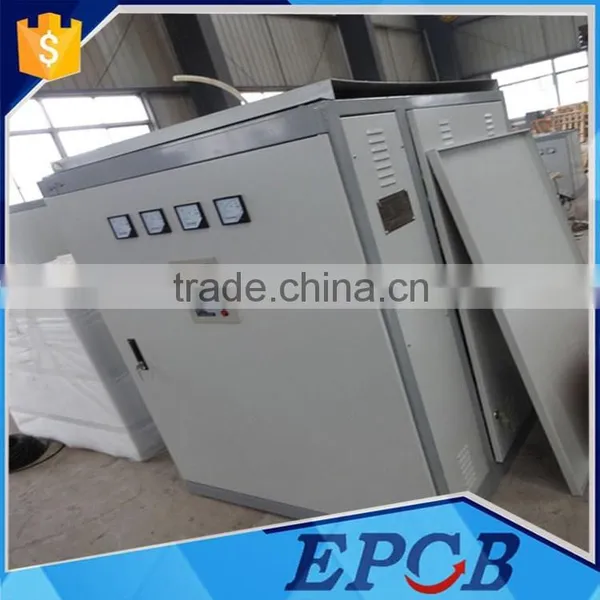

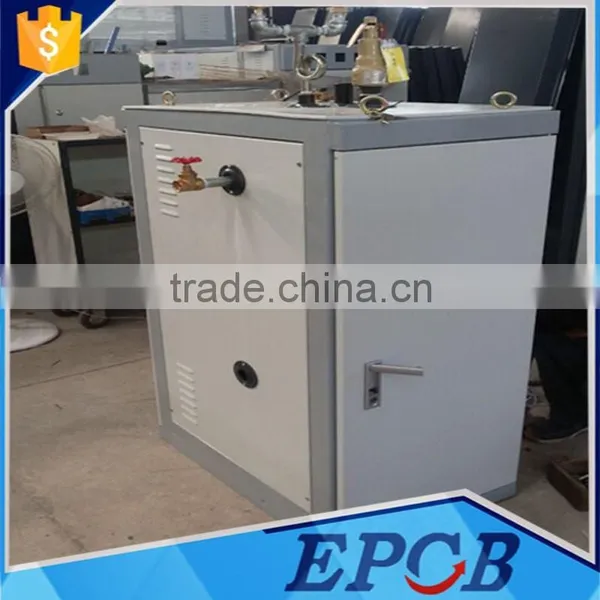

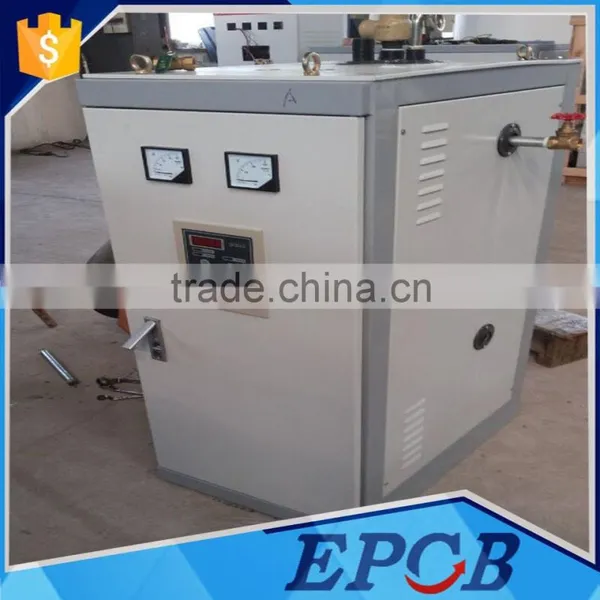

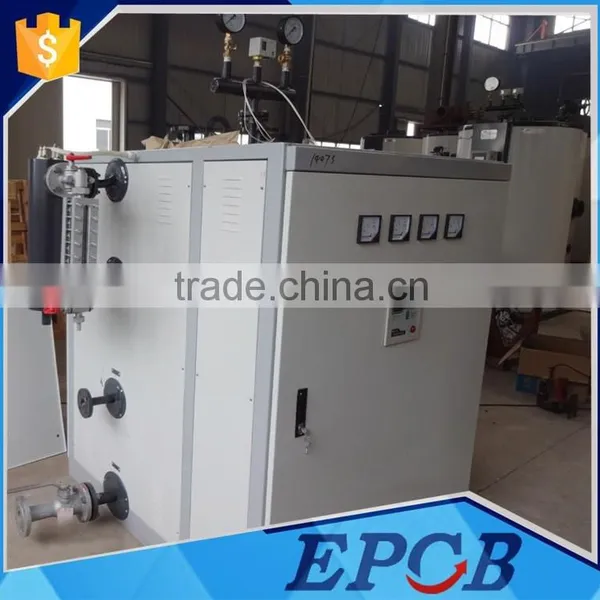

Pictures for Electric Steam Boiler
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
Manufacturer Recommend:
|
|

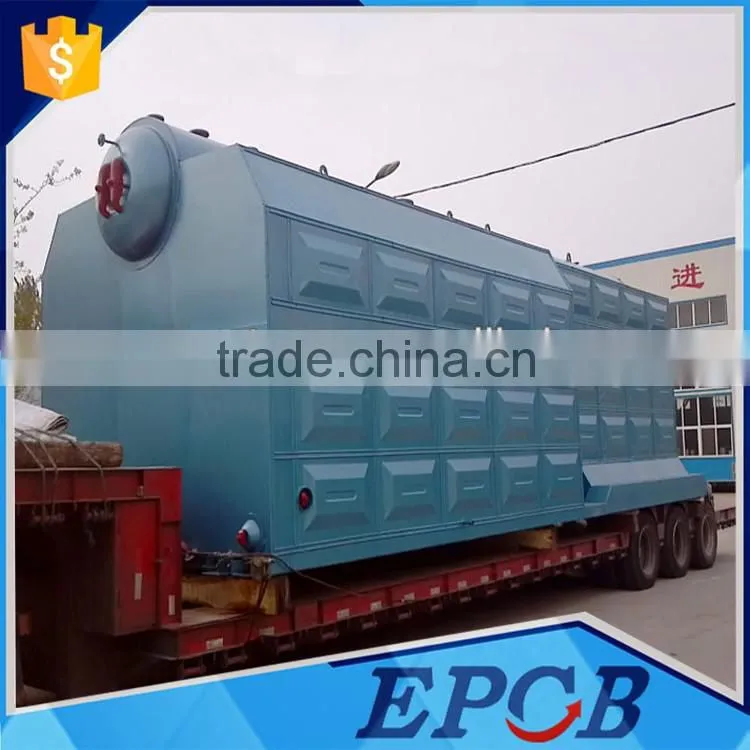

| SZL Series Coal or Biomass Fired Steam Boiler | DZL Series Coal or Biomess Fired Steam Boiler |
|
|
| YY(Q)L Series Oil Gas Fired Thermal Oil Boiler | Electric Steam Boiler/ Hot Water Boiler |
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
Boiler Aplication:
Steam boiler can be used for product manufacturing process in textile factory, printing and dying, papermaking, rubber industrial , plastic industrial , chemical, pharmaceutical, etc.; and Hot water boiler for heating room, bath, air conditional, and daily life water in the factories, departments and so on.
