Specifications
90-360KW Automatic Electric Steam Boiler1)Customers in 77 countries
2)Efficiency >98%
3)3.5-2800KW
4)5-4000Kg electric
Electric Steam Boiler , electric pasta boiler , small electric boiler
1)Customers in 77 countries
2)Efficiency >98%
3)3.5-2800KW
4)5-4000Kg electric steam boiler (steam generator)
FEATURES:
Each product is tested before ex-factory:
- SGS test report (extension test, bending test and material test of steel plate, tube and welding rod)
- Strength calculation report
- X-ray inspection report (welding seam)
- NDT(non-destructive inspection) report of steel plate, tube and welding rod
- Hydraulic test
- Third-party inspection report: Shanghai Institute of Special Equipment Inspection & Technical Research
Good material:
- The most important part, ELECTRIC HEATING ELEMENT, made in our own workshop, using high grade nickel chrome alloy (temperature above 1000°C), magnesium rod and stainless steel. Seamless welding ensures 5-10 times of using life than usual products in China.
- Higher grade material of the pressure parts.
Comparison |
Our product |
Usual products in China |
Using life (Electric heating element) |
>2 years |
3-12 months |
Thickness (main body) |
>8 mm |
3 mm |
Thickness (flanges) |
20mm |
8mm |
Bolts on flanges |
High strength |
Ordinary type |
Low water cutoff device |
3 probes |
1 probe |
Safety valve |
Cast steel |
Cast aluminium |
Pressure control |
CE verified |
Ordinary type |
3. The electric parts and water pump are CE verified and different brands available.
4. Leakage protector for each heating element assures electrical safety.
5. Simple programme control ensures automatic water feeding, low water protection and alarm, extremely low water emergency stop, pressure protection, safety valve pressure relief, etc.
6. Special type available- stainless steel 304/316(L)
FULL STEAM OUTPUT WITHIN FIVE MINUTES
High grade nickel chrome alloy (temperature above 1000°C) in the ELECTRIC HEATING ELEMENT ensures fast heat transfer.
DRY STEAM
(Patent No. 517378) Unique cyclone steam-water separator ensures dry saturated steam output. (99% water off)
FACTORY ASSURANCE
- Electric heating element two year warranty
- One year parts warranty
- Spare parts available at ex-factory price
- Different voltage available
- Electric steam generator, electric steam boiler size ranging from 3.5KW to 2800 KW
- 100% tested before delivery
- Minimum installation on site, electrical hook up, water pipe connection, steam pipe connection and drain only
- Skid-mounted complete system available
- Complete system in container available
Specifications:
|
Model Items |
LDR0.3-0.7 |
LDR0.3-0.7 |
LDR0.5-0.8 |
LDR0.5-0.8 |
|
Output power |
180 KW |
210 KW |
300 KW |
360 KW |
|
|
Maximum working pressure (manual reset) |
<0.7MPa / 102PSI |
<0.7MPa / 102PSI |
<0.8MPa / 116PSI |
<0.8MPa / 116PSI |
|
Rated steam output |
258 KG/HOUR |
300 KG/HOUR |
430 KG/HOUR |
500 KG/HOUR |
|
Saturated steam temperature |
< 172°C |
< 172°C |
< 174°C |
< 174°C |
|
Electric heating element |
10 pieces of 18KW |
10 pieces of 21KW |
13 pieces of 23KW |
13 pieces of 27.7KW |
|
Efficiency |
> 98% |
> 98% |
|||
Material of main body |
20# carbon steel |
20# carbon steel |
|||
Thickness of main body |
8mm |
8mm |
|||
Voltage |
380V/made to order |
380V/made to order |
|||
Dimensions after installation |
L |
1300mm |
1300mm |
||
W |
1530mm |
1530mm |
|||
H |
2130mm |
2319mm |
|||
Shipping dimensions |
L |
1370mm |
1350mm |
||
W |
1600mm |
1650mm |
|||
H |
2100mm |
2100mm |
|||
Weight |
1000 kg |
1200 kg |
|||

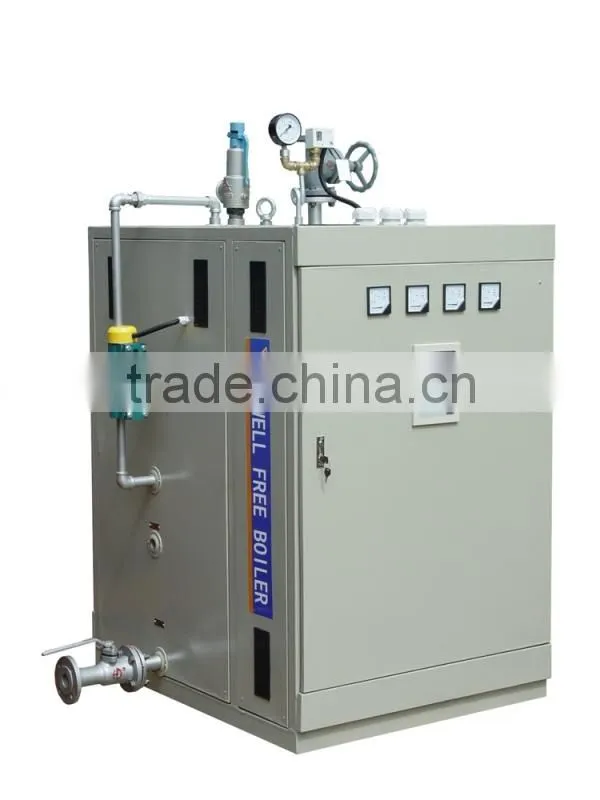

Pictures for Electric Steam Boiler
