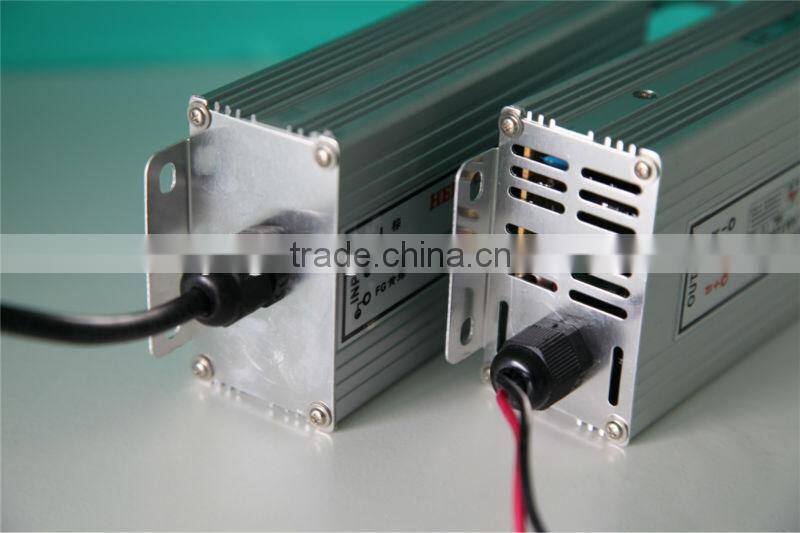

Help CenterHigh Reliability Factory Sell CE RoHS Constant Voltage Waterproof Single Output 12a 180w Led Driver 110v dc Power Supply
Related Products
-
CE Approved Single Output Constant Voltage Ac/dc 150W 5V 30A Psu Power Supply UnitUS$ 9.27 - 12MOQ: 1 Set -
dc Single Output 150w 36v Medical Power Supply With CE RoHSUS$ 8 - 15MOQ: 1 Set
-
Guangdong Manufacturer Sell Single Output Constant Voltage Acdc 150w 220v 3.3v Power SupplyUS$ 9.27 - 12MOQ: 1 Set
-
Manufacturing Company Sell ac to dc Single Output Constant Voltage 110v ac to 24v dc Power Supply 200wUS$ 11 - 17MOQ: 1 Set
-
CE RoHS 120w Open Frame Power Supply 12v 5vUS$ 3 - 15MOQ: 1 Set
Specifications
110v dc power supply 12a 180wCCC CE RoHS
Constant voltage
Input voltage: 90~132VAC/180~264VAC
High efficiency,reliability
15v power supply description:
Product name:HA-180W-15V 15v power supply
Rated power: 180W
Output voltage: DC15V
Water-proof
Over voltage protection: 16.5~20.25V
Over load protection: 110~115% rated output power
Ripple & Noise (max.): 150mVp-p
Over temperature protection: 100°C±5°
Trade Mark: HPower
Business type: Manufacturer/Factory
Certificates: CE, RoHS, CCC
Warranty: 2 years
110v dc power supply features:
v 8 hrs and 100% full load bult-in test
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v Universal AC input/Full range
v Bult-in constant current limiting circuit
v Forced air cooling by built-in DC ball bearing fan
v LED indicator for power on
110v dc power supply details:
180w Series, include output 5v, 12v, 15v, 24v and 36v.
| Model | HA-180W-5V | HA-180W-12V | HA-180W-15V | HA-180W-24V | HA-180W-36V | |
| Output | DC Voltage | 5V | 12V | 15V | 24V | 36V |
| Rated Current | 36A | 15A | 12A | 7.5A | 5A | |
| Current Range | 0~36A | 0~15A | 0~12A | 0~7.5A | 0~5A | |
| Rated Power | 180W | 180W | 180W | 180W | 180W | |
| Ripple & Noise (max.) | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 4.75~5.5V | 11.4~13.2V | 14.3~16.5V | 22.8~26.4V | 34.2~39.6V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| Load Regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Setup,Rise time | 600ms,30ms at full load | |||||
| Hold Up Time(Typ.) | 13ms at full load | |||||
| Input | Voltage Range | 90~132VAC/180~264VAC | ||||
| Frequency Range | 47~63HZ | |||||
| Efficiency(Typ.) | 82% | 82% | 85% | 87% | 90% | |
| AC Current (Typ.) | 5A/115VAC 3A/230VAC | |||||
| Inrush Current (Typ.) | 20A/115VAC 40A/230VAC | |||||
| Leakage Current | <2mA / 240VAC | |||||
| Protection | Over Load | 110~115% rated output power | ||||
| Protection type: Shut down O/P,re-power on to recover | ||||||
| Over Voltage | 5.5~6.75V | 13.2~16.2V | 16.5~20.25V | 26.4~32.4 | 39.6~48.6V | |
| Protection type: Shut down O/P,re-power on to recover | ||||||
| Over Temperature | 100°C±5°C(5V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others | |||||
| Protection type: Shut down O/P,recovers automatically after temperature goes down | ||||||
| Environment | Working Temperature | -20~+40°C | ||||
| Working Humidity | 20~90% RH Non-condensing | |||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | |||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | |||||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | |||||
| Safety & EMC | Safety Standards | UL60950-1 approved | ||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | ||||
| Dimension | 196*90*50mm (L*W*H) | |||||
| Packing | 0.67Kg; 28pcs/20.9Kg/1.88CUFT | |||||
| Note | 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. | |||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor. | ||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | ||||||
| 4. Derating may be needed under low input voltages. | ||||||
110v dc power supply structural drawing(Unit::mm):
110v dc power supply derating curve:
110v dc power supply applications:
1. LED display, led strip, nixie tube, street light, lamp;
2. Electrical equipment, Instrumentation;
3. LCD, LED, CCTV camera;
4. Digital and electronic products;
5. Building lighting decoration;
6. Communications and security products.
Our 110v dc power supply show room HEDY:
Our 110v dc power supply workshop HEDY:
110v dc power supply packing & delivery
Lead time: 7-15 days
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Ocean shipping: factory to port
ü Air transportation: factory to airport
