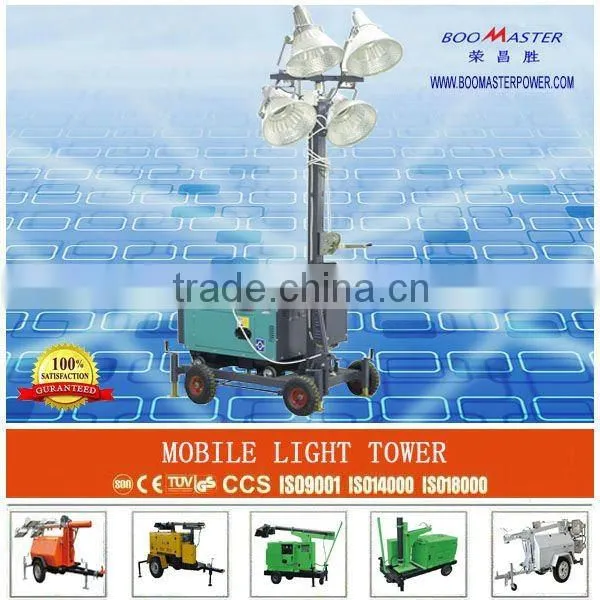

Mobile Light Tower

Name: Mobile Light Tower
Brand: Boomaster
SKU: 103706595
Availability: InStock

US$ 1,120 - 3,000 MOQ: 3 Sets

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Boomaster

Model Number:

BLT4000

Elephant Tech Fuzhou Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Boomaster

Model Number BLT4000

Output Type AC Single Phase

Speed 1500/1800rpm

Frequency 50/60HZ

Rated Voltage 120,220,230,240V

Specifications

Mobile Light Tower
1)Mechanical / Electric
2)CE,EPA,ISO9001
3)Single Phase
4)Water-cooled Diesel

Mobile Light Tower

Mast
Maximum extention of mast	9m
Elevation	Mechanical / Electric
Rasing / Lowing mast	Winch(Mechanical) / Button(Electric)
Stages	3
Turning angle	360 degree non-continuous

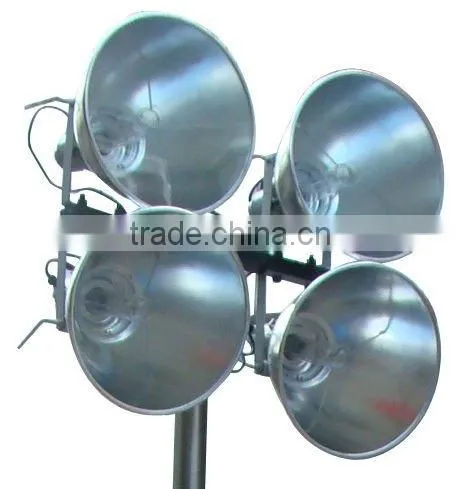

Lamp
Total power of lamps	4×1000W
Type of lamp	Metal halide lamp
Light capacity	4×110000 lumen
Frequency	50Hz / 60Hz
Lifetime of lamp	5000 hours
Working temperature	≤85°C
Connection protection index	IP54
Light Coverage	5 to 7 acres
Characterisitics of the generator
Model	DG6500
Rated power	50Hz 4.5 kW 60Hz 5.0kW
Standby power	50Hz 5.0 kW 60Hz 5.5kW
Voltage	120,220,230,240
Engine model	RP186FA
Engine speed	50Hz 3000 rpm 60Hz 3600 rpm
Starting systerm	Electric
Alternator	2-pole,brushless
Fule tank capacity	36L
Prime fuel consumption at 100% load	1.65L/h
Working hours	28
Control systerm	Mechanical control pannel
Power outlet	2
Trailer
Tow hitch	Ring or ball hitch
Stabilier Support	5 × manual
Tire Size	Diameter=52cm
Anti-wind capacity	≤10
Brakes	Manual
Dimension & Weight
Retracted Dimension	4400 × 1200 × 1930
Container load (20FT / 40FT)	8 / 16 (At least)
Net weight	680kg
