10kw Engine Mobile Generator Light Tower With CE/ISO

10kw Engine Mobile Generator Light Tower With CE/ISO thumbnail-1
10kw Engine Mobile Generator Light Tower With CE/ISO photo-1
US$ 2,000 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOOMASTER
Model Number:
BLT-10000
Contact Supplier Request Quote Chat Now
Elephant Tech Fuzhou Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name BOOMASTER
Model Number BLT-10000
Output Type AC Single Phase
Speed 1500RPM
Frequency 50HZ
Rated Power 5KW
Rated Voltage 220/380V

Specifications

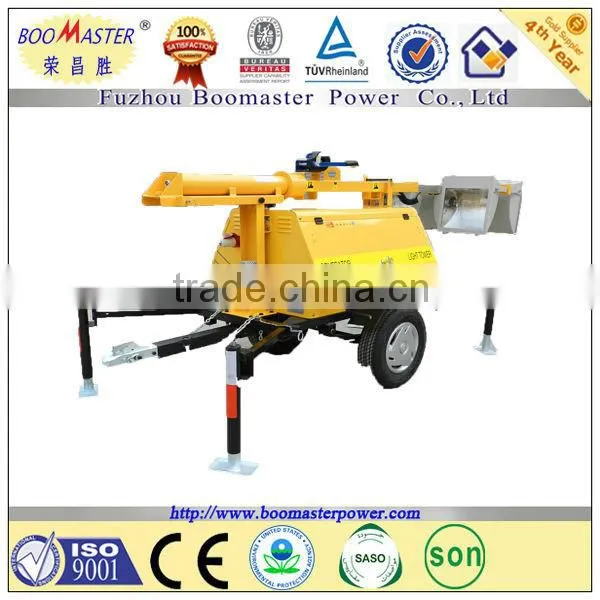

10kw engine mobile generator light tower with CE/ISO
1.generator engine:Kubota
2.Alternator:Stamford
3.4x1000w lamps

10kw  engine mobile generator light tower with CE/ISO



BLT10000Mobile Light Towers

Tower Light   Specifications   Dimensions(MM)
Height of Mast   9M
Power of Lamps   4*1000W Metal Halide, Square
Luminous Flux   440000lm
Elevation of Mast   Manual/Electric/Pneumatic
Raising/lowing of Mast   Manual/Electric
Rotation of Mast   360°, Manual
Windproof Ability   < 10M/S or 19KTS
Inclination   <10 degree
Lampholder   E40, Edison screw
Alternator
Alternator Type   Brushless, with AVR
Alternator Model   Stamford Leroy Somer Chinese Brand
  PI044F LSA40.VS2 164C
Frequency   50Hz             60Hz
Continous AC Power   10kVA            12 kVA
AC Voltage   110/220, 115/230, 120/240V etc.
Phase Number   Single Phase
Power Factor   1
Insulation Class   H   Bitmap
Engine
Engine Type   Water-cooled, 4-stroke, Diesel, 3-Cylinder
Engine Model   Kubota Perkins Quanchai
  D1505-BG 403D-22G QC480D
Aspiration   Natural
Emission Level   Stage2/Tier4 Stage2/Tier4 EU Stage A
Engine Speed   1500rpm             1800rpm
Fuel Capacity   120L (base tank)
Full Tank Operating   60 hr
Start System   Electric
Noise at 7M   70 db(A)
Trailer
Hitch   Ring or Ball
Tyre Diameter   520MM
Stablizing Legs   4 pcs, Manual
Suspension System   Leaf Spring Axle
Weight&Packing         Options
Net Weight   1060 kg   Cold weather starting kit
Gross Weight   1100 kg(Plywood Case)   Brake and Taillights
Retracted Size   4200x1370x1750 MM   Power input socket
20'GP Qty (units)   4 for Plywood Case/8 for nude packing   Round/elliptic lamps, 4*1500W,6*1000W
40'HQ Qty (units)   8 for Plywood Case/16 for nude packing   AL-KO suspension system
Bitmap














 10kw engine mobile generator light tower with CE/ISO10kw engine mobile generator light tower with CE/ISO10kw engine mobile generator light tower with CE/ISO
