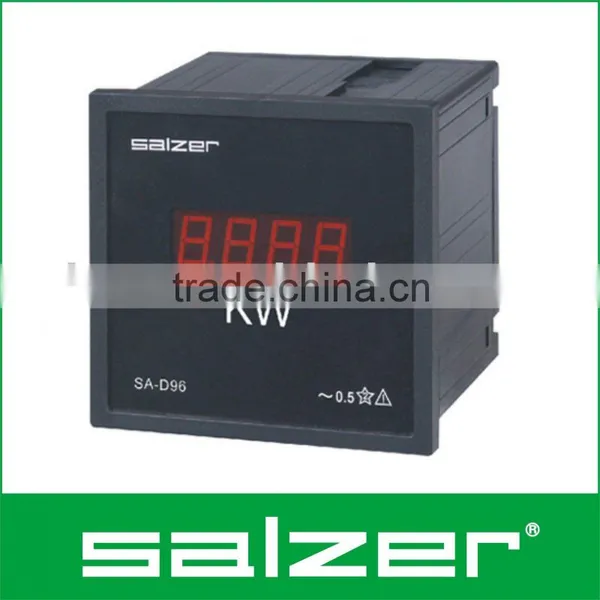

Salzer Brand Digital Power Panel Meter

Specifications

Display: 4 digits LED display.
Accuracy: 1.0% and plusmn 2 digits
Measuring range: Max 1999
Outer Size: 96x96mm or 72x72mm

Name: 96 Digital Single Phase Power Panel Meter, 96 Digital Three Phase Power Panel Meter.

Model: SA-D96 W 1P, SA-D96 W 3P

Display: 3 1/2 digits LED display.

Accuracy: 1.0% ± 2 digits.

Auxiliary power: AC 110V ± 10% 50/60Hz or 220V ± 10% 50/60Hz.

Input signal: AC current 0-1A or 0-5A, It must be connected by suitable AC current transformers.

                     If the current more than 5A. AC Voltage 110V or 220V, AC voltage 220V or 380V.

Measuring range: Max 1999.

Consumption: <3VA.

Operating Environment: Temperature 0Deg ~ 40Deg, humidity: equial or less then 70%.

Withstand Voltage surge: Over 2000V.

Outer Size: 96x96mm or 72x72mm
