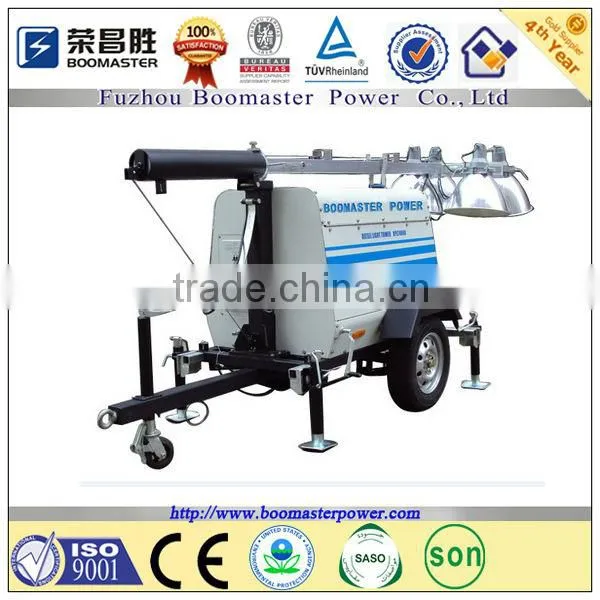

1000b Mobile Light Tower With Diesel Generators Quality Choice

Name: 1000b Mobile Light Tower With Diesel Generators Quality Choice
Brand: BOOMASTER
SKU: 103705909

US$ 10 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

BOOMASTER

Model Number:

BMLT-4000 mobile light tower

Elephant Tech Fuzhou Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any ports in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name BOOMASTER

Model Number BMLT-4000 mobile light tower

Output Type AC Three Phase

Speed 1500RPM/1800RPM

Frequency 50Hz/60Hz, 50HZ/60HZ

Rated Power 8-10kw

Rated Voltage 220/230/110/400/440v

Rated Current as per voltage

High quality hot sale mobil light tower

Technical date

Product Model	BMLT-4000
Length (mm)	2784 (2260, dismantle the tow bar )
Width (mm)	1360
Height (mm)	2170
Mast Heigth(Fully Extended)	9m
Weight (net)	1150 kg
Engine Brand	Kubota		Yanmar		Perkins
Engine model	D1105		3TNV76		403D-11G
Frequency (Hz)	50	60	50	60	50	60
Speed (rpm)	1500	1800	1500	1800	1500	1800
Continued Power (kVA)	7	9	7	9	7	9
Number of Cylinders	3
Diesel Engine Characters	4 cycle, In line, Watercooled Diesel
Combustion Type	Precombustion		Indirect Injection		Indirect Injection
Engine Aspiration	Natural
Emission Level	Stage3	Tier4	Stage3	Tier4	Stage2	Tier4
Alternator Brand	Mecc alte / Lisite
Alternator Model	STG164A
Frequency (Hz)	50	60	50	60	50	60
Continued Power (kVA)	6	7.5	6	7.5	6	7.5
Alternator	Brushless & Single phase
Rating Voltage (V)	230
Alternator Insulation	H
Fuel Tank Capacity	135 liters (35 US Gallons)
Fuel Tank Operating Hours	65 hours
Type of Lights	Metal Halide Floodlight (Chinese Brand)
Number & Power of Lights	4×1000W
Mast Lifting & Extension	Hydraulic operation
Number of Mast Section	8
Mast Rotation	359° Manual operation
Light up-down turning	Manual operation
Mast Base Support	90°Vertically
Trailer Suspension System	rubber Torsion axle (Al-ko)
Braking System	Inertia drum braking with stable towing height, parking brake
Hitch	Ball / O ring
Tire Rim Size	14”
Output Socket	2PCS(230V, 10A)
Acoustic Pressure	65dB(A) at 7 meters away
Load Capacity for 40'GP (Units)	8
