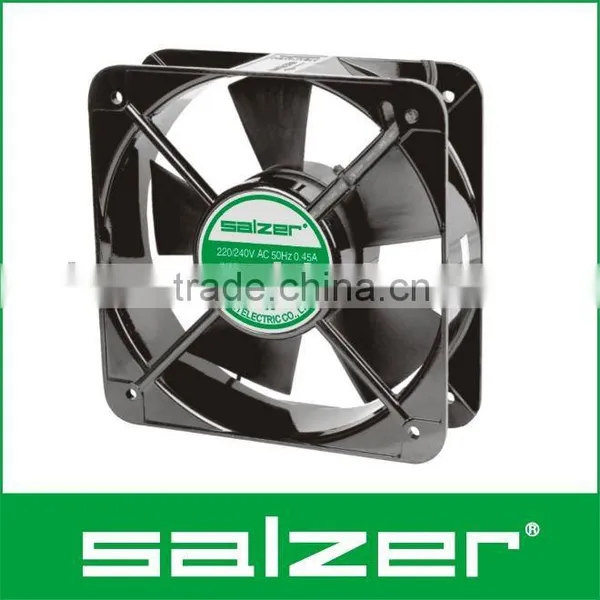

Salzer AC Ventilation Fan 200X200X61MM TUV, CE Approved

Specifications

Dimension: 200X200X61mm
Voltage: 110VAC or 220VAC or 380VAC, Ma
Material: Metal frame and Plastic blade
IP54

Electric motor: Shaded Pole type AC electric motor design

Bearing: Sleeve bearing and Ball bearing

Insulation: Class B

Insulation impedance: The case adds 500V DC to the coils, insulation impedance more then 100M6Ω

Dielectric strength: 0.5mA 1500V/AC min

Safety protection: Imedance protection

Operating temperature: -10 ~ +70°C

Storage temperature:-40 ~ +70°C
