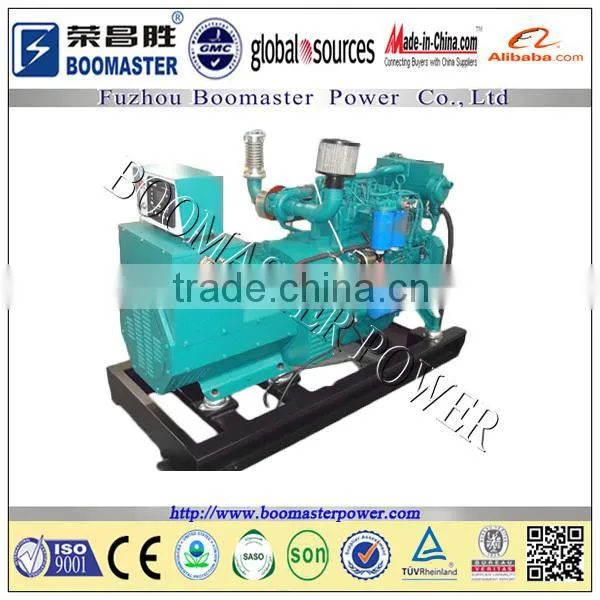

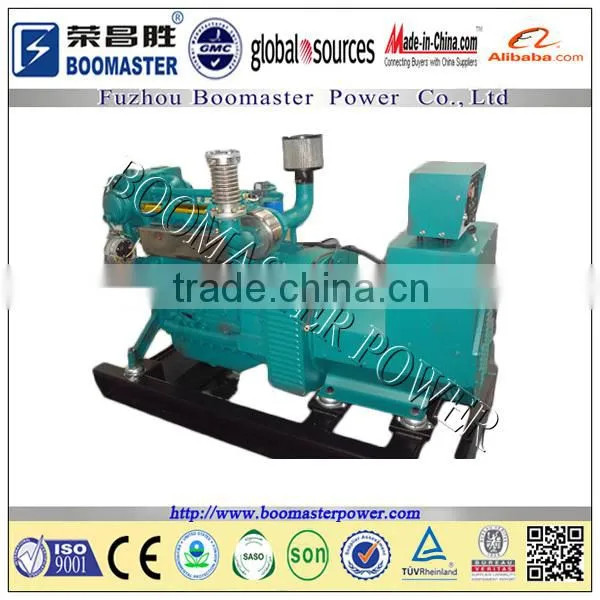

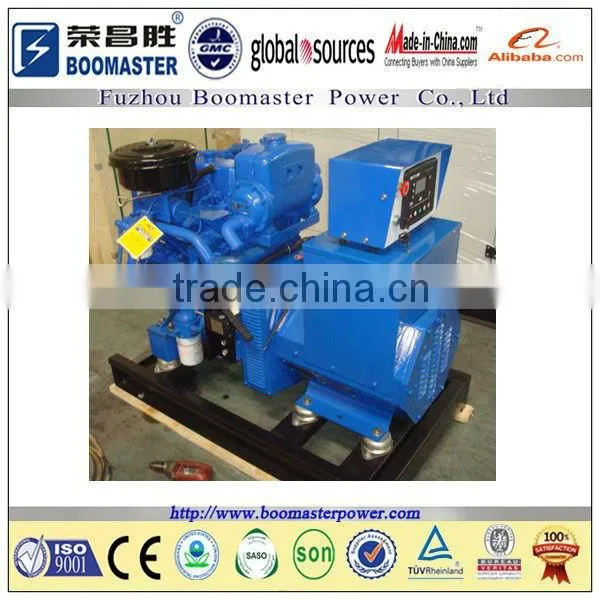

100kva used Weich CCS marine diesel generator

Specifications

100kva used Weich CCS marine diesel generator
1.rated power:30 to 300kva
2.50/60hz
3.opent type

100kva used Weichai Deutz Marine Diesel generator

1)Data of Generator Set



Technical Data
Marine Gensets Model			MG-100
Rated capability (KVA)			100
Rated Power (KW)			80
Alternator Model	Marine Brushless Insulation Class H		TFW2-H-80
Marine Diesel Engine Model			TD226B6CD
Rated output of engine(KW)			90
Cylinder No.			6
Bore*Stroke			105*125
Rated Voltage(V)			380/220
Phase/Connection			3Ph×4W
Rated Frequency(Hz)			50
Power Factor(COSφ)			0.8
Rated speed (r/min)			1500
Fuel consumption (g/kw.h)			≤210
Starting type			Electric
Overall Dim.		L	2000
(mm)		W	850
		H	1350





Alternator Features:

1. Stamford, Leroy Somer, Marathon

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

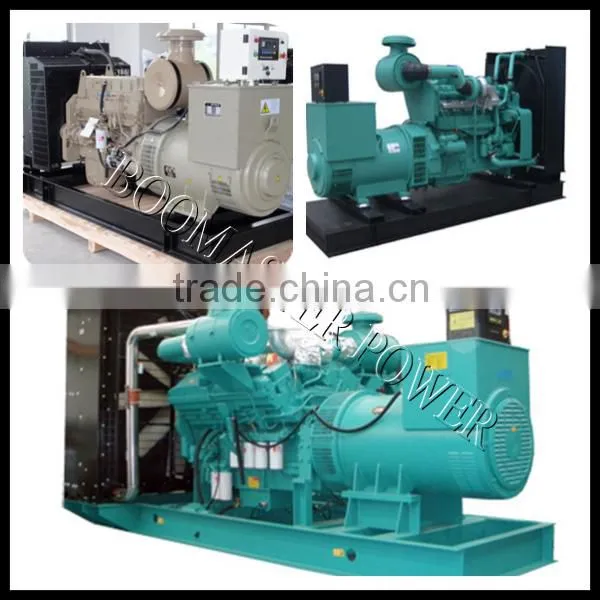

Other pic:
