SALZER PD280M-220 Axial Flow Fans With Metal Impeller 280X280X80mm (TUV, CE Approved)

Yueqing Leyi Electric Co., Ltd.
SALZER PD280M-220 Axial Flow Fans With Metal Impeller 280X280X80mm (TUV, CE Approved) thumbnail-1
SALZER PD280M-220 Axial Flow Fans With Metal Impeller 280X280X80mm (TUV, CE Approved) photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Other
Blade Material:
Other, Plastic(UL94V-0 70%PBT+30%FRP)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Other
Blade Material Other, Plastic(UL94V-0 70%PBT+30%FRP)
Place of Origin Zhejiang, China
Brand Name SALZER
Model Number PD280M-110, PD280M-220
Voltage 110VAC, 220VAC
Power 115W, 127W,155W,175W
Air Volume 1060CFM, 1150CFM
Speed 2520RPM,2680RPM
Certification CE, Other, CE, TUV

Specifications

Dimension: 280X280X80mm Axial Flow Fans
Insulation grade: F
Material: Metal frame and Plastic blade
IP54

SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm

AC Axial Fan with Metal Impeller

280X280X80mm AC Axial Fan with Metal Impeller

General Information
1) Motor: capacitor-run external rotor induction motor
2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)
3) Insulation resistance: 100MΩ or over with a DC 500V Megger
4) Insulation grade: F; Protection grade: IP54
5) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz
6) Allowable ambient temperature range: -20-+90°C(operating);-40-+90°C(storage)

Material
Casing: The casing of the AC axial fan is made of die-cast aluminium
Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)
Bearing: Ball bearing

Technical Parameters of AC Axial Fan with Metal Impeller

Dimension (mm)  Model                   Vol-
tage
(AC)		Freq-
uency
(Hz)		Current (AMP)Power (Watts)Speed (PRM)Air Flow (CFM)/
M3/h		Pres-
sure (Pa)		Noise (dBA)Weight (Gram)
280x280x80

PD280M-110

115501.0011525201060/1800120682900

PD280M-110

115601.3015526801150/1950120702900

 PD280M-220

 230  50  0.5612725201060/1800120 68 2900

PD280M-220

230600.7817526801150/1950120702900

SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)

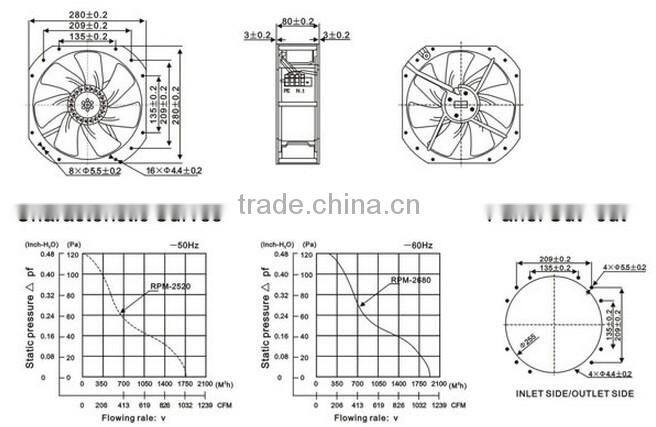

Outline drawing

SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)





We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000



SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)



About us

Aug., 2002 YUEQING LEYI ELECTRIC CO., LTD. WAS FOUNDED.

Dec., 2002 Singed agent with our Thailand customer.

Jul., 2003 Got the UL certificate for our cam switch SA16.

Nov., 2003 Our expertise in the field has earned us membership in the China Chamber of.

Commerce for Import and Export of Machinery and Electronic Products (CCCME).

May, 2004 Cooperated with ALIBABA, becoming one of the first Chinese gold suppliers.

Oct., 2005 Singed agent with our Mexico customer.

Jan., 2006 Singed agent with our Indonesia customer.

Apr., 2006 Successfully registered our SALZER brand in China.

Jan., 2007 Got the UL certificate for our wire THHN/THWN.

Dec., 2007 Singed agent with our Turkey customer.

Sep., 2008 Got the UL certificate for our axial fan PD120B/S.

Jun., 2010 Singed agent with our Russia customer.

Aug., 2010 Singed agent with our Poland customer.

Oct., 2013 Got TUV, CE and CB certificates for our cam switch SA16, SA25 and SA32.

Jan., 2014 Singed agent with our Philippines customer.

Mar. 2014 Got TUV, CE and CB certificates for our cam switch SA40, SA63 and SA80.

May, 2014 Got TUV, CE and CB certificates for our pushbutton SA22 series and LED lamp PL16-22.


May, 2014 Got TUV, CE certificates for our axial fan PD Series.







SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)

SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)

 SALZER PD280M-220 Axial Flow Fans with Metal Impeller 280X280X80mm (TUV, CE Approved)



More detail informations, please feel free to contact us!
