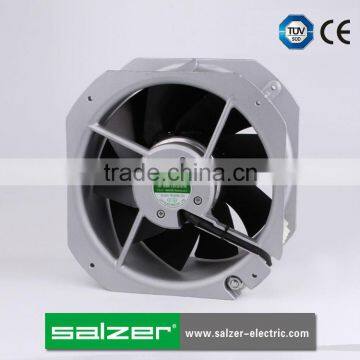

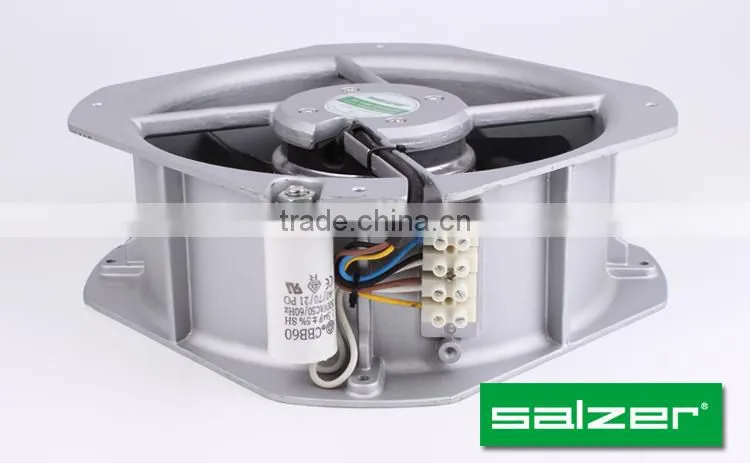

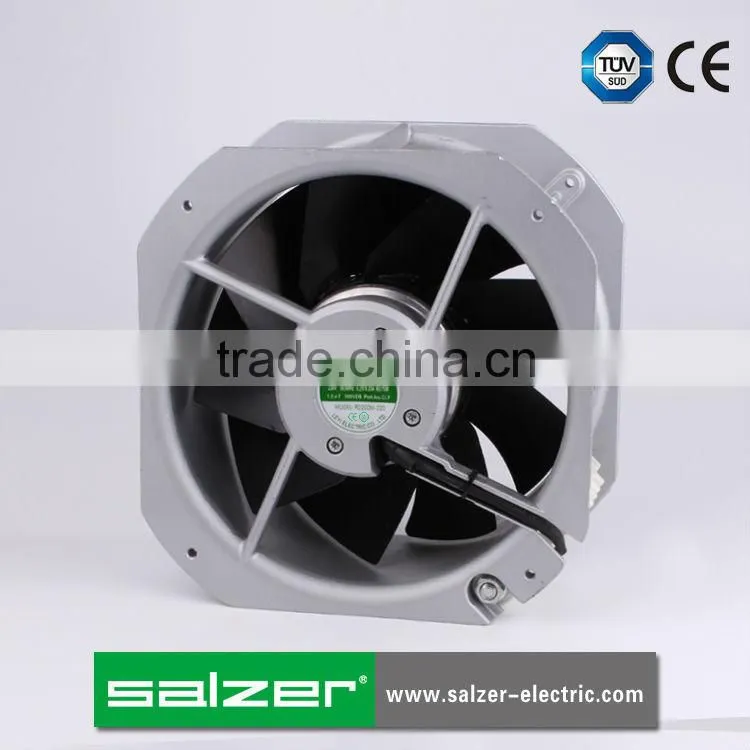

SALZER PD200M-220 225X225X80mm AC Axial Fan with Metal Impeller

AC Axial Fan with Metal Impeller

225X225X80mm AC Axial Fan with Metal Impeller

General Information
1) Motor: capacitor-run external rotor induction motor
2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)
3) Insulation resistance: 100MΩ or over with a DC 500V Megger
4) Insulation grade: B; protection grade: IP54
5) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz
6) Allowable ambient temperature range: -20-+90°C(operating);-40- +90°C(storage)

Material
Casing: The casing of the AC axial fan is made of die-cast aluminium
Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)
Bearing: Ball bearing

Technical Parameters of AC Axial Fan with Metal Impeller
