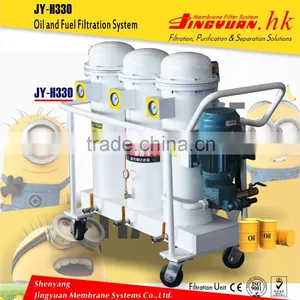

JY-H330 Used Hydraulic Oil Filter Machine/oil Purifier Units

JY-H330 used hydraulic oil filter machine/oil purifier units

Excellent Performance:

New polymer membrane filtration technology
Capacity 20 tons daily with continuous working pattern
Minimum precision can be  2 μm
Filter elements in various precison from 2~20 μm
Filter elements with acid and alkali resistance
Can be used as by-pass filter with 380V electric anti-explosion motor
Emulsified and Free water removal
Selectivity-pass characteristic of 3D pore structure polymer membrane material
3 tanks design in 4 levels filtration
High interception rate and low filtration cost
Lightweight appearance and small operating space
Filter elements can be used repeatedly after back-washed
Design service life is more than 20 years (except for filter elements)

Technical Parameters:
1.Model Type: JY-H330
2.Flow Rate: 30~40 L/min
3.Filtration System:
(1)Polymer Membrane Filter Elements (Can be used repeatedly after washing)
J22-401L------------------------------------------------------------10μm
J22-401H------------------------------------------------------------5μm
(2)Filter Element Quantity: 100 Pieces
(3)Function: Remove impurity particles, colloid and water
(4)Working Pressure: 0.2~0.35 Mpa
(5)Filtration Level: 4
(6)Service life: 2~3 Years or longer
4.Filtration Precision:
(1)Range: 2,5,10,15,25 μm
(2)Standard: 5~10 μm
5.Mouth:
Standard: DN20 or According to Requirements
6.Security:
With Pressure Safety Valve
7.Temperature:
Working Temperature: -10~70 ºC
8. Dimension: 1160*450*1000mm
9.Weight:148KG
10.Anti-hazard Classification: Grade 2
11.Power System:
(1)Electric Motor:380V
(2)Pump: Gear Pump

 Function:

Special filter pump, extract the oil from the system tank,first cross a Magnetic filter and strainer,make the oil cross jingyuan membrane filter element,The oil from the outer edge of the membrane filter into,Clean oil flow from the center of the membrane filter hole,Impurities and moisture trapped on the outer edge of the membrane filter.

Maintenance:

when the pressure table up to 0.5~0.6Mpa,Indicate membrane filter clogging need cleaning(when use the machine must notice this),Check the maintenance filter can greatly improve the service life of filter element.

Filter element:

Jingyuan membrane filter element,the average age is 2~3 years or more (Associated with oil and cleaning maintenance)

Flow:

ferrite particle can be hold back first by Magnetic filter tank,then the first filter can remove big particles,after that, the second/third membrane filter element can remove small particle and water element .

Solid particle pollution is lead to hydraulic and lubrication system failure and not work,it is the most common factor.so before the oil into the system,must need filtration. The new oil without purification ,its pollution is often more than the actual of the requirements of the oil in the hydraulic system.due to the new oil has The initial high pollution levels, the most new oil is not suit for use directly. There are many causes of the new oil pollution,All kinds of pollutants,No matter particles or moisture,it is likely mix with new oil in processing,Mixed processing and storage.

Advantage:

1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted: We can produce any your design.

3. Good Service: We treat clients as friend.

4. Good Quality: We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
