Specifications
axial flow impeller fan1)Material: Metal frame and Plastic blade

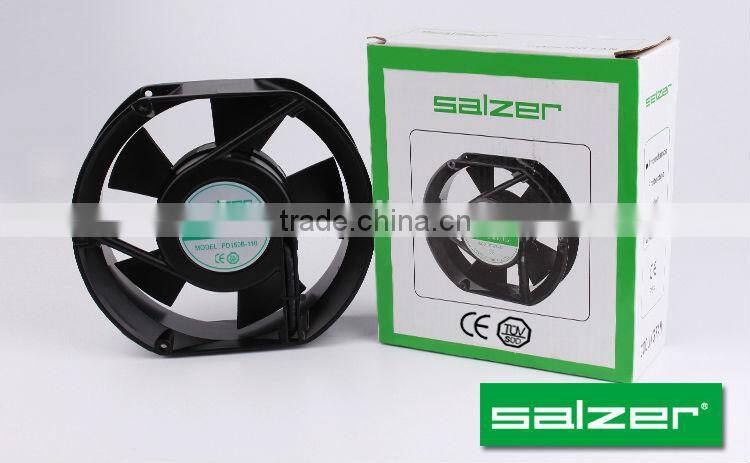

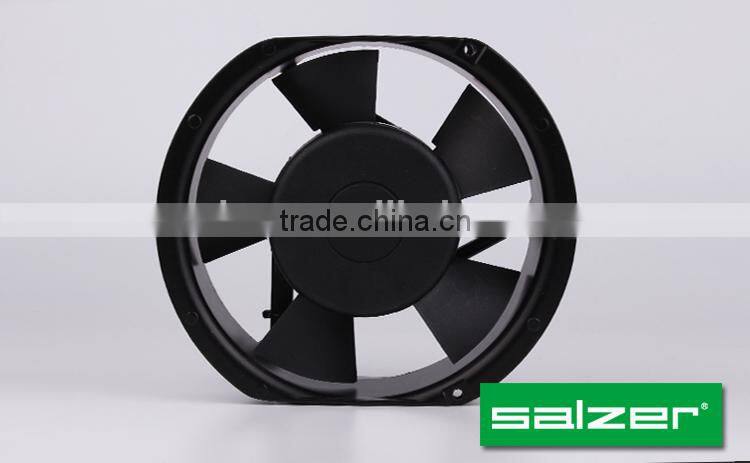

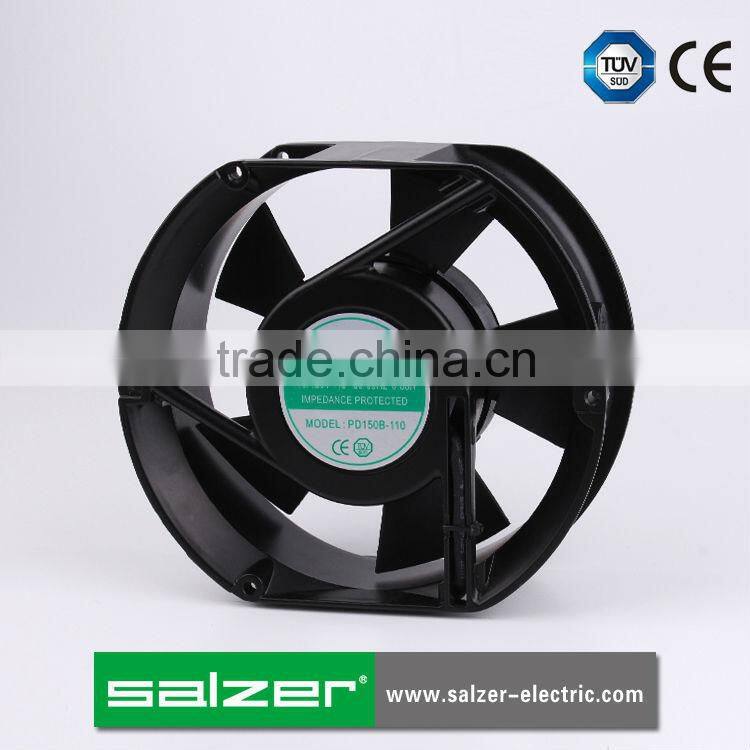

Salzer PD150B-110 axial flow impeller fan
General Information
Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: UL94V-0, 70% PBT, +30% FRP
Bearing: Sleeve bearing and ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C
Ordering Information
150X172X51mm AC Axial Fan
This type of axial fan has got UL Certificate (No. E312553).
Technical Parameters of AC Axial Fan
| Dimension (mm) | Model | Voltage (VAC) | Current (AMP) | Speed (RPM) | Air Flow (CFM) | Pressure (Inch/H2O) | Noise (dBA) | Weight (Gram) |
| 150x172x51 | PD150B-110 | 115 | 0.33 | 2500 | 180 | 0.38 | 49.6 | 870 |
| PD150B-220 | 230 | 0.18 | 2500 | 180 | 0.52 | 55 | 870 | |
| PD150B-380 | 380 | 0.14 | 2500 | 180 | 0.38 | 49.6 | 870 |

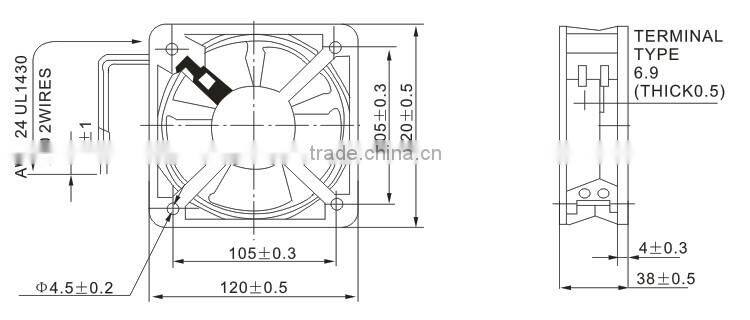

Outline drawing
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
