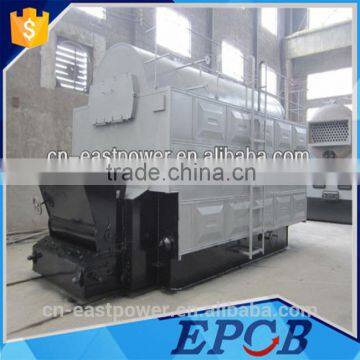

Hot Sale Wood Rice Husk Biomass Fired Steam Boiler

1. Single Drum Biomass Steam Boiler Characteristic

1, The usage of high-performance heat transfer components - threaded pipe, with a reasonable gas flow rate, the boiler thermal efficiency is higher 6-8 percentage points than the state high professional standards.
2,Arch tube plate, thread to make pot pipe from the quasi-rigid body shell variable based elastomer with the airfoil stack, completely avoid the defects that traditional high-temperature pyrotechnic tube boiler tube plate cracking.
3, Reasonable and unique water circulation loop backwater ejector device (hot water boiler), improved the increased water velocity, to avoid the water-wall tube break.
4, The usage of inertial separation of dust furnace, supplemented by high-performance multi-collector, so that the concentration of dust emission boiler to meet the demand for a class.

2. Single Drum Biomass Steam Boiler Advantage:

1.Safety: with water level, leakage steam, steam pressure control. Make sure boiler working safety.

2.Product quality ensured by:Strength calculation report , hydraulic test, X-ray, non-destructive test.

3.Efficient: well insulation and excellent structure.

4. Spirally conrrugated tube increase the strength and also meets the needs of heat expansion of each parts.

Single Drum Biomass Fired Steam Boiler

 ItemType

DZL2-1.0-M DZL2-1.25-M

DZL4-1.25-M

DZL6-1.25-M

DZL8-1.25-M

Rated capacity t/h

2

4

6

8

Rated steam pressure Mpa

1.0/1.25

1.25

1.25

1.25

Rated steam temperature°C

184/194

194

194

194

Feed water temperature°C

20

20

20

60

Heat efficiency %

80

81

83

85

Fuel consumption  kg/h

358

707

1036

1382

largest size of boiler transportation mm

length

5290

6258

6630

7486

width

2240

2700

3150

3200

height

3400

3814

4186

3650

weight of largest parts of boiler ton

20.8/21.9

29

32

35

If you need parameter, please feel free to let me know.

4. Our Main Product scope:

1.WNS series Horizontal oil gas fired boilers (0.5-30T/H, 0.7-14MW)

2. SZS serires Horizontal Oil gas fired boiler (4- 35T/H )

3. LHS series Vertical Oil gas fired boiler (0.1-2 T/H, 0.06-0.7MW )

4. DZL new type water fire tube boilers / Single Drum Wood Biomass Steam Boiler (1-35T/H, 0.7-29MW)

5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)

6. SHX boiler boiler ( 10--35 T/H)

7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )

5. Company Introduction

Spirit: Supply Reliable & high efficient heating system.

1, More than 600 sets of boilers (5000 t/h) can be produced by us per year. Class A boiler manufacturer. Class A1, A2 pressure vessel manufacturer.

2, Each boiler system parts is from first class brand all over the world or China.

3, Strict quality control system. From the material, welding, to finished boiler shipment. From project establishment, drawing design, to final audit.

4, We are the stable and long term supplier of many Top 500 Groups all over the world. Such as PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca cola, etc,.

ntact information:

 If any needs ,pls feel free to contact with me

Qingdao East Power Industry Equipment Co., Ltd

Skype:epboiler1

Add: Hi-technology Industrial Park, Qingdao, Shandong, China

Why do you choose us? --Our Competitive Advantage

1. Class A boiler manufacturer.

2. Standards :ASME, GB,ISO9001, CE, AS, GOST.

3. Boiler running life > 20 years.

4,100%safety, running stably, excellent water level and pressure control, fully automatic operation.

5. Provide the best quality accessories for boiler safe and long running.

6,Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.

7,We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.

8, Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
