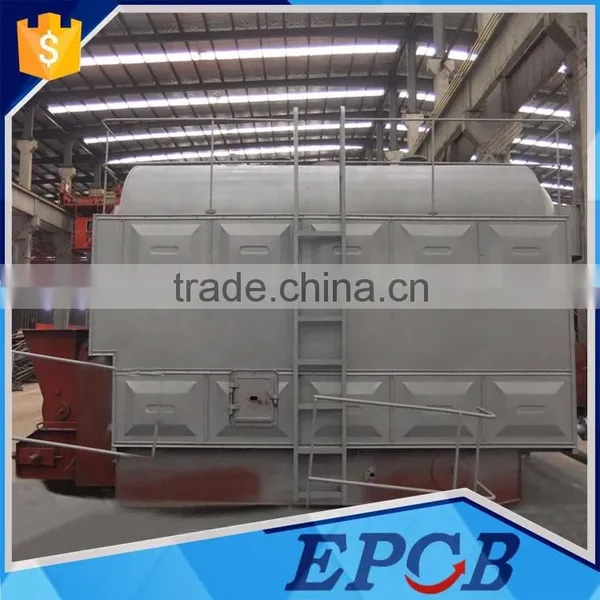

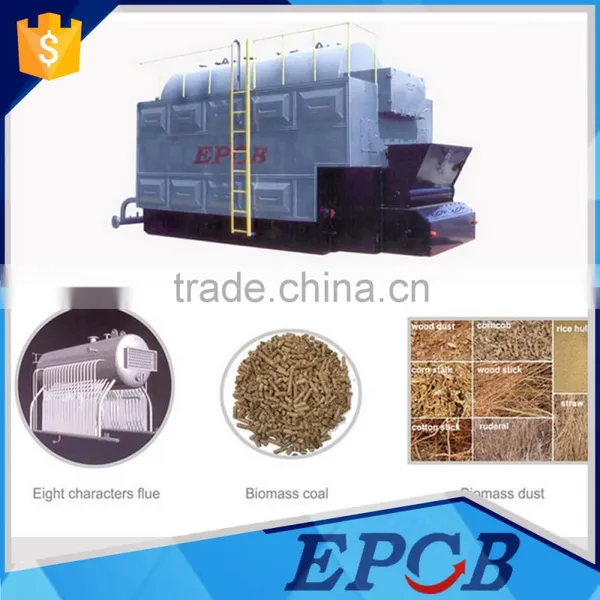

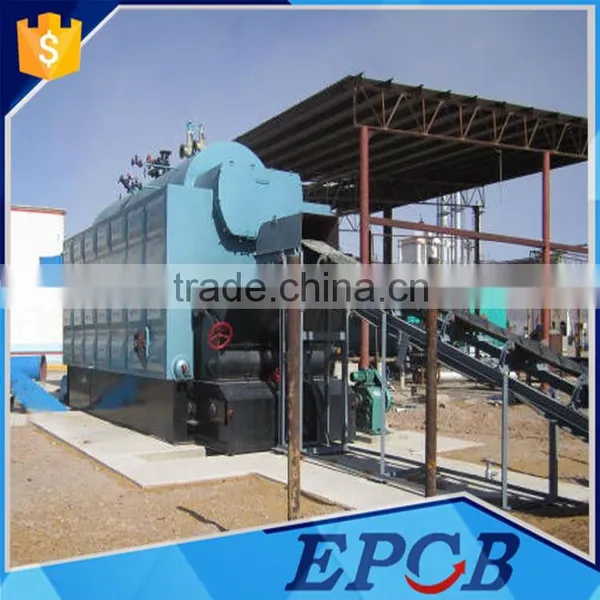

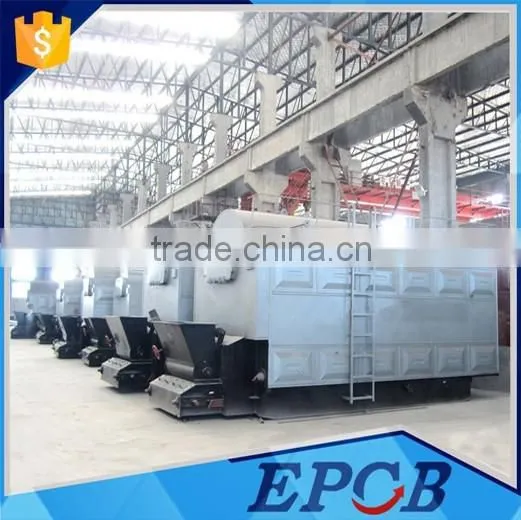

High Quality DZL Series Biomass Fired Steam Boiler With Reasonable Price
Features of DZL Steam Boiler:
1. The body adopts single drum structure, water tube and fire tube mixed design, full layout of heating surface and high thermal efficiency;
2. Mechanized combustion;
3. Environment friendly and energy saving;
4. Complete auxiliaries and high self-control;
5. The body and the base are separately delivered. The installation cycle is short and the installation cost is low.
6. Boiler capacity from 1-35ton/hr, or 0.7-24.5MW, pressure from 7-25bar
7. DZL series hot water boiler capacity from 0.7-24.5MW
8. Multi-fuel burning, coal fired, wood fired, husk and garbage fired, biomass fuel fired.
| DZL series Biomass-fired steam boiler technique parameter | ||||||||
| ItemType |
DZL1- 1.0-M |
DZL2-1.25-M | DZL3-1.25-M | DZL4-1.25-M |
DZL6- 1.25-M |
DZL8- 1.25-M |
DZL10-1.25-M | |
| Rated capacity t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
| Rated steam pressure Mpa | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Rated steam temperature C | 184 | 194 | 194 | 194 | 194 | 194 | 194 | |
| Feed water temperature C | 20 | 20 | 20 | 20 | 20 | 60 | 105 | |
| Heated area M² |
radiation/ convection |
4.55/20.12 | 7.8/41.5 | 9.5/50.6 | 11.9/79 | 17.4/108.1 | 25.7/172.1 | 25/237.6 |
| Fuel consumption kg/h | 179 | 358 | 531 | 707 | 1036 | 1382 | 1648 | |
| effective area of boiler M2 | 1.8 | 3.04 | 3.34 | 5.14 | 8.12 | 10.9 | 12 | |
| largest size of transportation | length | 4876 | 5290 | 5360 | 6258 | 6630 | 7486 | 7600 |
| width | 1800 | 2240 | 2240 | 2700 | 3150 | 3200 | 3200 | |
| height | 2870 | 3400 | 3500 | 3814 | 4186 | 3650 | 4000 | |
| weight of largest parts of boiler ton | 13.5/14.2 | 20.8/21.9 | 22.1/23 | 29 | 32 | 35 | 47 | |
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choose our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
Boiler Aplication:
Steam boiler can be used for product manufacturing process in textile factory, printing and dying, papermaking, rubber industrial , plastic industrial , chemical, pharmaceutical, etc.; and Hot water boiler for heating room, bath, air conditional, and daily life water in the factories, departments and so on.
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
