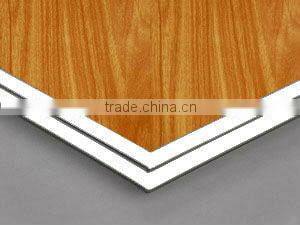

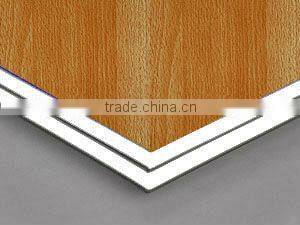

A2 Fire Retardant Aluminum Composite Panel

Specifications

In recent years, there have occured many heavy fire events in China and other places in the world. It’s mainly because the building applied the flammbale building decoration materials.Such as Aluminum Plastic Composite Panel, Because the middle core is LDPE , which is easy flammble materials, so the building decorated with Aluminum Plastic Composite Panel will be easy fired in case of fire. New Mstar Technology make research and produce Alumstar Grade A2 FR Aluminum Composite Panel under this kind of condition. The reaction to fire classification of Alumstar Grade A2 FR Aluminum Composite Panel : A2, S1, d0, t0. So that our Alumstar Grade A2 FR Aluminum Composite Panel can protect the building well far from the fire.

Standard Alumstar Grade A2 FR Aluminum Composite Panel (ACP) Introduction:

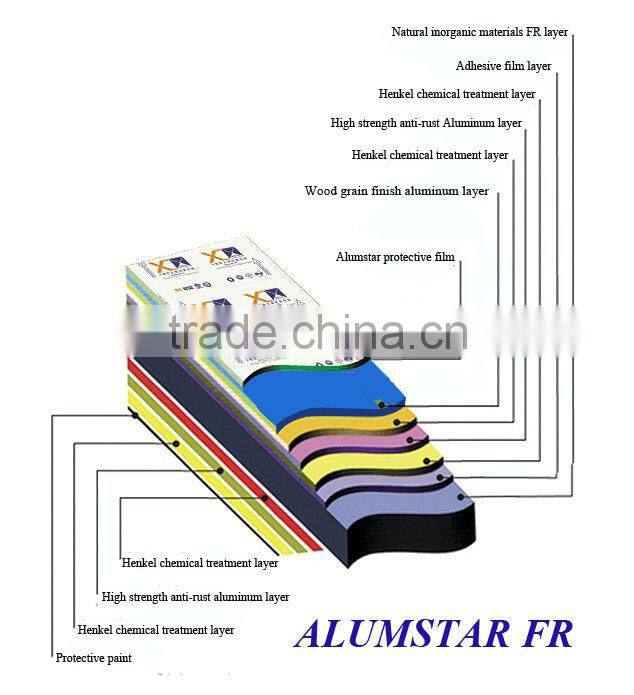

Alumstar grade A2 FR ACP is made by one layer of natural inorganic mineral material core and two layers of anti-rust high strength aluminum plates, between the layer of natural inorganic mineral material core and the layer of anti-rust high strength aluminum plate, there have one special adhesive film, constantly solidify and laminate under high temperature. The anti-rust high strength aluminum plate firstly pass the chemical cleaning treatment, in order to erase the dirty on the surface of aluminum plate, make one layer of special treatment film layer, then make the polyester (PE) or fluorocarbon resin paints ( PVDF) coating with Wood Grain Finish Pattern in the rolling coating machine. Alumstar Grade A2 FR ACP is one new innovation and creation in the building decoration panel fields. Because Alumstar brand panel is one kind of composition of distinct metal and non-metallic materials, which not only keep the original composited materials main characteristics, but also conquer the inadequacy of the original composited materials. And then get numerous excellent material behavior. The front and back side aluminum plates belong to the metal, which is non-combustible materials. The middle core is the natural inorganic mineral materials, such as magnesium hydroxide, aluminum hydroxide, talcum powder, light calcium carbonate, etc. All of the natural inorganic mineral materials will be stirred and mixed together under adding special catalysts, then cohered as middle core. All of them are green flame-retardant inorganic materials with multi-function of retarding, suppressing smoke and filling. The refractory temperature of Alumstar Grade A2 FR Aluminum Composite Panel is more than 1200°C . The reaction to fire classification of Alumstar brand FR Aluminum Composite Panel is : A2, S1, d0 , t0 .

Both the production line and formula of Alumstar Grade A2 FR Aluminum Composite Panel are our own engineers’ innovation and creation, also have got patent certificates sperately.

Standard Specification of Alumstar Grade A2 FR ACP :

Quality Standards of Alumstar Grade A2 FR ACP :

Advanced Features of Alumstar Grade A2 FR ACP :

Ø Fire-proof & Flame-retardant (Grade A2,S1,d0,t0)

Ø Green Environmental Protection

Ø Sound-insulation & Heat-insulation

Ø Excellent Anti-seismic & Quakeproof performance

Ø Water-proof & Moisture-proof

Ø Excellent mechnical property

Ø High intensity & Light weight

Ø Durable (PVDF coated Alumstar Grade A2 FR ACP with 20 years quanlity warranty)

Ø Smooth surface & Precise dimension

Ø Elegant Appearance

Ø Easy Fabrication

Ø Convenient Installation

Application of Alumstar Grade A2 FR Aluminum Composite Panel:

Exterior & Interior decoration for curtain wall of Office building, Star hotel, Government building, Pulic building,etc.
Interior & Exterior wall decoration of subway(metro) station, railway station, public bus station,etc.
Interior decoration for Nava ships and boats, Mail steamer,etc.
Interior decoration board for Bus,Trains, High-speed trains and multiple unit,

Elvator interior decoration .

Tunnel inteior decoration.

Fire-proof decoration wall of KTV, Hospital, Restaurant.
