Product Details
| Place of Origin | Jiangsu, China | Brand Name | Banda | |
| Model Number | BD-YJ350 |
Product Description
VVVF Elevator Geared Traction Machine BD-YJ350
1.Max. Static Load:37900 kg
2.Control: VVVF
3.Speed:0.25-2.0m/s
Elevator Traction Machine, Lift Tractor, Lift Motor, Geared Elevator Motor Traction Machine,AC1,AC2,VVVF Lift Machine, Gearless Traction Machine for Elevator,VVVF Traction Machine
VVVF Elevator Geared Traction Machine Specification:
| Roping | Load(kg) | Speed(m/s) | Ratio | Sheave (mm) | Power(Kw) | Pole | RPM | Current(A) |
| 1:1 | 2000 | 1.75 | 61:2 | 800-25x16x8 | 37 | 4 | 1274 | 68 |
| 1:1 | 3500 | 1.0 | 61:1 | 800-25x16x8 | 37 | 4 | 1456 | 68 |
| 1:1 | 3500 | 1.5 | 61:2 | 800-25x16x8 | 55 | 6 | 1092 | 110 |
| 1:1 | 3500 | 2.0 | 61:2 | 800-25x16x8 | 63 | 4 | 1456 | 113 |
| 2:1 | 3000 | 1.0 | 61:2 | 800-25x16x6 | 30 | 4 | 1456 | 60 |
| 2:1 | 4000 | 1.0 | 61:2 | 800-25x16x8 | 37 | 4 | 1456 | 68 |
| 2:1 | 5000 | 1.0 | 61:2 | 800-25x16x8 | 45 | 4 | 1456 | 81 |
| 2:1 | 6000 | 0.5 | 61:1 | 800-25x16x8 | 30 | 4 | 1456 | 60 |
| 2:1 | 7000 | 0.5 | 61:1 | 800-25x16x8 | 37 | 4 | 1456 | 68 |
| 2:1 | 8000 | 0.5 | 61:1 | 800-25x16x8 | 45 | 4 | 1456 | 81 |
| 2:1 | 10000 | 0.5 | 61:1 | 800-25x16x10 | 55 | 4 | 1456 | 110 |
| 4:1 | 14000 | 0.5 | 61:3 | 800-25x16x8 | 63 | 6 | 971 | 113 |
| 8:1 | 20000 | 0.25 | 61:3 | 800-25x16x10 | 55 | 6 | 971 | 110 |
| 8:1 | 28000 | 0.25 | 61:3 | 800-25x16x10 | 63 | 6 | 971 | 113 |

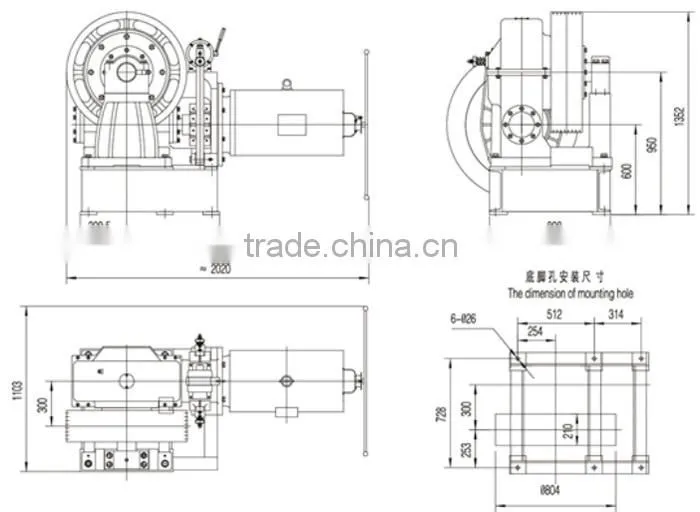

VVVF Elevator Geared Traction Machine Drawing:

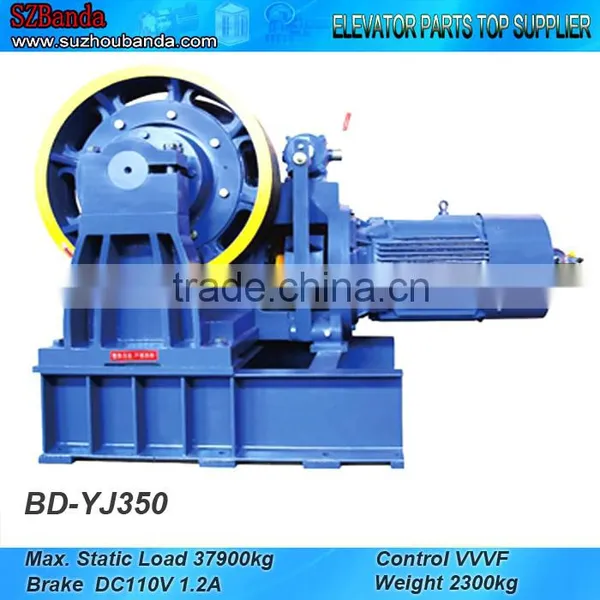

Elevator Geard Traction Machine Picture:
Elevator Geared Traction Machine Delivery:
30Days based on advance payment.
Elevator Geared Traction Machine Shipping:
By sea, by air, by DHL,TNT,UPS, Fedex, Aramex, and so on.
Elevator Geared Traction Machine Packing:
