VVVF Elevator Geared Traction Machine BD-YJ250B Lift Motor
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai port
You May Like
-
VVVF Elevator Geared Traction Machine BD-YJ225, Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ256, Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ300, Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ350, Lift Motor
-
Elevator Gearless Traction Machine BD-MY06, Lift Motor
-
Elevator Gearless Belt Traction Machine BD-100, Lift Motor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Banda | |
| Model Number | BD-YJ250B |
Product Description

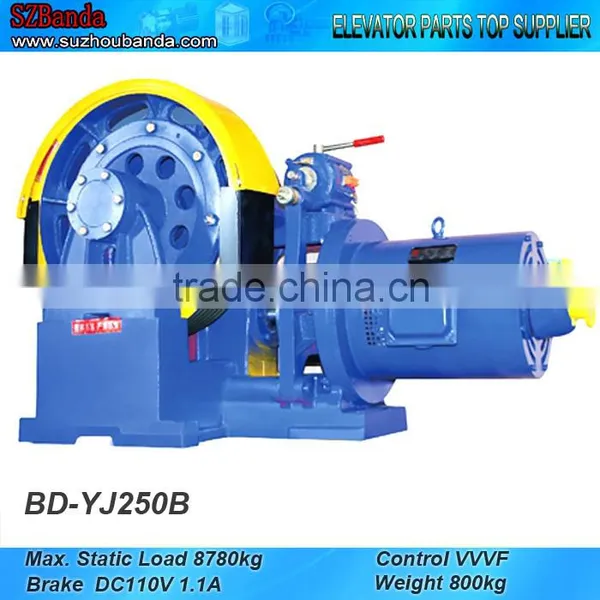

VVVF Elevator Geared Traction Machine BD-YJ250B
1.Max. Static Load: 8780 kg
2.Control: VVVF
3.Speed:0.5-1.26m/s
Elevator Traction Machine, Lift Tractor, Lift Motor, Geared Elevator Motor Traction Machine,AC1,AC2,VVVF Lift Machine, Gearless Traction Machine for Elevator,VVVF Traction Machine
Product Description

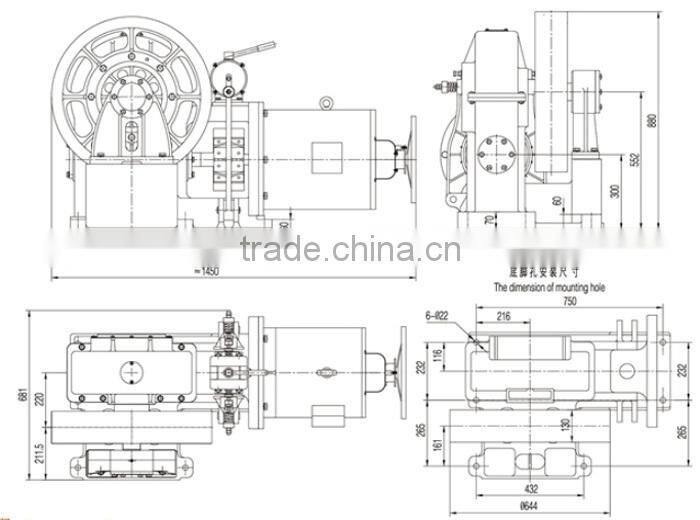

VVVF Elevator Geared Traction Machine Drawing:
VVVF Elevator Geared Traction Machine Specification:
| Roping | Load(kg) | Speed(m/s) | Ratio | Sheave(mm) | Power(Kw) | Pole | RPM | Current(A) |
| 1:1 | 1000 | 1.0 | 61:2 | 610-20x13x5 | 11 | 6 | 955 | 24 |
| 1:1 | 1600 | 1.0 | 63:2 | 640-23/25x16x5 | 15 | 6 | 940 | 32 |
| 1:1 | 1600 | 1.26 | 63:2 | 640-23/25x16x5 | 18.5 | 4 | 1184 | 35.5 |
| 2:1 | 2000 | 0.5 | 61:2 | 610-20x13x5 | 11 | 6 | 955 | 24 |
| 2:1 | 2000 | 0.63 | 61:2 | 610-20x13x5 | 13 | 4 | 1203 | 25 |
| 2:1 | 3000 | 0.5 | 63:2 | 640-23/25x16x5 | 15 | 6 | 940 | 40 |
| 2:1 | 3000 | 0.63 | 63:2 | 640-23/25x16x5 | 18.5 | 4 | 1184 | 35.5 |

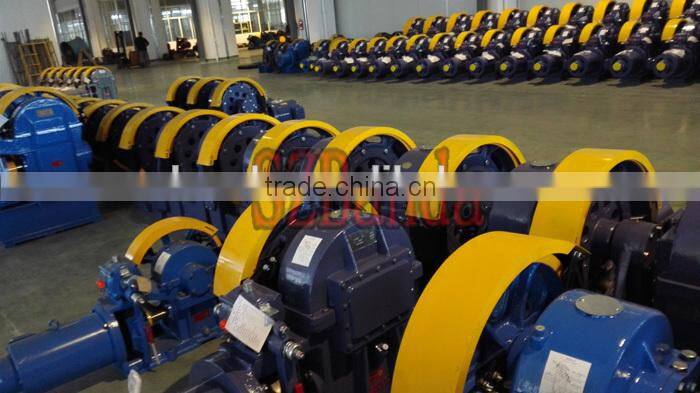

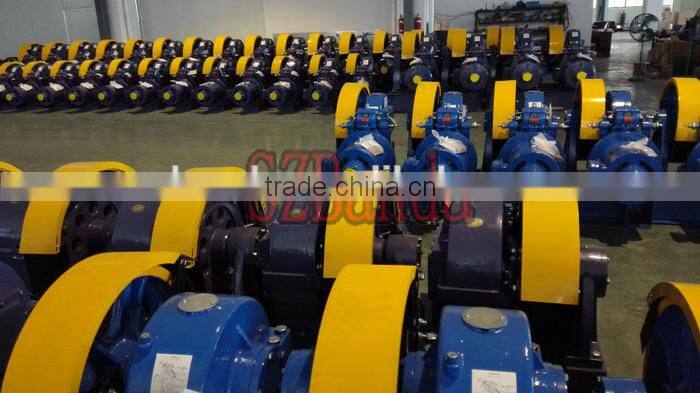

Elevator Geard Traction Machine Picture:
Packaging & Shipping
Elevator Geared Traction Machine Delivery:
30Days based on advance payment.
Elevator Geared Traction Machine Shipping:
By sea, by air, by DHL, UPS, TNT, Fedex, Aramex, and so on.
Elevator Geared Traction Machine Packing:
