Home > Products > Power supply for Cargo Ship > Single Power Supply for Cargo Ship Input 110/220VAC/24VDC, Output 20A - PS-20A

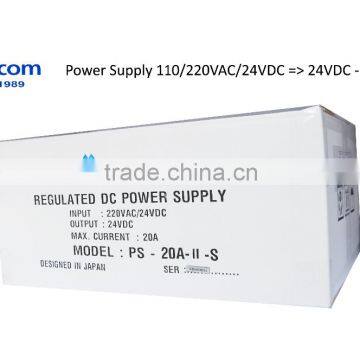

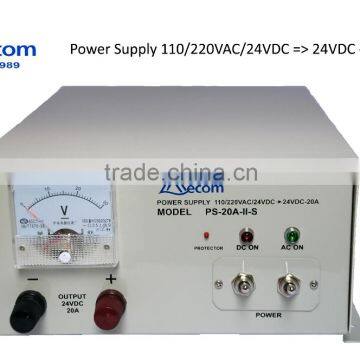

Single Power Supply for Cargo Ship Input 110/220VAC/24VDC, Output 20A - PS-20A
Negotiable
/ Set
1 Set(Min. Order)
- 70000
- T/T L/C D/P D/A
You May Like
-
Power Supply for Marine Radar, GPS Plotter 110/220VAC/24VDC => 24VDC -7A
-
Power Supply for Cargo Ship - PS-7A
-
Un- Regulated POWER SUPPLY for Automatic Identification System on Marine Ship
-
DC Regulated Marine Power Supply for Gyro Compass, INM-C Output 24VDC, 20A - PS-20A
-
Battery Charger Used for Cargo Ship Input 110/220VAC, Output 24VDC - 20A
-
Battery Charger for GMDSS on Cargo Ship Input 100/220VAC, Output 24VDC-20A
Product Details
| Place of Origin | Ho Chi Minh City, Vietnam | Brand Name | MECOM | |
| Model Number | PS-20A | Output Power | 401 - 500W | |
| Output Type | Single | Input Voltage | Other, 110V, 110/220VAC +/-10% 50/60Hz 24VDC (Back-up) | |
| Output Voltage | 24VDC | Output Frequency | 50/60Hz | |
| Output Current | 20A |
Product Description
Product Description
Model PS-20A: MECOM Regulated power supply Designed for Gyro compass, INM-C, MF/HF SY SRG-1150DN. | |
Input Voltage | 110/220VAC ±10% 50/60Hz 24VDC (Back-up) |
Output | 24VDC |
Output current Max. | 20A |
Output current Continuous | 10A |
Ripple voltage | <10mV |
Over voltage protection | >29V |
Over current protection | >20A |
Weight | 11 Kg |
Dimensions (WxHxD) | 230mm x 127mm x 320mm |
Company Information

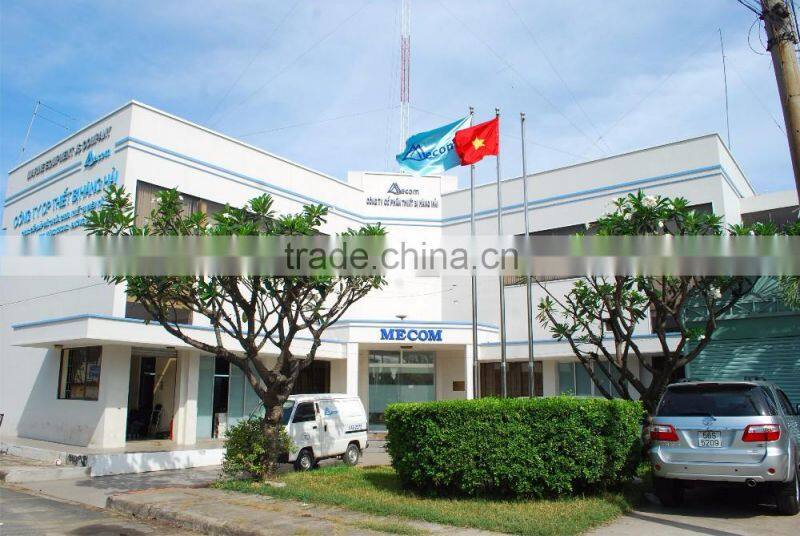

MECOM - Marine Equipment Joint-Stock Company was established since 1989.
MECOM has designed and produced many kinds of support equipment such as antenna, power supply, charger for marine industry, equipment for radio communication station and traffic control center. Our Products have the high quality; good price. They are extensively used in Vietnam and exported to Singapore, Malaysia and Thailand, Campuchia, UAE…
