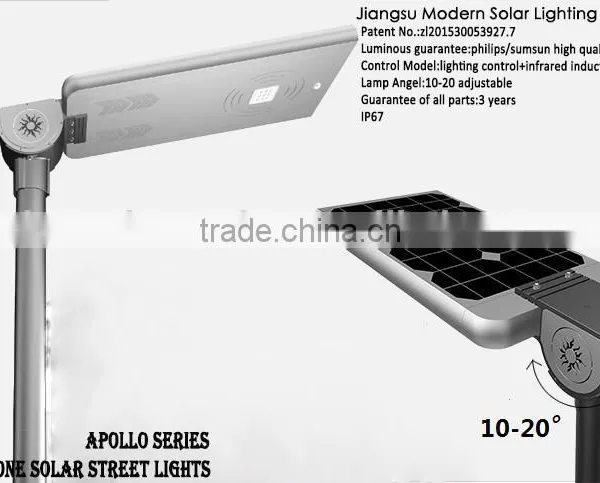

25w all in one integrated solar street lights

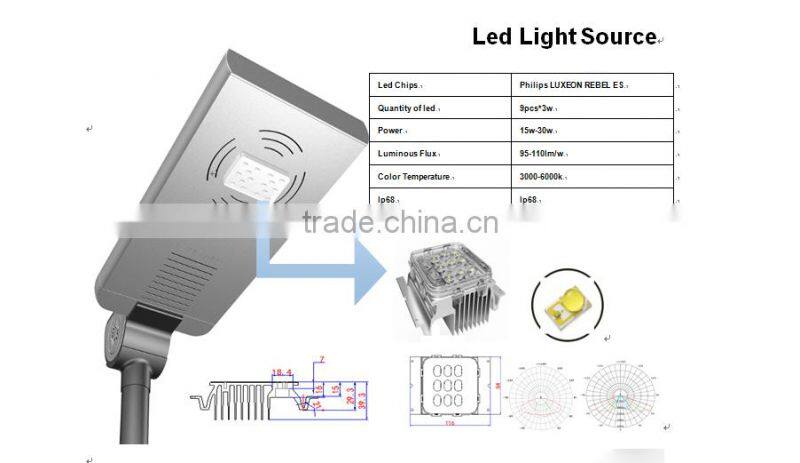

Technical Parameters

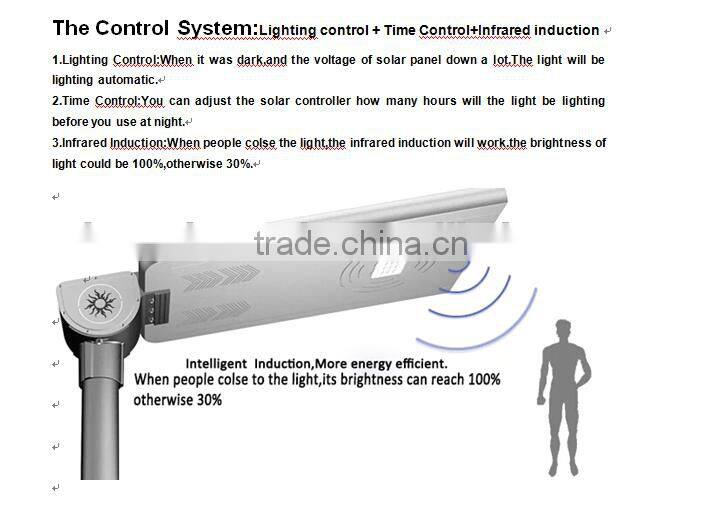

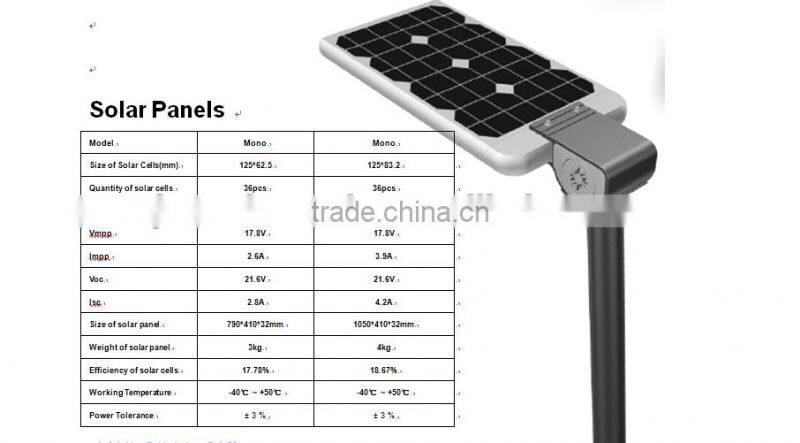

Model | Led Brand | Led Power | Luminous Flux | Power of solar panel | Power of Lithium battery | Control Model |

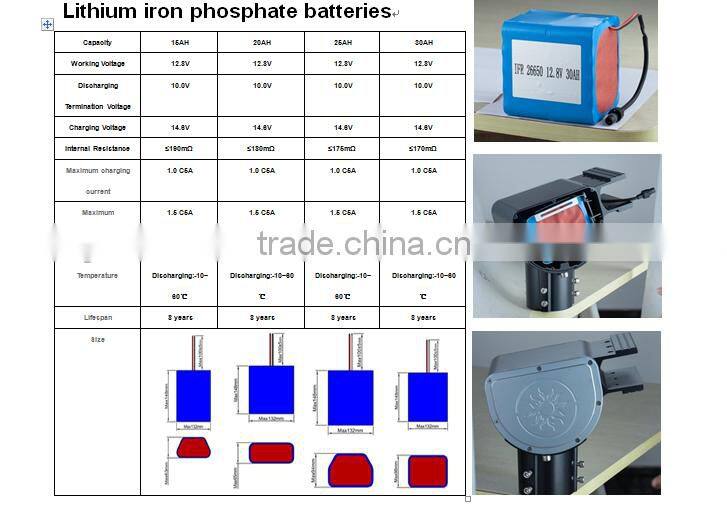

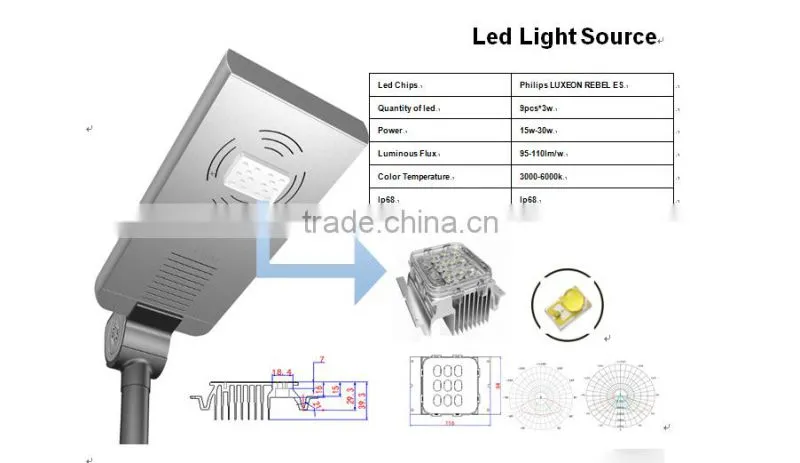

MSL-A15W | PHILIPS/SUMSUN | 15W | 1575LM | 45W | 15AH | INFRARED INDUCTION |
MSL-A20W | PHILIPS/SUMSUN | 20W | 2100LM | 45W | 20AH | INFRARED INDUCTION |
MSL-A25W | PHILIPS/SUMSUN | 25W | 2625LM | 70W | 25AH | INFRARED INDUCTION |

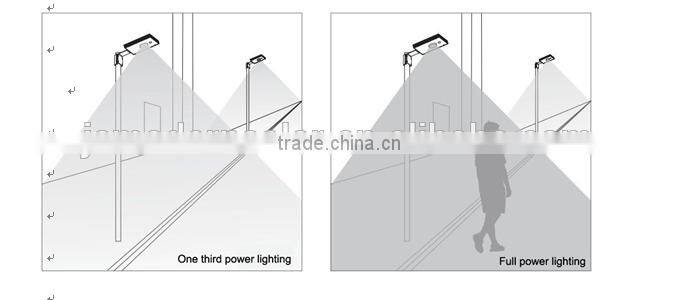

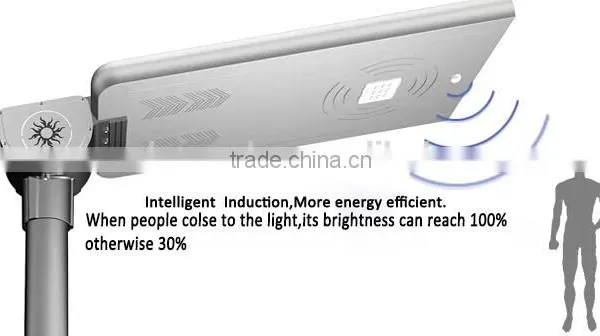

MSL-A30W | PHILIPS/SUMSUN | 30W | 3150LM | 70W | 30AH | INFRARED INDUCTION |
Illuminance Diagram
Power | Illminance Data(LUX) | Recommended the height of pole | |||||
3M | 4M | 5M | 6M | 7M | 8M | ||
15W | 28 | 25 | 20 | 16 | 12 | 8 | 3-5M |
20W | 35 | 31 | 25 | 19 | 15 | 11 | 4-6M |
25W | 39 | 35 | 29 | 23 | 18 | 14 | 5-7M |
30W | 44 | 39 | 34 | 27 | 23 | 18 | 6-8M |

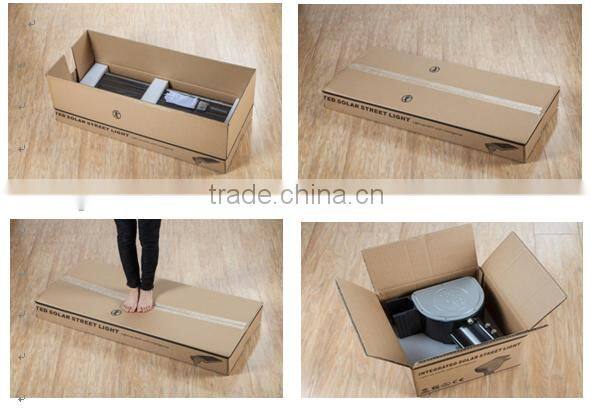

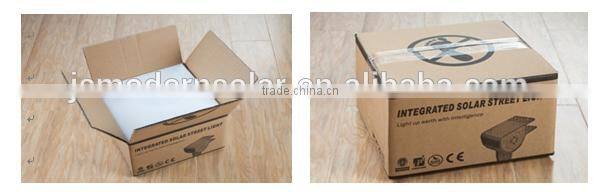

Packing Details
Model | Product Size | Packing Size | Net Weight | Gross Weight |
15W | 900MM*430MM*55MM | 950MM*530MM*75MM | 12.6KG | 13.2KG |
320MM*300MM*200MM | 330MM*310MM*210MM | 2.1KG | 2.3KG | |
20W | 900MM*430MM*55MM | 950MM*530MM*75MM | 13.2KG | 13.6KG |
320MM*300MM*200MM | 330MM*310MM*210MM | 2.8KG | 3KG | |
25W | 1250MM*430MM*55MM | 1430MM*530MM*75MM | 15.6KG | 16.2KG |
320MM*300MM*200MM | 330MM*310MM*210MM | 3.6KG | 3.8KG | |
30W | 1250MM*430MM*55MM | 1430MM*530MM*75MM | 16.2KG | 16.8KG |
320MM*300MM*200MM | 330MM*310MM*210MM | 4.2KG | 4.4KG |
