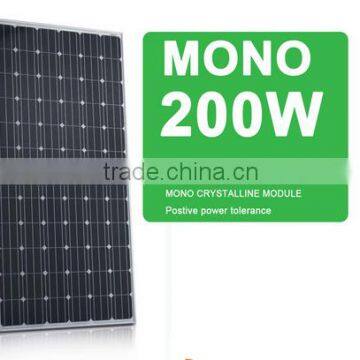

200w mono solar panels series
ITEM NO | MSLM-200W |
Type of cell | Mono |
Maximum power (Wp) | 200W |
Maximum power voltage (V) | 36V |
Maximum power current (A) | 5.28A |
Open circuit voltage (V) | 43.2V |
Short circuit current (A) | 5.68A |
Number of cells (Pcs) | 72 |

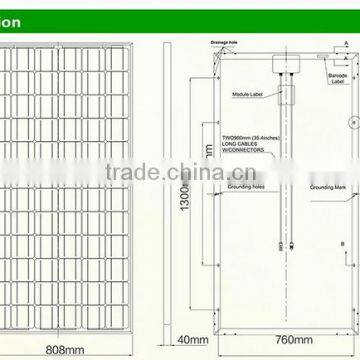

Size of module (mm) | 1580*808*40mm |
Maximum system voltage (V) | 1000 |
Temperature coefficients of Isc (%) | + 0.1/ °C |
Temperature coefficients of Voc (%) | -0.38/ °C |
Temperature coefficients of Pm (%) | -0.47/ °C |
Temperature coefficients of Im (%) | +0.1/ °C |
Temperature coefficients of Vm (%) | -0.38/ °C |
Temperature Range | -40°C~+80°C |
Tolerance Wattage (e.g. +/-3%) | +/-5% |
Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
Weight per piece (kg) | 15kg |
Junction Box Type | ( TUV ) |
Connectors and Cables Type | (TUV) |
Length of Cables (mm) | 900m |
Cell Efficiency (%) | 16% |
Output tolerance (%) | +/-5% |
Frame (Material, Corners, etc.) | Aluminum |
Warranty | 2 Years products warranty and 25 years 80% of power |
Standard Test Conditions | AM1.5 100mW/cm2 25°C |
FF (%) | 72% |
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures.
