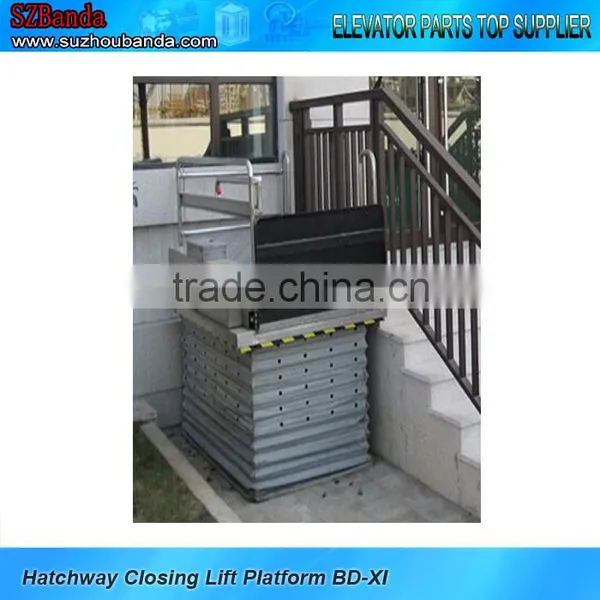

Good Price Wheelchair Hydraulic Vertical Platform Lift

Good price Wheelchair hydraulic vertical platform lift

Barrier-free Lifting Platform / Wheelchair Elevator Lift

Platform size: 1650mm *1100mm

Maximum Load Capacity: 250KG

Barrier-free Lifting Platform Specifications

Platform size: 1650* 1100mm

Overall Dimensions: 1650*1100*250mm

Dimensions of Base Pit: 1700*1150*250mm

Base Pit Depth: 250mm

Lifting Height: MAX1000mm

Minimum Height of Lifting Bottom-plate: Paralleling to the external pavement

Entry & Exit Mode: 90°or 180°

Lifting Speed: 60mm/s

Load capacity: 250KG

Control Source: 24V/DC

Motor Power: 1.1KW, 220V 50HZ

Power Supply: 220V/50HZ/25A

Drive System: Hydraulic driven

Running Mode: Jogging control or automatic control

Installation Mode: Pit installation

Extrocontrol Device: The external calling box should be separately installed in the neighboring wall of the above/below stopping floor of the equipment. Besides, remote controller could also be selected.

Manual Operation: The lifting bottom-plate shall Automatically descend when the manual hydraulic valve is open.

Safety Device

Safety Interlocking :The lifting platform shall not run if operates improperly

Safety Edge:The operation must be stopped immediately the safety edge meets obstacles during operation.

Emergency Descending:when there is malfunctions or no power, manually descend the device

Safety Handrail :Acts as safety role during lifting/descending process

Safety Cordion Dust Cap:Prevent foreign bodies from entering into the machine
