Passenger Elevator Cabin, Lift Cabin
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai port Taicang port Zhangjiagang port
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Banda | |
| Model Number | BD-2008-J1 | Usage | Residential Elevators | |
| Drive Type | AC, Other, AC, VVVF | Elevator Type | Passenger Elevators |
Product Description

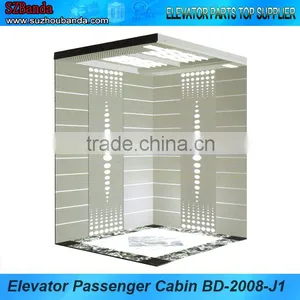

Elevator cabin
1. Advanced VVVF drive.
2. Best quality materials.
3. Competitive prices.
Passenger Elevator Cabin Specifications
Small machine room
BANDA is the best choice for you.
Its traditional design with a machine-room is sophisticated, yet simple, highly standardized and quickly installed.
No complicated specifications are required.
Key figures
Capacity: 630~1600kg Speed: 1.0~1.75m/s
| Model | Capacity (Kg) | Person | Speed (m/s) | Car net size (W X D) | Door opening (PLX LH) | Shaft size (W X D) | Machine room size (W X H) | Pit depth | Overhead height |
| BD450/1.0 | 450 | 6 | 1.0 | 1100X1100 | 800X2100 | 2000X1700 | 2000X3000 | 1500 | 4300 |
| BD630/1.0 | 630 | 8 | 1.0 | 1400X1100 | 800X2100 | 2000X1700 | 2000X3000 | 1500 | 4300 |
| BD630/1.5 | 630 | 8 | 1.5 | 1400X1100 | 800X2100 | 2000X1700 | 2000X3000 | 1500 | 4300 |
| BD800/1.0 | 800 | 10 | 1.0 | 1400X1350 | 800X2100 | 2000X2000 | 2000X3000 | 1500 | 4300 |
| BD800/1.5 | 800 | 10 | 1.5 | 1400X1350 | 800X2100 | 2000X2000 | 2000X3000 | 1500 | 4300 |
| BD1000/1.0 | 1000 | 13 | 1.0 | 1600X1500 | 900X2100 | 2200X2000 | 2000X3000 | 1500 | 4300 |
| BD1000/1.5 | 1000 | 13 | 1.5 | 1600X1500 | 900X2100 | 2200X2000 | 2000X3000 | 1500 | 4300 |
| BD1150/1.0 | 1150 | 16 | 1.0 | 1700X1500 | 1000X2100 | 2400X2100 | 2000X3000 | 1500 | 4300 |
| BD1150/1.75 | 1150 | 16 | 1.75 | 1700X1500 | 1000X2100 | 2400X2100 | 2000X3000 | 1500 | 4300 |
| BD1350/1.0 | 1350 | 18 | 1.0 | 1700X1500 | 1100X2100 | 2500X2100 | 2000X3000 | 1500 | 4300 |
| BD1350/1.75 | 1350 | 18 | 1.75 | 1700X1500 | 1100X2100 | 2500X2100 | 2000X3000 | 1500 | 4300 |
| BD1600/1.0 | 1600 | 21 | 1.0 | 1800X1800 | 1100X2100 | 2600X2400 | 2000X3500 | 1700 | 4300 |
| BD1600/1.75 | 1600 | 21 | 1.75 | 1800X1800 | 1100X2100 | 2600X2400 | 2000X3500 | 1700 | 4300 |
Machine room-less
In this crowded world, space is vital to us.
BANDA know it and that’s what we have been working on.
Key figures
Capacity: 450~1000kg Speed: 1.0m/s
| Model | Capacity (Kg) | Person | Speed (m/s) | Car net size (W X D) | Door opening (PLX LH) | Shaft size (W X D) | Pit depth | Overhead height |
| BD450/1.0 | 450 | 6 | 1.0 | 1100X1100 | 800X2100 | 2200X1700 | 1500 | 4500 |
| BD630/1.0 | 630 | 8 | 1.0 | 1400X1100 | 800X2100 | 2200X1700 | 1500 | 4500 |
| BD800/1.0 | 800 | 10 | 1.0 | 1400X1350 | 800X2100 | 2200X2000 | 1500 | 4500 |
| BD1000/1.0 | 1000 | 13 | 1.0 | 1600X1500 | 900X2100 | 2400X2000 | 1500 | 4500 |

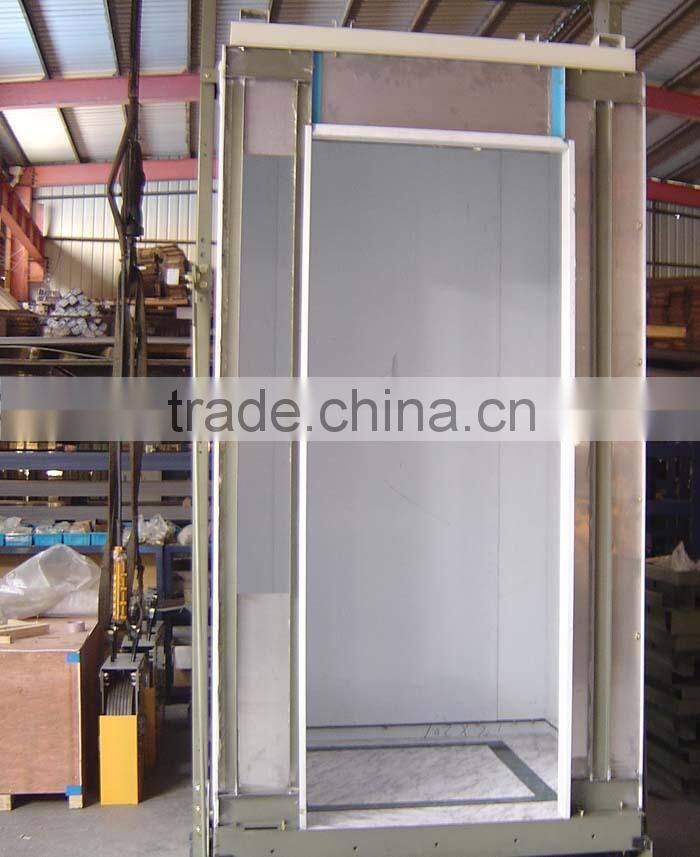

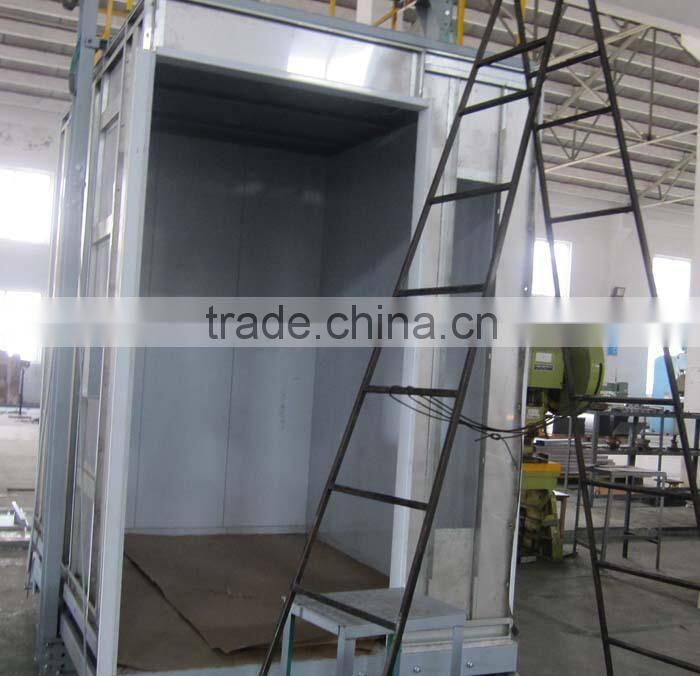

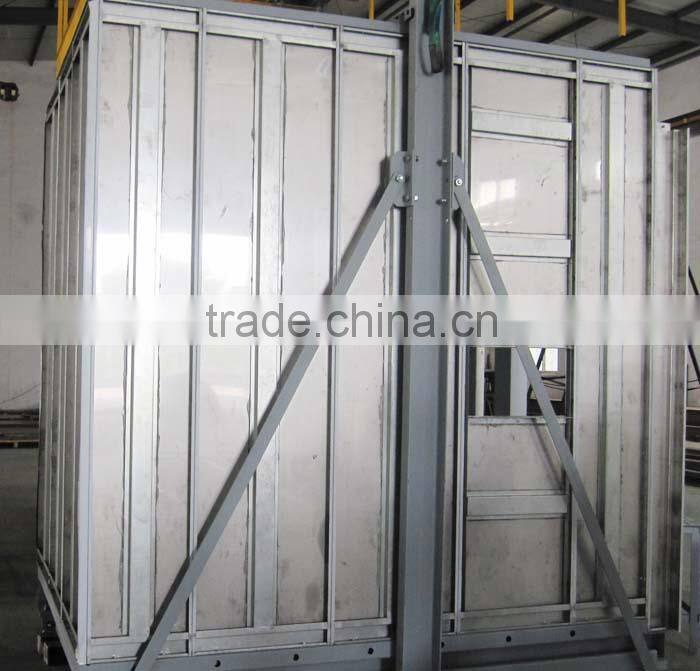

Elevator Cabin Picture
Elevator Cabin Packing:
