gi / galvanized corrugated steel sheet

Specifications

gi sheet
price galvanized roofing tile
building materials
high quality best price
various application prepainted steel coil

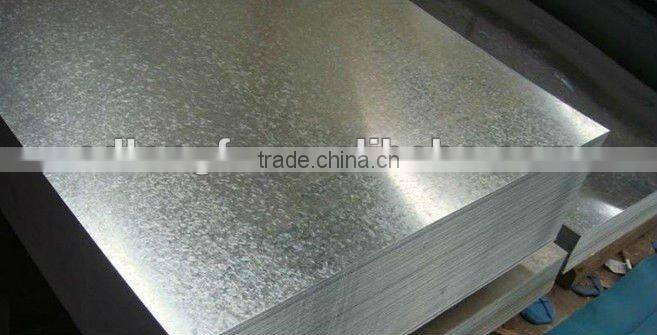

   gi sheet / galvanized steel sheet is a form of galvanization. It is the process of coating iron, steel, or aluminum with a thin zinc layer, by passing the metal through a molten bath of zinc at a temperature of around 860 °F (460 °C). When exposed to the atmosphere, the pure zinc (Zn) reacts with oxygen (O2) to form zinc oxide (ZnO), which further reacts with carbon dioxide (CO2) to form zinc carbonate (ZnCO3), a usually dull grey, fairly strong material that stops further corrosion in many circumstances, protecting the steel below from the elements.

   gi sheet / galvanized steel sheet is widely used in applications where rust resistance is needed, and can be identified by the crystallization patterning on the surface (often called a “spangle”).

   gi sheet / galvanized steel sheet has gone through a chemical process to keep it from corroding. The steel gets coated in layers of zinc because rust won't attack this protective metal. For countless outdoor, marine, or industrial applications, galvanized steel is an essential fabrication component.

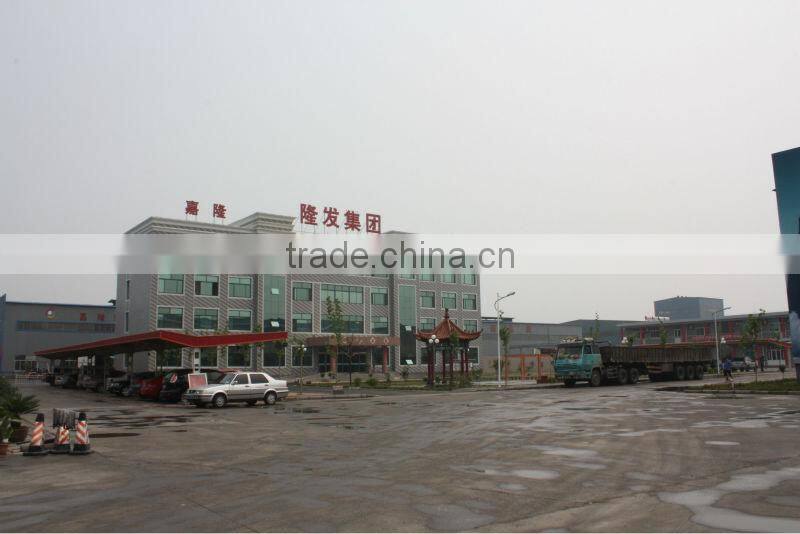

Corporation Introduction

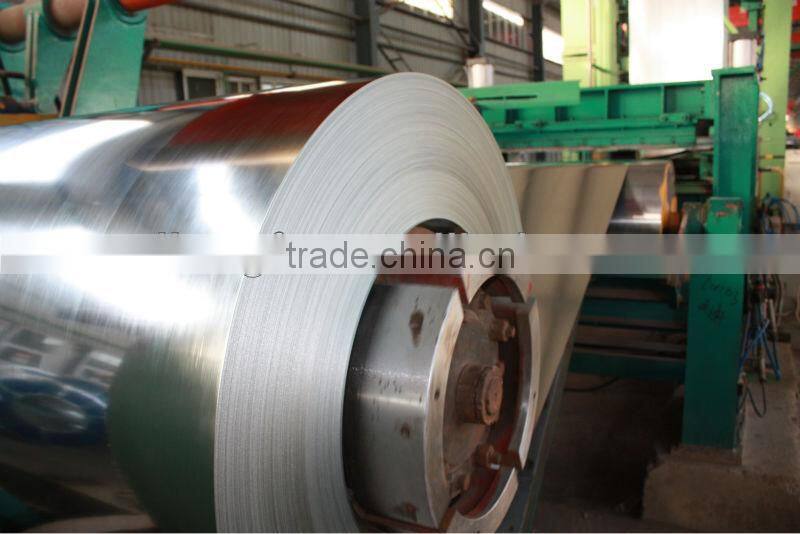

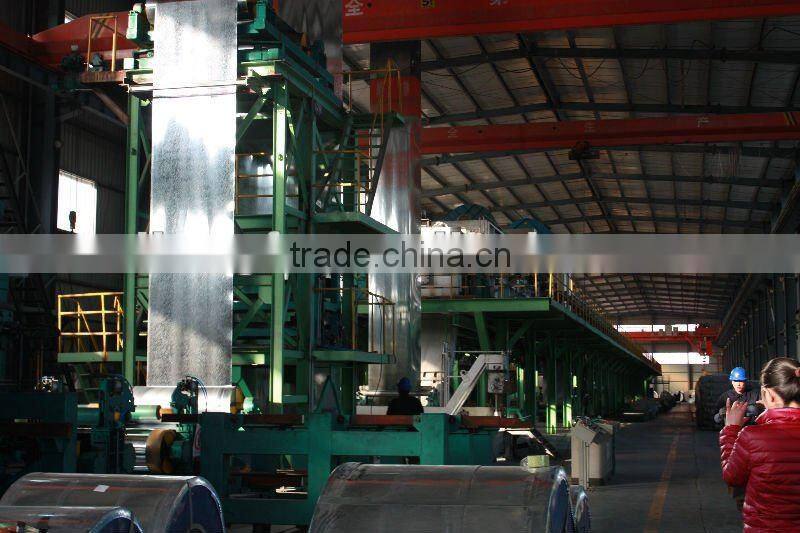

 Shandong Longfa is a logistics, new building materials, galvanized steel processing, plastics machinery research and development as one group of the large-scale private enterprises.It has two production lines of PPGI/PPGL, one roduction line of GI and six lines of Sandwich Board.

About 20%of our steel output is to export. Our company operates to the stringent ISO 9001 and ISO 14001 quality standards and is committed to being a first-class coated steelmaker.
  We mainly manufacture all kinds of pre-painted galvanized steel coils (PPGI), hot dipped galvanized steel coils (GI), galvalume steel coil (GL), roofing sheet, composite boards, galvanized corrugated sheet and so on.

1) Available Designation

Quality	Q/BQB 440-2003	JIS G3312-1994	EN 10326-2004	ASTM A653-02a
			EN 10327-2004	(BASE PLATE)
			(BASE PLATE)
Commercial Steel	TDC51D	CGCC	DX51D+Z/AZ	CS Type A/B/C
Forming Steel	(TSt01,TSt02,TSt03)	CGCD1		FS Type A, Type B
Drawing	TDC52D /TDC53D	-	DX52D+Z/AZ	DDS TYPE A/C
Steel			DX53D+Z/AZ
Structural	TS280GD(TStE28)	CGC400	S280D+Z/AZ	SS275
Steel	TS350GD(TStE34)	CGC440	S350D+Z/AZ	SS340 Class1

2) Available Size:

Manufacturer	Thickness	Width	Length of plate	Inner diameter of coil
SHANDONG LONGFA STEEL PLATE CO., LTD	0.135~1.2mm	800/914/1000/1200/1219/1250mm	1000-6000mm	508mm/610mm

 3) Coated Mass:

Base plate	Available Coated Mass(g/m^2)
Galvanized Steel	30,50,60,80, 100, 120, 160, 180,200
Galvalume Steel	30,50, 60, 80,100,120

4) Available Painting:

Category of Painting	Item	Code
	Polyester	PE
	High-durability polyester	HDP
	Silicon modified polyesters	SMP
	Polyvinylidene fluoride	PVDF
	Easy-Cleaning	—
Painting Thickness	Top side: 20+5microns;
	Bottom side: 5~7microns.
Color System	Produce according to RAL Color System or as per buyer’s color sample.
Painting structure	Top surface	Bottom surface
	Primer coating	No coating	1/0
	Primer coating	Primer coating	1/1
	Primer coating + Finish coating	No coating	2/0
	Primer coating + Finish coating	Primer coating or single back coating	2/1
	Primer coating + Finish coating	Primer coating + Finish back coating	2/2

 Note: Protect film available



Application

Construction	Outside	Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth
	Inside	Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter
Electrical appliance	Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker
Furniture	Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf
Carrying trade	Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board
Others	Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment

Pre-painted galvanized steel coils (ppgi coils)

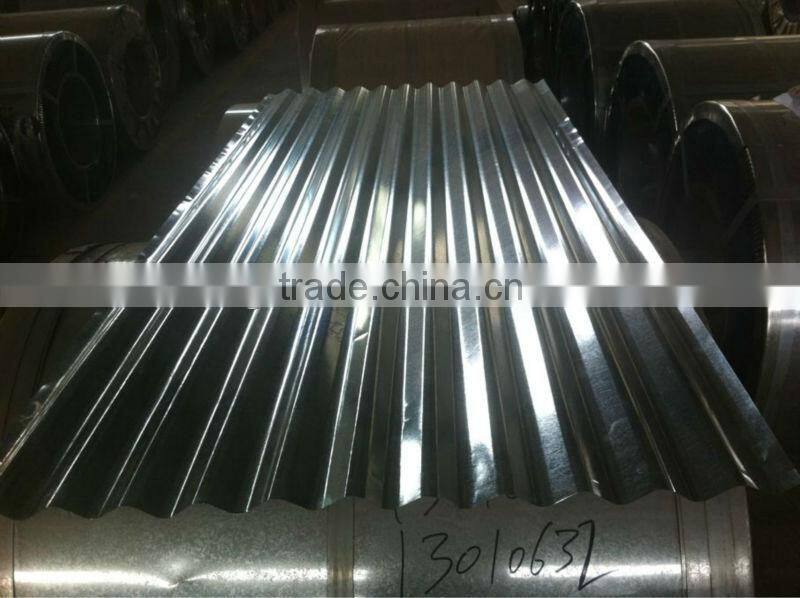

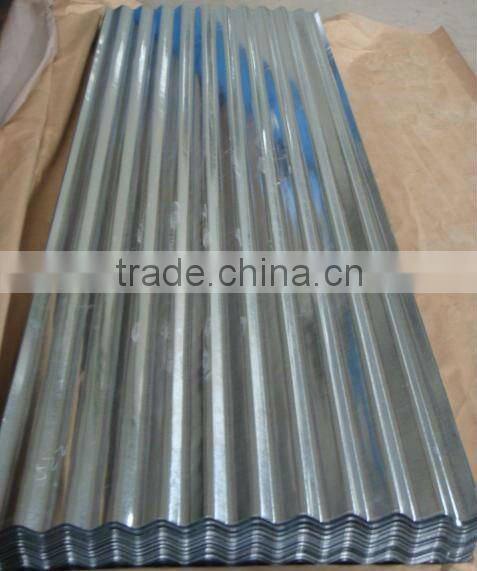

Galvanized corrugated sheet, colored corrugated metal roofing sheet, roof tile, sandwich panels

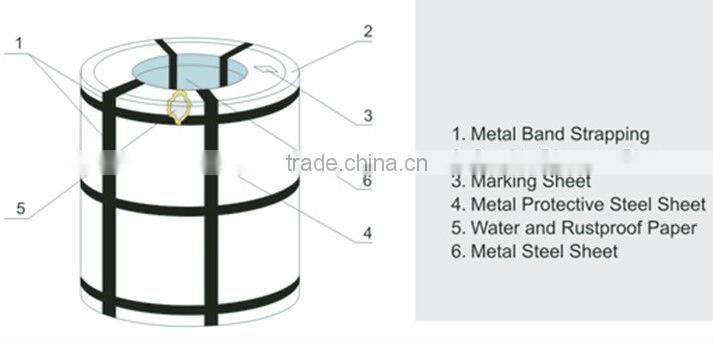

Packing

Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential, the contact points of these bands on the coil edge to be protect with edge protectors. Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped. And each packed coil to be properly wrapped with band, three-six such band through the eye of coil at about equal distance, and two-four such bands securely tied around belly of coil at about equal distance.



Certificate

Our company operates to the stringent ISO 9001 and ISO 14001 quality standards and is committed to being a first-class coated steelmaker.

If you do have interest in our company or products .You may contact with me.

Best regards & thanks

Shmily Song
