Help CenterIndustrial Fan Heater for Middle-high Market
Related Products

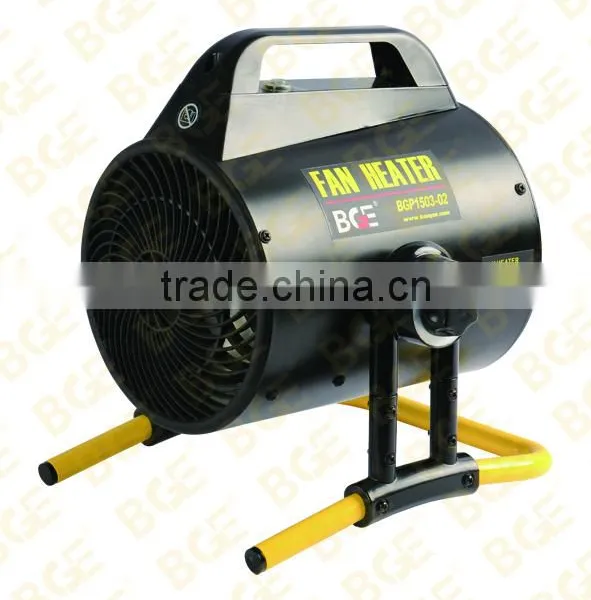

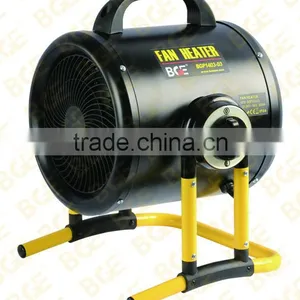

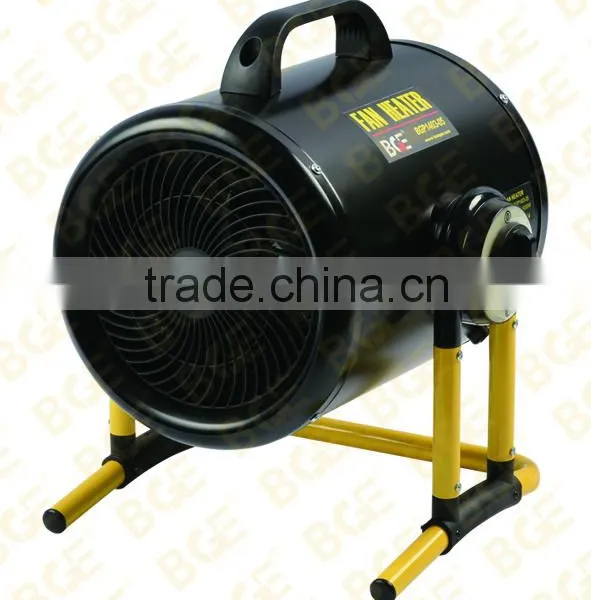

BGP1503-02/BGP1403 series
Features:
| Model | BGP1503-02 | BGP1403-03 | BGP1403-03-15 | BGP1403-05 |
| Electric supply | 220-240V ~50Hz | 220-240V ~50Hz | 220-240V ~50Hz | 380-400V ~50Hz |
| Heating setting | 40/1000/2000W | 30/1500/3000W | 40/1500/3000W | 55/2500/5000W |
| Capacity | 2KW | 3KW | 3KW | 5KW |
| 6825 Btu/h | 10236 Btu/h | 10236 Btu/h | 17060 Btu/h | |
| 1720 Kcal/h | 2580 Kcal/h | 2580 Kcal/h | 4300 Kcal/h | |
| Air Output | 345 m³/h | 420 m³/h | 420 m³/h | 430 m³/h |
| Outlet temperature | 80℃ | 85℃ | ||
| Suggestion using area | 40 m³ | 60 m³ | 60 m³ | 100 m³ |
| Packing | 1 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn |
| Product Meast | 255x273x297mm | 270x340x370mm | 270x340x370mm | 325x340x370mm |
| Packing Meast | 315x285x260mm | 375x295x315mm | 375x295x315mm | 375x295x370mm |
| N.W. | 3.0 kgs | 5.0 kgs | 5.0 kgs | 5.7 kgs |
| G.W. | 3.5 kgs | 5.8 kgs | 5.8 kgs | 6.5 kgs |
| Qty/20' | 1200 pcs | 800 pcs | 800 pcs | 682 pcs |
| Qty/40' | 2485 pcs | 1660 pcs | 1660 pcs | 1414 pcs |
| Qty/40'HQ | 2913 pcs | 1940 pcs | 1940 pcs | 1658 pcs |

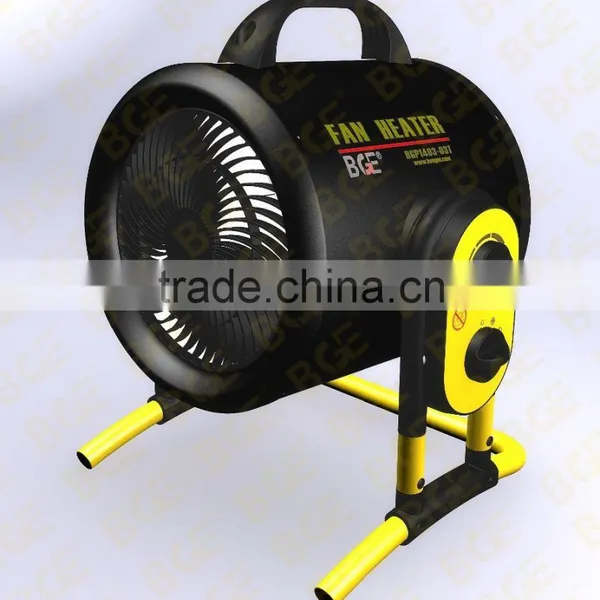

| Model | BGP1403-03T | BGP1403-05T |
| Electric supply | 220-240V ~50Hz | 380-400V ~50Hz |
| Heating setting | 30/1500/3000W | 55/2500/5000W |
| Capacity | 3KW | 5KW |
| 10236 Btu/h | 17060 Btu/h | |
| 2580 Kcal/h | 4300 Kcal/h | |
| Air Output | 420 m³/h | 430 m³/h |
| Outlet temperature | 80℃ | |
| Suggestion using area | 60 m³ | 100 m³ |
| Packing | 1 pcs/ctn | 1 pcs/ctn |
| Product Meast | 270x340x370mm | 325x340x370mm |
| Packing Meast | 375x295x315mm | 375x295x370mm |
| N.W. | 5.0 kgs | 5.8 kgs |
| G.W. | 5.8 kgs | 6.9 kgs |
| Qty/20' | 800 pcs | 682 pcs |
| Qty/40' | 1660 pcs | 1414 pcs |
| Qty/40'HQ | 1940 pcs | 1658 pcs |
Industrial fan heater
1. Heating element: BGP1403-03/03T/05/05TStainless steel with spiral heating fin, left without
2. New desgin Switch could rotate 360 degree for easy control
3. Overheat protection
4. Full metal casing
5. Insulated handle more safe for using
6. Free standing & portable type
7. With Fan Only setting for cooling
8. With Steady large volume heat wind and strong blow distance
9. Waterproof class IPX4
10. BGP1403-T with adjustable theromostat,the left without
Certificates:
CE / GS / LVD / EMC / RoHS approved .
Where to use
* Construction Sites * Factories * Barns
* Agriculture * Sports Events * Utility/Farm Buildings
Introduction:
* Company history: established in 1999. professional manufacturer specialized in heaters.
* Industrial fan heater, industrial diesel heater, gas forced heater,radiator heater,quartz heater etc.
* Main markets: Germany, Denmark, Norway, Sweden, Finland, UK, Russia, Australia, America and Asia etc.
* Employees: 320-400
* Production capacity: 6+ lines , 800,000 pcs/ year,
* Quality management system: ISO 9001
Quality control system:
IQC (Incoming Quality Control)
IPQC (In Process Quality Control)
PQC (Process Quality Control)
FQC (Final Quality Control)
OQC (Out-going Quality Control)
