9kw Cylinder Electric Heater

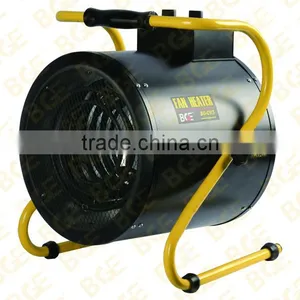

9kw Cylinder Electric Heater thumbnail-1
9kw Cylinder Electric Heater photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Fan heater
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Ningbo Baogong Electrical Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Fan heater
Power Source Electric
Place of Origin Zhejiang, China
Brand Name Kinlux
Model Number BG-C9/3
Dimension(L*W*H) 350*405*460mm
Weight 11.9kgs
Voltage 230V 50Hz
Power(W) 9kw
Certification CE,GS
Warranty 1 year

 Model Number : BG-C9/3



Features :

Model  BG-C3/1-13 BG-C5/3-13 BG-C9/3 BG-C15/3 BG-C30/3
Electric supply  220-240V ~50Hz 380-400V ~50Hz 380-400V ~50Hz 380-400V ~50Hz 380-400V ~50Hz
Heating setting 25/1500/3000W 30/2500/5000W 52/4500/9000W 110/5000/10000/15000W 70/15000/30000W
Capacity 3KW 5KW 9KW 15KW 30KW
10250 Btu/h 17060 Btu/h 30706 Btu/h 51177 Btu/h 102354 Btu/h
2579.4 Kcal/h 4299 Kcal/h 7738.2 Kcal/h 12897 Kcal/h 25794 Kcal/h
Air Output 360 m³/h 388 m³/h 980 m³/h 1100 m³/h 1911 m³/h
Outlet temperature 77℃ 98℃ 107 ℃ 124℃ 156℃
Suggestion using area 60 m³ 100 m³ 180 m³ 300 m³ 600 m³
Packing 1 pcs/ctn 1 pcs/ctn 1 pcs/ctn 1 pcs/ctn 1 pcs/ctn
Product Meast 315x330x400mm 315x330x400mm 350x405x460mm 495x520x860mm 645x565x860mm
Packing Meast 335x335x415mm 335x335x415mm 415x370x470mm 505x410x530mm 660x450x590mm
N.W. 6.6 kgs 7.5 kgs 11.9 kgs 22 kgs 32 kgs
G.W. 7.5 kgs 8.3 kgs 13 kgs 23.5 kgs 34 kgs
Qty/20' 610 pcs 600 pcs 388 pcs 255 pcs 158 pcs
Qty/40' 1245 pcs 1245 pcs 804 pcs 529 pcs 330 pcs
Qty/40'HQ 1460 pcs 1460 pcs 942 pcs 620 pcs 388 pcs

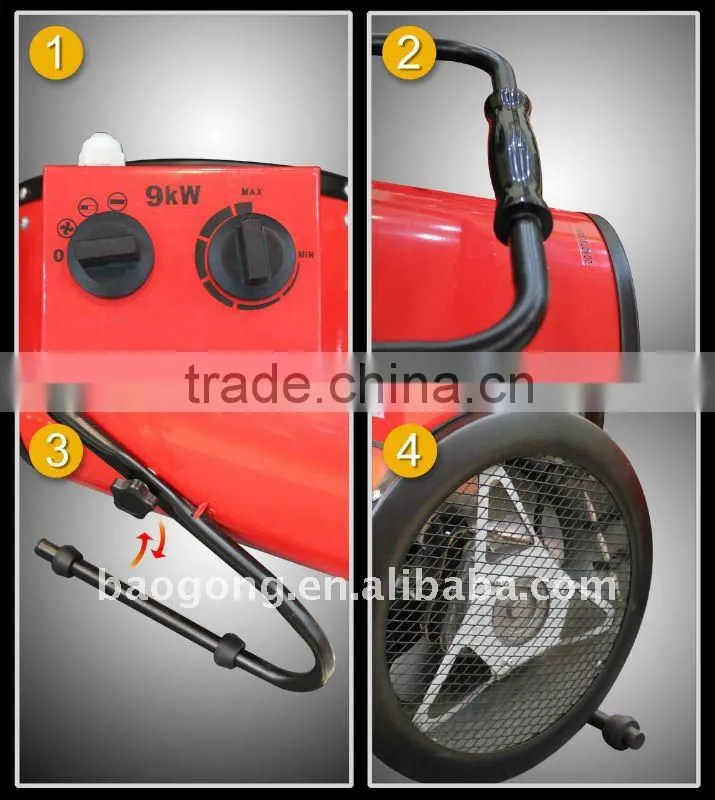

Details:

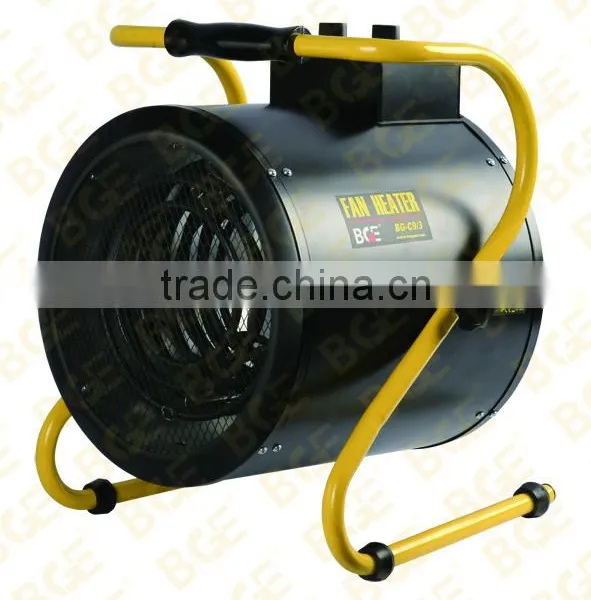

9kw cylinder electric heater

cylinder electric heater



1. Heating element : Stainless steel

2. Adjustable thermostat control

3. Overheat protection

4. With fan

5. Free standing & portable type

6. No fumes, no odours, no humidity

7. Strong and long lasting construction

8. With time-delay

9. Can adjuste the angle about 30°according to using surrounding and to get more large air output.

10. 5-30KW with relay

11. Waterproof class IPX4



Certificates:

CE / GS / LVD / EMC / RoHS approved .





Where to use
*  Construction Sites    * Factories           * Barns



*  Agriculture           * Sports Events       * Utility/Farm Buildings



9kw cylinder electric heater







Introduction:

* Company history: established in 1999. professional manufacturer specialized in heaters.
* Industrial fan heater, industrial diesel heater, gas forced heater,radiator heater,quartz heater etc.
*Main markets: Germany, Denmark, Norway, Sweden, Finland, UK, France,Russia, Australia, America and Asia etc.

* Employees: 320-400

* Production capacity: 6+ lines , 800,000 pcs/ year,
* Quality management system: ISO 9001

 9kw cylinder electric heater

Quality control system:

    IQC (Incoming Quality Control)
    IPQC (In Process Quality Control)
    PQC (Process Quality Control)
    FQC (Final Quality Control)
    OQC (Out-going Quality Control)

9kw cylinder electric heater
