BGP1506 series
Features :
| Model | BGP1506-02 | BGP1506-03 | BGP1506-05 | BGP1506-05-1 | BGP1506-09 |
| Electric supply | 220-240V ~50Hz | 220-240V ~50Hz | 380-400V ~50Hz | 380-400V ~50Hz | 380-400V ~50Hz |
| Heating setting | 25/1000/2000W | 25/1500/3000W | 50/3300/5000W | 40/5000W | 80/6000/9000W |
| Capacity | 2KW | 3KW | 5KW | 5KW | 9KW |
| 6825 Btu/h | 10236 Btu/h | 17060 Btu/h | 17060 Btu/h | 30708 Btu/h | |
| 1720 Kcal/h | 2580 Kcal/h | 4300 Kcal/h | 4300 Kcal/h | 7740 Kcal/h | |
| Air Output | 158 m³/h | 217 m³/h | 423 m³/h | 423 m³/h | 960 m³/h |
| Outlet temperature | 150℃ | 145℃ | 138℃ | 138℃ | 138℃ |
| Suggestion using area | 40 m³ | 60 m³ | 100 m³ | 100 m³ | 180 m³ |
| Packing | 8 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn | 1 pcs/ctn |
| Product Meast | 210x160x217mm | 265x209x293mm | 300x235x343mm | 300x235x343mm | 400x310x460mm |
| Packing Meast | 455x345x490mm | 290x215x310mm | 330x250x355mm | 330x250x355mm | 420x330x490mm |
| N.W. | 13.5 kgs | 2.9 kgs | 4.2 kgs | 4.2 kgs | 6.5 kgs |
| G.W. | 15.6 kgs | 3.2 kgs | 4.8 kgs | 4.8 kgs | 7.5 kgs |
| Qty/20' | 2912 pcs | 1400 pcs | 933 pcs | 933 pcs | 410 pcs |
| Qty/40' | 6032 pcs | 2900 pcs | 1933 pcs | 1933 pcs | 850 pcs |
| Qty/40'HQ | 7072 pcs | 3400 pcs | 2266 pcs | 2266 pcs | 1000 pcs |

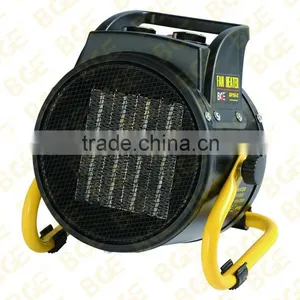

PTC electrical fan heater
1. Heating element : PTC heating element with long life
2. With two switch for power setting
3. With fan
4. No fumes, no odours, no humidity
5. Adjustable heating angles
6. Low noise, low-energy consuming
7. Strong and long lasting construction
8. Detachable handle for packing
9. Heating will be adjusted against the enviroment temperature change
9. Free standing & portable type
Certificates:
CE / GS / LVD / EMC / RoHS approved .
Where to use
* Construction Sites * Factories * Barns
* Agriculture * Sports Events * Utility/Farm Buildings
Introduction:
* Company history: established in 1999. professional manufacturer specialized in heaters.
* Industrial fan heater, industrial diesel heater, gas forced heater,radiator heater,quartz heater etc.
*Main markets: Germany, Denmark, Norway, Sweden, Finland, UK, France,Russia, Australia, America and Asia etc.
* Employees: 320-400
* Production capacity: 6+ lines , 800,000 pcs/ year,
* Quality management system: ISO 9001
Quality control system:
IQC (Incoming Quality Control)
IPQC (In Process Quality Control)
PQC (Process Quality Control)
FQC (Final Quality Control)
OQC (Out-going Quality Control)
