Specifications
1. Double Column Lathe2. Max.Cutting Dia 2500
3. Max.Height 1600
4. Max. Weight 15t
5. ISO&CE

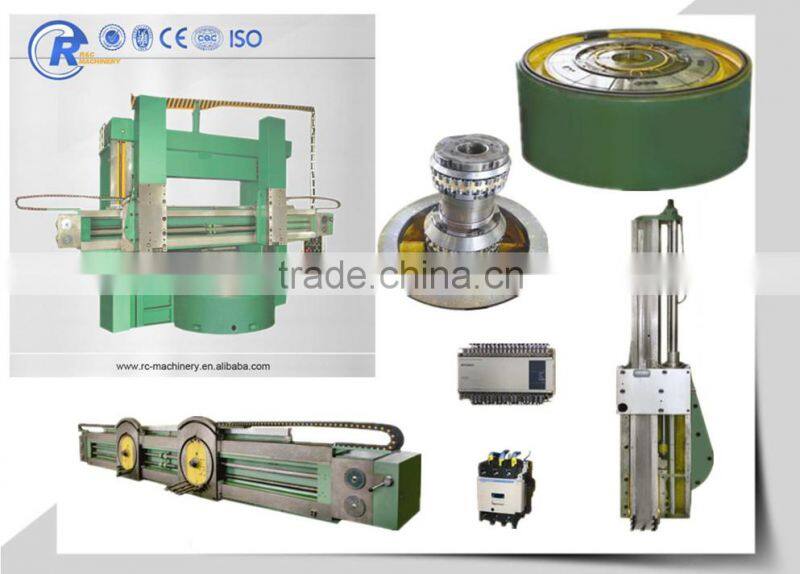

C5225 Conventional Metal Vertical Turning Lathe for sale china
IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C |
|
| IMAGES>SPECIFICATION>SHOW ROOM>>OTHER VERTICAL LATHES>OTHER MACHINES>>PACKING>>R&C |
Item | Unit | C5225 |
Max cutting diameter of workpiece | mm | 2500 |
Workbench diameter | mm | 2250 |
Max height of workpiece | mm | 1600/2000 |
Max weight of workpiece | t | 15 |
Workbench speed range | r/min | 2~63 |
Workbench speed series | step | two gears no step |
Max cutting force of right knife rest | kn | 35 |
Max cutting force of left knife rest | kn | 30 |
Max workbench torque | kn.m | 63 |
Cutter feeding scope | mm/min | 0.12~145 |
Rapid movement speed of knife rest | mm/min | 2400 |
Beam movement speed | mm/min | 350 |
Turning angle of vertical slide | ° | ±30 |
Knife carrier size | mm | 40*50 |
Main motor power | kw | DC55 |
Machine dimensions(L*W*H) | mm | 5180*5200*4870 |
Machine weight | t | 33 |
| IMAGES>>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C |
|
| IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C |
|
|
|
|
C5112 Singel Column Conventional Lathe Turning Dia_1250mm | C5225 Double Columns Conventional Lathe Turning Dia_5000mm | CK5112 Singel Column CNC Lathe Turning Dia_1250mm
| CK5225 Double Columns CNC Lathe
Turning Dia_5000mm
|
| IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>>R&C |
|
IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES> PACKING>> R&C |
|
| IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES>> PACKING>> R&C |
|
KINDLY CONTACT ME IF YOU NEED ANY INFORMATION. |
|
