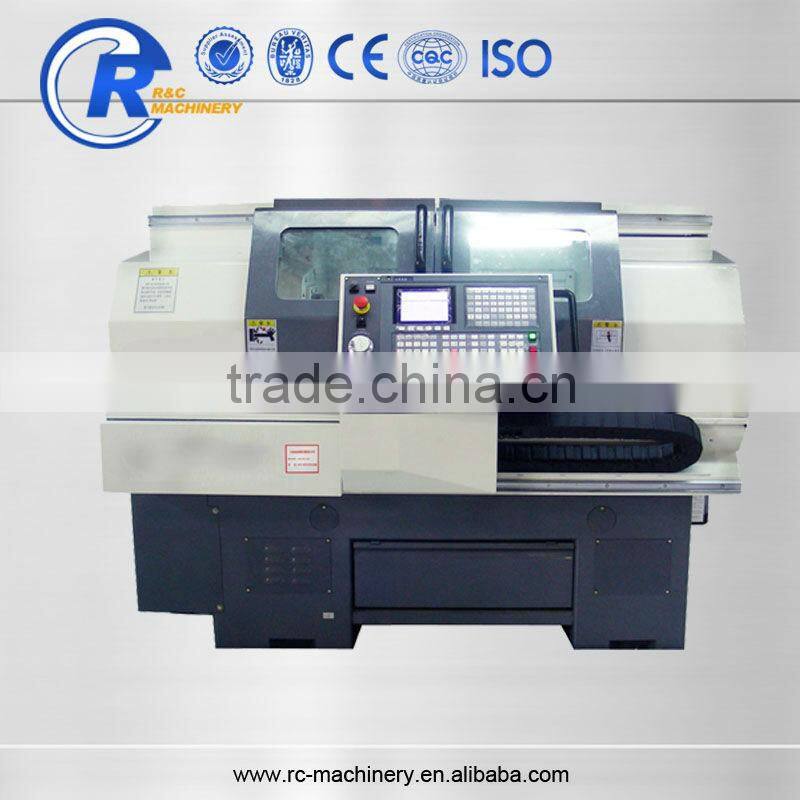

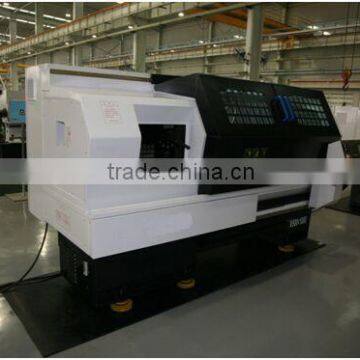

CK6150i Cnc Mini Lathe

Dalian R&C Machinery Co., Ltd.

US$ 10,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, flat bed

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, flat bed

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 500mm

Place of Origin Liaoning, China

Brand Name R&C

Model Number CK6150i

Voltage 380V

Power(W) 11KW

Dimension(L*W*H) 3830*1750*1620mm

Weight 2550 kg

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

CK6150i Cnc Mini Lathe

Product Description

Main Specification

Item	mm	CKE6140i	CKE6150Z	CKE6150i
Max. swing over bed	mm	400	500	500
Width of bed	mm	300	400	400
Max. length of work piece	mm	750/1000	750/1000/1500/2000	750/1000
Max. swing over slide	mm	200	280	280
X travel	mm	225	280	280
Z travel	mm	620/870	680/930/1430/1930	680/930
Spindle nose	mm	A2-5	D8	A2-8
Chuck size	mm	165	250	250
Taper of spindle bore	mm	M5	1:20	1:20
Spindle bore	mm	40	82	82
Spindle speed Frequency conversion motor	r/min	200-3500	7-135
			30-550
			110-2200

Steps of spindle speed		stepless	stepless	stepless
Frequency conversion motor power	kw	5.5	7.5
Rapid traverse X/Z	m/min	4/5	6/10	6/10
Repeatability of tool post	mm	0.008	0.008	0.008
Diameter of tailstock quill	mm	63	75	75
Travel of tailstock quill	mm	130	150	150
Taper of tailstock quill		M4	M4	M4
Net weight	kg	1800/1953	2500/2600/2700/2800	2550/2600
