Q1313 Manual Lathe Machine

Dalian R&C Machinery Co., Ltd.

US$ 68,000 - 94,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1000

Place of Origin Shandong, China

Brand Name R&C

Model Number QK1313

Voltage 380V

Power(W) 7.5/11KW

Dimension(L*W*H) 2570*1620*1940mm

Weight 3500kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Q1313 Manual Lathe Machine

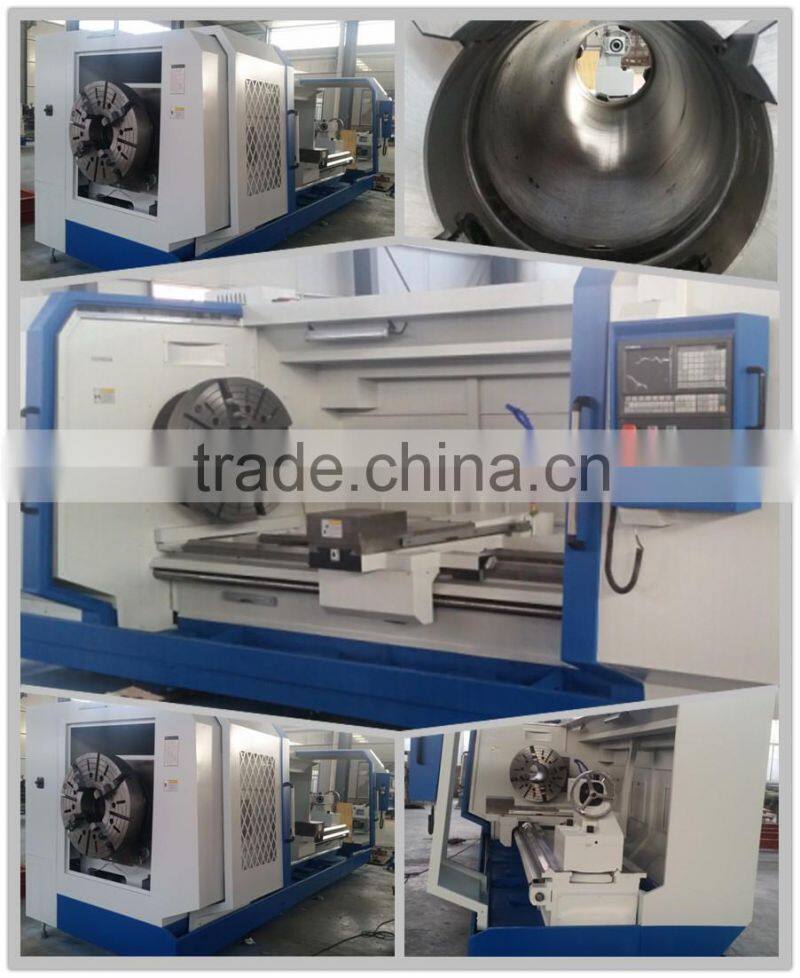

Photos of Machine

Main Parameters

Model and specifications	QK1313	QK1319	QK1322	QK1327	QK1335	QK1343
Guideway width	490 mm			705mm	755mm
Max.swing over bed	630mm			1000mm	1000mm
Max.swing over carriage	350mm			680mm	610mm
Hole through spindle	130 mm	200mm	225mm	280mm	350mm	440mm
cessing Pipe diameter	126 mm	196 mm	219mm	270mm	340mm	430mm
piece length	1500/3000mm
The actual machining lengt	1350/2850mm
Number of spindle speed changes	18 steps	12 steps	12 steps	12 steps	12 steps	12 steps
Range of spindle speed changes	12~640 r/min	24~300 r/min	24~300 r/min	24~300 r/min	24~350 r/min	24~350 r/min
Tool post style	Vertical 4 Stations
Knife rest translocation time	3s
Repeated positioning accuracy	±0.002
Processing workpiece precision	IT7
Workpiece surface roughness	Ra1.6
Bed quenching hardness	HRC52
Power of main motor	7.5/11kw			18.5kw	22kw
Chuck	400 3-jaw	500 3-jaw	500 3-jaw	800 4-jaw	1000 4-jaw
