CM5116 CNC Turning and Grinding Multi-purpose Lathe Machine

Name: CM5116 CNC Turning and Grinding Multi-purpose Lathe Machine
Brand: CHANGSHENG
SKU: 103646437
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Dalian R&C Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1600mm

Place of Origin Liaoning, China

Brand Name CHANGSHENG

Model Number CM5116

Power(W) 7kw

Weight 19.5T

Certification CE&ISO

After-sales Service Provided Engineers available to service machinery overseas

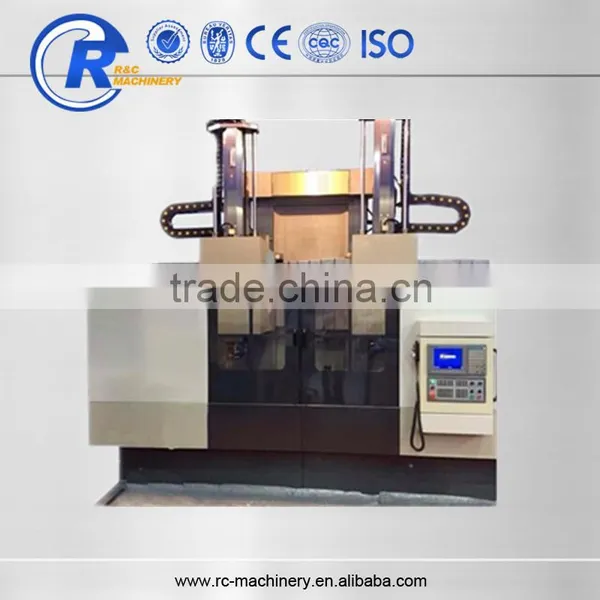

Photos of Machine

Main Parameters

Specification and Data
Items	CM5116		Unit
Maximum turning diameter	1600		mm
Maximum workpiece height	1000		mm
Maximum workpiece weight	5		t
Table diameter	1250mm		mm
Workbench speed Series	Stepless
Table speed range	4~240		r/min
Maximum torque table	7200		N•m
The main motor (servo)	22		KW
Turret parameters
Maximum turret cutting force	40	KN
Vertical turret ram stroke	800mm	mm
Vertical turret fast moving speed	10000	mm/min MPG each grid cutter
Vertical turret feed rate series	Steepless
Feed range of vertical turret	0.1~2000	mm/min
Arbor sectional dimensions	40	mm
Beams travel	1000	mm
Movement speed of the beam	410	mm/min
Motor power of up and down of the beam	5.5	Kw
Machine total weight (approx)	19.5	t
Grinding parameters
Maximum machining diameter	1600		mm
Minimum grinding bore	100		mm
Maximum grinding depth	800		mm
Maximum machining height	1000		mm
Rotation speed	1000-2900		r/min
Wheel diameter range	50-300		mm
Motor Power	7		kw
Wheel spindle taper hole	1:10
Wheel shaft diameter jump	0.003		mm
Wheel shaft jump	0.003		mm
X-axis movement speed	0-6000		mm
Minimum setting unit	0.001
Angle grinder	±30º
Cylindrical grinding degree	0.005/300		mm
Grinding true roundness	< 0.015		mm
Surface grinding accuracy (concave)	0.015		mm
