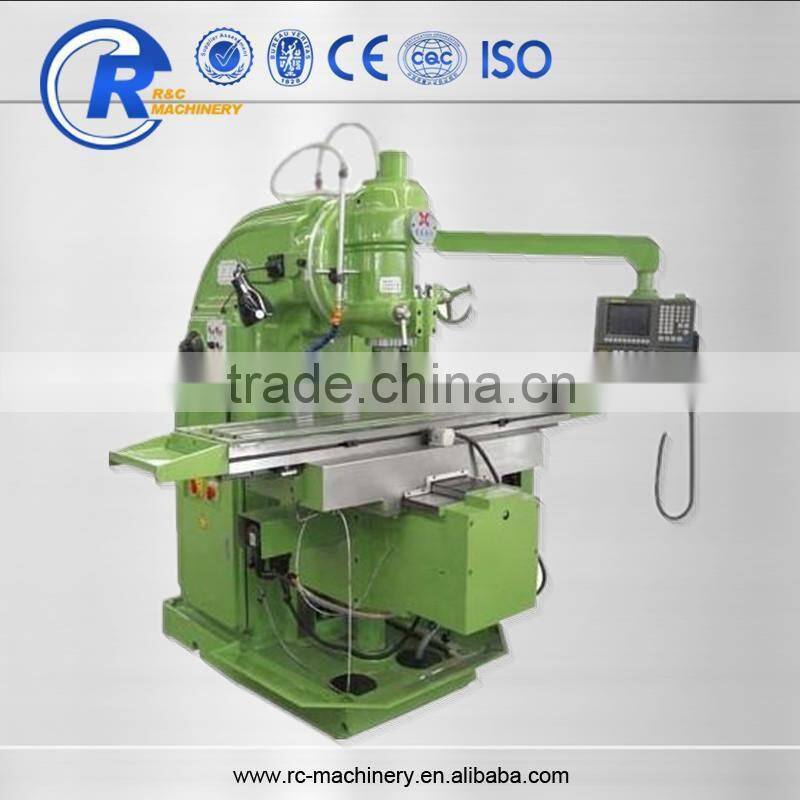

XK5032 Vertical Knee-type Milling Machine

Dalian R&C Machinery Co., Ltd.
XK5032 Vertical Knee-type Milling Machine thumbnail-1
XK5032 Vertical Knee-type Milling Machine photo-1
US$ 3,000 - 12,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
R&C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name R&C
Model Number XK5032
Type Vertical
CNC or Not CNC
Voltage 380V
Dimension(L*W*H) 2294*2050*1904
Weight 3200kg
Certification ISO9001 CE
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

XK6040 cnc milling machine
1.High precision
2.High quality
3.High efficiency
4.Low noice





XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C



Specification
XK5040XK5032
Table size1700*4001600*320
T slots(N*W*D)3/18/903/18/70
Longitudinal travel1100900
Cross travel350310
Vertical travel385350
Table longitudinal feed(auto)(in finite)(in finite)
Table cross feed(auto)(in finite)(in finite)
Table vertical feed(auto)(in finite)(in finite)
Distance between spindle and table surface80-46535-385
Spindle hole taperISO 50(7:24)ISO 50(7:24)
Spindle speed step1818
Spindle speed range30-150030-1500
Power of spindle motor117.5
Torque of X/Y/Z axis AC servo notor15/15/232010-10-23
Overall size2556*2159*22982294*2050*1904
Net weight42003200








IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C



XK5032 vertical knee-type milling machine

XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES>OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

XK5032 vertical knee-type milling machine



IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C



XK5032 vertical knee-type milling machine

XK5032 vertical knee-type milling machine

XK5032 vertical knee-type milling machine

XK5032 vertical knee-type milling machine

XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

XK5032 vertical knee-type milling machine

XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

XK5032 vertical knee-type milling machine

IMAGES >PARAMETERS >CUSTOMER VISITING > EXHIBITION>PACKING >OTHER MILLING MACHINES >OTHER MACHINES > COMPANY PROFILE>COMPANY PROMISE  > R&C

XK5032 vertical knee-type milling machine
