Home > Lights & Lighting > LED Outdoor Lighting > LED Street Light > 2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory

2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory

2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory photo-1
2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory photo-2
2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory photo-3
2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory photo-4

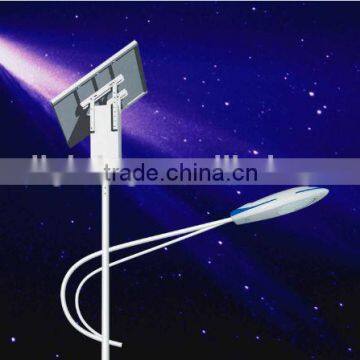

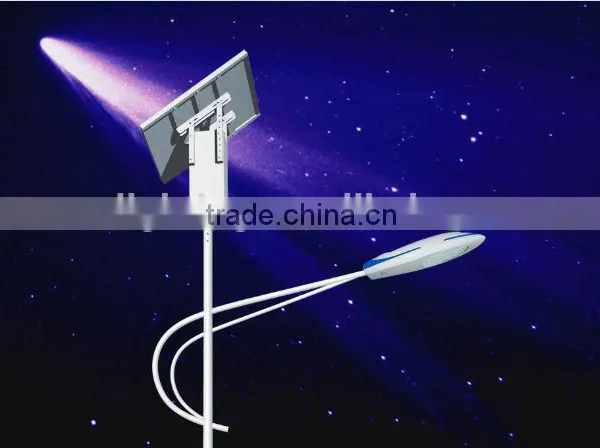

2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory photo-5

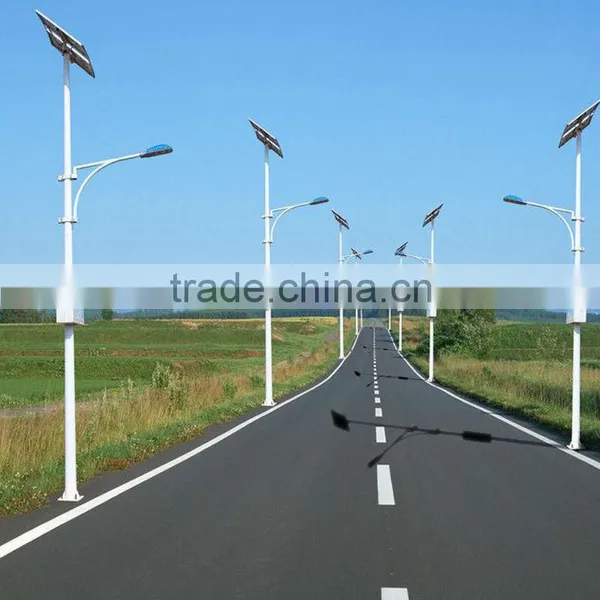

2015 Hot Selling Aluminum Solar Panel Led Street Light for Village Roads,park,factory photo-6
US$ 499 - 899 MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Cree/Philip
Input Voltage(V):
12V/24V DC 90-330V AC
Lamp Power(W):
50
Payment & Shipping
Payment Methods:
Port of Shipment:
zhongshan/shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Cree/Philip
Input Voltage(V) 12V/24V DC 90-330V AC
Lamp Power(W) 50
Lamp Luminous Flux(lm) 5500
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Pure White
Working Temperature(℃) -30, +50
Working Lifetime(Hour) 70000
Lamp Body Material Aluminum
IP Rating IP65
Certification CCC, CE, FCC, LVD, CE, FCC
Warranty(Year) 3
Place of Origin Guangdong, China
Brand Name ACR
Model Number ACR-SP100

    Aluminum solar panel led street light

Product Description

 2015 Hot selling Aluminum solar panel led street light for village roads,park,factory

                 Reference Configuration

Pole HeightLed LampSolar PanelGEL BatteryControllerWorking Time

4M

12V20W18V50W12V50AH24V10AH

10 hours per

night

3 continued

over cast and

raining days

5M12V25W18V70W12V70AH24V10AH
6M12V35W18V100W12V100AH24V10AH
7M12V50W18V120W24V60AH24V10AH
8M12V70W18V150W24V75AH24V10AH





                   Brife Specification



Model

ACR-SP100-50wSystem voltageDC12V/DC24V

Lamp Power

50WSolar Panel BrandSunpower

Led Chip

Cree/PhilipsSolar Panel Type mono-crystalline
Color Temperature2500k~7500KBattery TypeGEL



Width of Road

10 mHeight of Led Lamp7 m



Lamp Arrangement



Opposite  MountedLed Lamp Power50w



Work Time/day

10 hoursCapacity of Battery60Ah



Continuous Rainy Days

3 daysPower of Solar Panel130 w
Average Sunshine Time5 hoursPole Distance20 m
Wind Resistance27m/sLas for rainy/couldy days5~7days
Applicable around 6 hours valid sunshine time area





               Component parts

2015 Hot selling Aluminum solar panel led street light for village roads,park,factory

    2015 Hot selling Aluminum solar panel led street light for village roads,park,factory



   2015 Hot selling Aluminum solar panel led street light for village roads,park,factory



Solar  panel


C-SI Solar Panel and the lifespan is more than 15 years

Battery







Rechargeable Lead-acid Battery

Intelligent controller






Remote Intelligent Control that can read and set both work time and work style, and showing the work conditions of solar panel and battery. It also can remoted control the running status of LED lights according to the work sit need

Light source



CREE LED characterized by high luminous efficacy, high brightness, low depreciation, long life, etc.
ControllerRemote Control, Light Control, Time Control, Anti-overdischarge and Short-circuit Resistance
PoleSuperb carbon steel pole coated with hot-dip zinc and static apray treatment, anti-salted, anti-acid, weather and rust resistant
 Wokr timeLight Control Automatically. The main LED light turns on at dark in full brightness firstly and 4 hours later, then it turns off automotically. It works 5~7 cloudy and rainny days



  2015 Hot selling Aluminum solar panel led street light for village roads,park,factory





                More Light Head

            2015 Hot selling Aluminum solar panel led street light for village roads,park,factory







                Light Pole Production  2015 Hot selling Aluminum solar panel led street light for village roads,park,factory



            Multiple Type Pole

  2015 Hot selling Aluminum solar panel led street light for village roads,park,factory





         Installation and Application



 2015 Hot selling Aluminum solar panel led street light for village roads,park,factory




Company Information



Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales  of high quality LED outdoor light and indoor lights,  electronic energy-saving lamps, T4 / T5 tube light indoor  lamps and lanterns, total product more than hundred varieties.Company has engineers, senior technicians,and many other professional technology research and development staff and first-class production andtesting equipment, guarantee the production of high quality.Strong technical force, complete production  testing equipment and strict quality control process to ensure theproduct quality, won the trust of many  customers domestic and abroad.





Our Services

 1.Fast and High Qualtiy Service.

  •  Provide you rush  shipment.
  •  Respon within 24hours.Professional salesmen server you one to one.

2. After Sale Service



  •  We offer the preventative maintenance and after sales Service.From the first begining to the deal close, our service to support the whole process.
  • We will take the initiative to solve the problems and troubles after service.
  • We also offer 5 year warranty period.



3.Welcom to visit our factory anytime!

  •    We can provide IES/datasheet and other data materials if you need
  •    Don't hesitate to contact me, NOW!!!!    O(∩_∩)O
