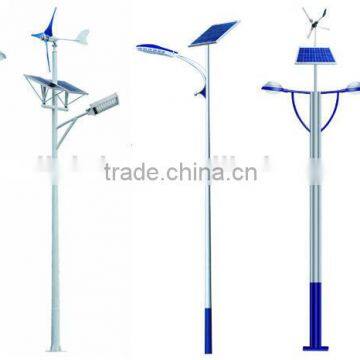

Wind solar 70W 24V led street lamp
Reference Configuration
| Pole Height | Led Lamp | Solar Panel | GEL Battery | Controller | Working Time |
4M |
12V20W | 18V50W | 12V50AH | 24V10AH |
10 hours per night 3 continued over cast and raining days |
| 5M | 12V25W | 18V70W | 12V70AH | 24V10AH | |
| 6M | 12V35W | 18V100W | 12V100AH | 24V10AH | |
| 7M | 12V50W | 18V120W | 24V60AH | 24V10AH | |
| 8M | 12V70W | 18V150W | 24V75AH | 24V10AH |
Brife Specification
Model |
ACR-SP100-70w | System voltage | DC12V/DC24V |
Lamp Power |
70W | Solar Panel Brand | Sunpower |
Led Chip |
Cree/Philips | Solar Panel Type | mono-crystalline |
| Color Temperature | 2500k~7500K | Battery Type | GEL |
|
Width of Road |
10 m | Height of Led Lamp | 8 m |
|
Lamp Arrangement
|
Opposite Mounted | Led Lamp Power | 70 w |
|
Work Time/day |
10 hours | Capacity of Battery | 75 Ah |
|
Continuous Rainy Days |
3 days | Power of Solar Panel | 130 w |
| Average Sunshine Time | 5 hours | Pole Distance | 15 m |
| Wind Resistance | 27m/s | Las for rainy/couldy days | 5~7days |
| Applicable | around 6 hours valid sunshine time area |
Component parts
| Solar panel |
C-SI Solar Panel and the lifespan is more than 15 years |
|
Battery
|
Rechargeable Lead-acid Battery |
|
Intelligent controller
|
Remote Intelligent Control that can read and set both work time and work style, and showing the work conditions of solar panel and battery. It also can remoted control the running status of LED lights according to the work sit need |
|
Light source
|
CREE LED characterized by high luminous efficacy, high brightness, low depreciation, long life, etc. |
| Controller | Remote Control, Light Control, Time Control, Anti-overdischarge and Short-circuit Resistance |
| Pole | Superb carbon steel pole coated with hot-dip zinc and static apray treatment, anti-salted, anti-acid, weather and rust resistant |
| Wokr time | Light Control Automatically. The main LED light turns on at dark in full brightness firstly and 4 hours later, then it turns off automotically. It works 5~7 cloudy and rainny days |
More Light Head
Light Pole Production
Multiple Type Pole
Installation and Application
Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales of high quality LED outdoor light and indoor lights, electronic energy-saving lamps, T4 / T5 tube light indoor lamps and lanterns, total product more than hundred varieties.Company has engineers, senior technicians,and many other professional technology research and development staff and first-class production andtesting equipment, guarantee the production of high quality.Strong technical force, complete production testing equipment and strict quality control process to ensure theproduct quality, won the trust of many customers domestic and abroad.
1.Fast and High Qualtiy Service.
- Provide you rush shipment.
- Respon within 24hours.Professional salesmen server you one to one.
2. After Sale Service
- We offer the preventative maintenance and after sales Service.From the first begining to the deal close, our service to support the whole process.
- We will take the initiative to solve the problems and troubles after service.
- We also offer 5 year warranty period.
3.Welcom to visit our factory anytime!
- We can provide IES/datasheet and other data materials if you need
- Don't hesitate to contact me, NOW!!!! O(∩_∩)O
Q: Are you a proofessional manufaturer?
A: Acecore technology co., LTD. after years of hard work, has formed a based on domestic and export oriented manufacturing enterprises.
Q:What is you main products?
A: LED street light,LED yard lights,LED high bay lights,flood lights,gas station lights
Q:Where are your main export markets?
A: Western Europe,Eastern Europe,North America,South America,Northern Europe and so on.
Q: You are not online how to find you?
A:Leave me a message,i will reply within 24hours;
Skype:acr-jessica
